VIAIR 275C Silver Air Compressor Kit, 150 PSI, 12V
Online Only
Item # 1383808
Add this item to unlock free delivery!
Neighbor’s Club Members earn points with purchases.
Add this item to unlock free delivery!
This item is available online only
Delivery to
Free standard delivery on online footwear & Clothing purchases of $49 and over.
Neighbor’s Club Members earn points with purchases.

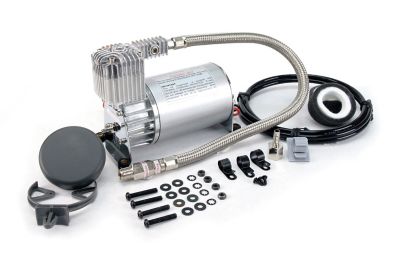

The Viair 275C Silver Compressor Kit includes a stainless steel braided leader hose with 1/4 in. NPT swivel male fitting hose end and rubber isolated mounting feet as well as insulated electric terminals. This 12-volt silver compressor kit has an amp draw of 18 amps. The included installation instructions and mounting hardware allow for simple set-up of the 275C silver compressor kit. The maximum working pressure of the silver compressor kit is 150 PSI.
For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.
Looking for more information on air compressors? Check out our air compressor FAQs in the product documents section.
- 150 PSI/ 2.03 cfm rating
- 12-volt 275C silver compressor kit
- Duty Cycle: 25% @ 100 PSI
- Max. working pressure of silver compressor kit: 150 PSI
- Max. air tank size of silver compressor kit: 2.5 gal.
- Thermal Overload Protector
- Check Valve
- Vibration Isolators
- Mounting hardware comes with 275C silver compressor kit for easy installation
- Stainless steel braided leader hose with 1/4 in. NPT swivel male fitting hose end, rubber isolated mounting feet and insulated electric terminals
- Air Line for Remote Mount Air Filter
- Remote Mount Air Filter Assembly
- Two Replacement Air Filter Elements
- Installation Instructions
- Permanent Magnetic Motor
- Max. 12V Amp Draw: 18 Amps
- Ingress Protection Rating: IP54
- Dimensions: 6.5 in. L x 3.5 in. W x 4.5 in. H
- Net Weight: 5.2 lb.
- Note: Use thread sealant for proper installation. Thread tape is not recommended. Properly sealed, recommended torque is 12 to 15 ft. lb.
| Brand | VIAIR |
|---|---|
| Country of Origin | Imported |
| Airflow Volume | 2.03 CFM |
| Air Outlet Size | 1/4 in. NPT |
| Amperage | 18A |
| Compressor Horsepower | 0.25 HP |
| Compressor Maximum PSI | 150 PSI |
| Compressor Tank Capacity | 2.5 gal |
| Compressor Voltage | 12V |
| Cord Length | 1 ft. |
| Drain System | None |
| Drive Type | DC |
| Features | Hose Included, Oil Free Compressor |
| Hose Fitting Size | 1/4 in. NPT |
| Number Of Power Speeds | Single |
| Number Of Wheels | 0 |
| Power Type | 12 Volt |
| Primary Color | No Color |
| Primary Material | Aluminized steel |
| Product Height | 8 in. |
| Product Length | 9 in. |
| Product Weight | 5.20 lb. |
| Product Width | 6.0 in. |
| Pump Material | Steel |
| Stage Type | N/A |
| Tank Fill Time | 4 minutes 30 seconds |
| Tank Style | Horizontal |
| Warranty | Https://www.viaircorp.com/warranty |
| Manufacturer Part Number | 27520 |
