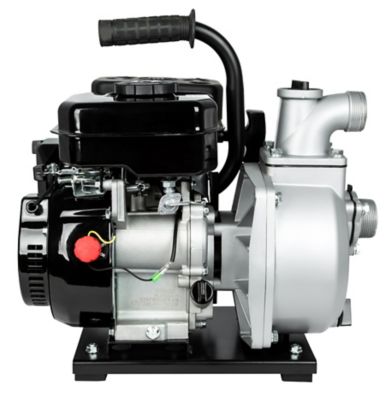

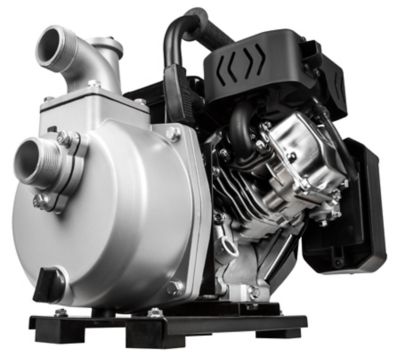

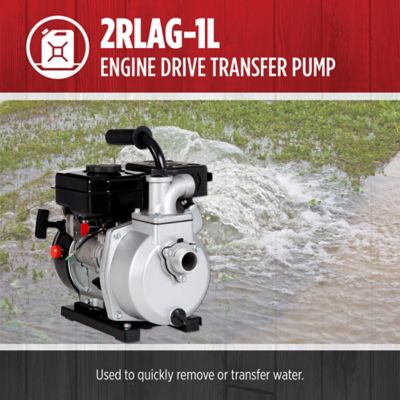

Red Lion 2.4 HP Engine Driven Water Pump, CARB Compliant, 617031

Product Rating is 4.1
 4.1  (59)
SKU: 102306999
Enter Zip Code for price More Info

Sale Save Up To

See price at checkout
Pricing Display Information

Financing Available Learn More

Protect your purchase with Power Plus

Protect Your Purchase

We'll fix it, replace it, or reimburse you for it.

Learn More

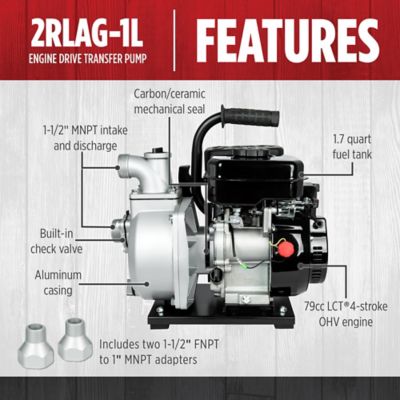

Portable Aluminum Water Transfer Pump

  • Durable cast iron semi-open style impeller
  • Lighweight Aluminum construction with base and handle for portability
  • Self priming up to 25 feet suction lift
  • Built in check valve
  • EPA Certified
  • Includes 1" adapter

Ideal for general purpose use where portability is required such as liquid transfer and contractor de-watering applications.

Additional Product Information
The quantity requested exceeds available inventory.
Store:Holton KS Change Store
Please lower quantity or check availability at nearby stores
Check availability at nearby stores
Call Store for availability or check availability at nearby stores
Curbside / Pickup In Store
holton KS Change Store
Items Shipped to Store may incur freight charge.
 Available for Pickup Today
Check availability at nearby stores

Curbside / Pickup In Store

holton KS Change Store Item is currently not available for Pickup at this store. Check availability at nearby stores

Standard Delivery

Item is not eligible for Standard Delivery.

Standard Delivery

Item is currently not available for Standard Delivery. Check other delivery options.

Same Day Delivery

Item is currently not available for Same Day Delivery. Check other delivery options.
Curbside / Pickup and Delivery Information Click here for more details...
Add to list

Product Details

Portable Aluminum Water Transfer Pump

  • Durable cast iron semi-open style impeller
  • Lighweight Aluminum construction with base and handle for portability
  • Self priming up to 25 feet suction lift
  • Built in check valve
  • EPA Certified
  • Includes 1" adapter

Ideal for general purpose use where portability is required such as liquid transfer and contractor de-watering applications.

Specifications

Specification Description
Minimum Operating Pressure 0
Valve Inlet Type Steel
Valve Outlet Diameter 25 milimeter
Outlet Diameter 1.5 in.
Motor Type Air Cooled 4 Stroke
Product Height 17.75 in.
Suction Port 1.5 in.
Country of Origin Imported
Valve Inlet Diameter 27 milimeter
Engine Brand LCT
Engine Displacement 79cc
Discharge Port 1.5 in.
Product Weight 43 lbs
Compatible Pipe Material N/A
Power Type Gas
Maximum Flow Rate 60 GPM
Part Number 617031
Product Length 14 in.
Type Water Transfer Pump
Inlet Diameter 1.5 in.
Housing Material Aluminum
Maximum Operating Pressure 34 PSI
Special Feature(s) Includes 1 in. adapter
Hose Diameter 1.5 in.
Brand Red Lion
Operating Temperature Range 32 - 104 deg. F
Voltage N/A
Valve Outlet Type Steel
Product Width 20.75 in.
Manufacturer Part Number 617031

Reviews

Red Lion 2.4 HP Engine Driven Water Pump, CARB Compliant, 617031 is rated 4.1 out of 5 by 59.
Rated 1 out of 5 by from SUCKS Worst investment ever my water hose gives out more water than that Dam water pump don't recommend to anybody
Date published: 2020-07-25
Rated 3 out of 5 by from Good short term pump Works great when new. Not a long lasting product. Have bought several as they fill a specific job need but rarely do the ever last a full year.
Date published: 2020-03-19
Rated 5 out of 5 by from Pump Points Great little pump for the price. Bought it to jet down 6x6 pilings on water front to build retaining wall to combat erosion of bluff from wave action. Note that this pump is for clear water (which was not an issue for me as the lake bottom is rock and the sand was not an issue. Once set up and primed, the unit started on third pull on choke. Had to use the choke or half choke on subsequent starts on occasion. Used 1-1/4" suction and 1" discharge with 5/8" garden hose to the "stinger" when jetting. Worked OK, but will use shorter length of 3/4" hose for stinger next time. The pump is well made for the price and provided adequate flow for my project. Could have used a bigger pump but portability was an issue. All in all, I was satisfied. As a note: Remember that this is a clear water pump, so don't try to pump sediment through it or you'll be buying a re-build kit. You can prevent that by proper placement of your suction strainer above sand and sediment.
Date published: 2019-10-28
Rated 5 out of 5 by from Works great We put it on a water tank to water the arena it was wonderful. Worked perfect.
Date published: 2019-08-14
  • y_2020, m_9, d_27, h_15
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.12
  • cp_1, bvpage1
  • co_hasreviews, tv_20, tr_39
  • loc_en_US, sid_102306999, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_tractorsupply
  • bvseo_sdk, java_sdk, bvseo-4.0.0
  • LOCAL, getContent, 3ms
  • REVIEWS, PRODUCT

Questions & Answers

Where can i get parts for this pump? Carburator and impeller parts or shims mine is not pumping

Asked by: Jons87
Please call me at 888-956-0000 for replacement parts for your 617031 Engine Powered transfer Pump.
Answered by: Red Lion Product expert
Date published: 2018-10-08

Just purchased the 2.4 hp red lion pump to fill a pond and irrigate a garden,the water source is about 100 ft from pump .Bo I need to fill in coming pipe before starting pump?

Asked by: Mikepannell13
Thank you for your question regarding Red Lion transfer pumps. You will need to prime the pump before use by filling the suction side of the pipe with water. Be sure to add a foot valve or check valve at the end of the pipe in the water. For more information please don't hesitate to call me at Red Lion Tech support at 888-956-0000.
Answered by: Red Lion Product expert
Date published: 2018-06-13

I'm loosing prime somehow. Pump runs great but it just won't pump water out of well. Well is 30-50' deep and about 8-10' down to surface. What is proper way to prime pump because I'm doing what instructions say to do. Suggestions before I return pump?

Asked by: BD72
If the pump is losing prime try checking the distance to water. It should be less than 20' vertical. Check your suction pipe for leaks or air pockets. It may also take a minute or two to prime if the water is near the maximum distance. There is a built in check valve but the pump will still need to self prime the suction hose. If you still have trouble please contact our tech team hotline at 888-956-0000. They should be able to walk you through any required troubleshooting.
Answered by: Red Lion Product expert
Date published: 2017-06-22

I am searching for a pump that I can use for spraying chemicals. If I hard pipe a small return back into the suction can I use intermittently with spray nozzle?

Asked by: daledem
Thank you for your question about Red Lion Engine powered Pumps. Aluminum pumps are designed to pump water and will not last long spraying chemicals. For chemicals you will want to try a Poly Pump with a plastic impeller. For more information and pump sizing please contact our tech support tem at 888-956-0000.
Answered by: Red Lion Product expert
Date published: 2018-03-09

1. Can it pull water horizontally about 300 feet from the source and disperse it horizontally about 200 feet? I would reduce pipe size on inflow and outflow to 3/4 inch. 2. Problems with pressure to maintain it in a water hose for a drip line?

Asked by: Sandy Loam Gardens
Thank you for your question about Red Lion Engine Driven pumping systems. This pump is capable of pulling water horizontally 300 feet as long as there is no appreciable elevation change. Dispersal of 200 feet is within the capabilities of the pump. Anytime the suction pipe is longer than 50’ it should be increased to the next size up. Pressure from the pump will be constant and work in your 3/4" garden hose drip line. Feel free to call our tech support for more information. 888-956-0000.
Answered by: Red Lion Product expert
Date published: 2017-02-21

In the details it specifies 3960 GPH which equates to around 66 GMP yet in one of the answered questions you say it will only pump about 25 GPM so i'm confused to how many gallons per minute it will actually pump through a one inch line.

Asked by: Chad27
Thank you for your question regarding Red Lion Engine Powered Transfer Pumps. The 2RLAG-2L will pump up to 60GPM or 3,600 GPH through a 1.5 inch discharge. Factors can affect the volume such as discharge pipe size or distance from water on suction side. Please contact our tech support team at 888-956-0000 for additional sizing information.
Answered by: Red Lion Product expert
Date published: 2018-10-21

What is the lifting height of this pump?

Asked by: PeterC
The suction lift of this Engine Drive water pump is 20 feet.
Answered by: Red Lion Product expert
Date published: 2017-01-10

How many psi does this pump put out?

Asked by: robert01
Thank you for your question regarding Red Lion engine drive transfer pumps. The max PSI on this 2.4 HP unit is 34 PSI.
Answered by: Red Lion Product expert
Date published: 2016-10-03
  • y_2020, m_9, d_27, h_15CST
  • bvseo_bulk, prod_bvqa, vn_bulk_3.0.12
  • cp_1, bvpage1
  • co_hasquestionsanswers, tq_18
  • loc_en_US, sid_102306999, prod, sort_[SortEntry(order=FEATURED, direction=DESCENDING)]
  • clientName_tractorsupply
  • bvseo_sdk, java_sdk, bvseo-4.0.0
  • LOCAL, getContent, 4ms
  • QUESTIONS, PRODUCT

Documents

Attachments (  1 - 2 of 2  )
pdf Red Lion 617031 Brochure 1
pdf Red Lion 617031 Manual 1
