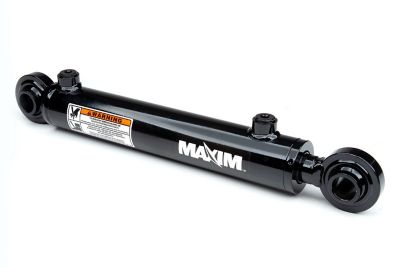

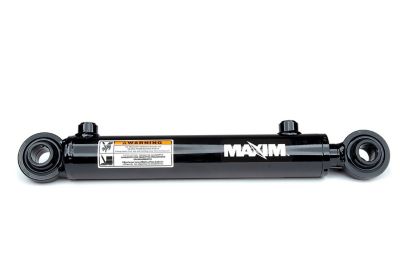

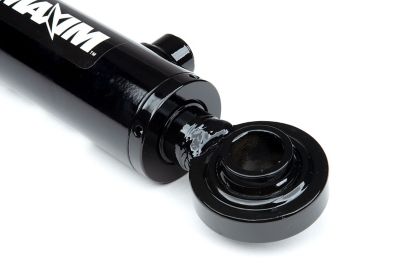

Maxim 2 in. Bore x 20 in. Stroke WSB Swivel Ball Welded Cylinder, 1.25 in. Rod Diameter

  • Online Only

Maxim 2 in. Bore x 20 in. Stroke WSB Swivel Ball Welded Cylinder, 1.25 in. Rod Diameter

Item # 1307810

Maxim Maxim 2 in. Bore x 20 in. Stroke WSB Swivel Ball Welded Cylinder, 1.25 in. Rod Diameter
Maxim Maxim 2 in. Bore x 20 in. Stroke WSB Swivel Ball Welded Cylinder, 1.25 in. Rod Diameter
$199.99
or
or

Neighbor's Club logo
Neighbor’s Club Members earn points with purchases.

Sign in or Join Now

  • Online Only

Maxim 2 in. Bore x 20 in. Stroke WSB Swivel Ball Welded Cylinder, 1.25 in. Rod Diameter

Item # 1307810

Maxim Maxim 2 in. Bore x 20 in. Stroke WSB Swivel Ball Welded Cylinder, 1.25 in. Rod Diameter
Maxim Maxim 2 in. Bore x 20 in. Stroke WSB Swivel Ball Welded Cylinder, 1.25 in. Rod Diameter

$199.99
or
or
financeCard Logo
$34/mo.†  suggested payments with 6 Months Financing or earn $9 in Rewards+ on this purchase.

This item is available online only

Delivery to

Free standard delivery on online footwear & Clothing purchases of $49 and over.

Neighbor's Club logo
Neighbor’s Club Members earn points with purchases.

Sign in or Join Now

The Maxim 2 in. Bore x 20 in. Stroke WSB Swivel Ball Welded Cylinder features swivel ball mounts, which make it great for use on compact equipment. This swivel ball hydraulic cylinder is designed for demanding applications and is built to ensure maximum reliability and performance. Made for versatility, this hydraulic cylinder is designed for use in any double-acting applications.Note: This product may require up to 2 additional days for order processing prior to shipping

For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.

  • Intended use of swivel ball hydraulic cylinder: double-acting applications
  • Piston: ductile iron
  • Piston lock nut: nylock nut
  • Gland: ductile iron with rod wear band
  • Tube: steel tube honed or skived for extended seal life
  • Tube seal: O-ring and backup
  • Rod: ground and polished hard chrome-plated rod
  • Rod seal: U-cup
  • Wiper: polyurethane
  • End mounts: spherical
  • All seals are manufactured to US specifications
  • Ports: O-ring boss
  • Hydraulic cylinder measures 27.5 in. retracted and 47.5 in. extended
  • Column load: 9420 lb.
  • Max PSI: 3,000
  • Pin diameter of 1 in. and rod diameter of 1.25 in.
  • 1 year warranty

Q&As

1 - 1 of 1 Question

Q: stroke is the pin to pin distance when closed or how far the ram extenze ?

6 years ago
1 Answer
  • A: The stroke is the pin to pin distance when fully open.
    6 years ago
