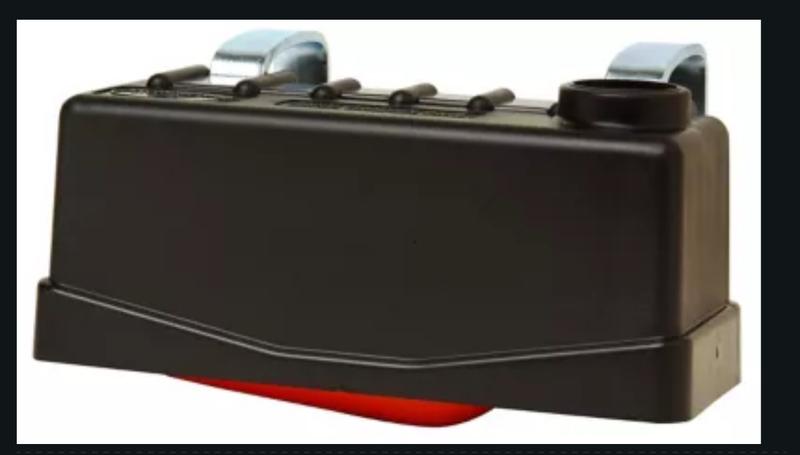

Little Giant Trough-O-Matic Float Valve, Plastic, TM825

SKU: 217032299
Little Giant Trough-O-Matic Float Valve, Plastic, TM825
Enter Zip Code for price More Info
Product price

Save Up To
See price at checkout More Info
Product Rating is 4.3
4.3
 (41)
Write a review

Quantity

TSC of  #

,
TSC of  #

,
TSC of  #

,
TSC of  #

,
Check Availability at Other Stores
Standard Delivery Not Available to
Notice: This item will ship within 0 days.
This product may require up to 0 additional days for order processing prior to shipping.
Change Delivery Location

Item Information

Little Giant Trough-O-Matic Float Valves automatically control the water level for most plastic and metal stock tanks, troughs, barrels, and pans. The all-plastic valve flows up to 245 gallons per hour and operates at pressure between 20 and 50 psi. The popular rugged plastic housing is molded from high-grade polystyrene for added strength and durability. Accepts a standard 3/4 inch garden hose. Measures 7.5 inch long by 3 inch wide by 3.5 inch high. Also available in aluminum housing (Item No. TM830, sold separately).

  • Float Valve automatically controls water level for most plastic and metal stock tanks, troughs, barrels, and pans
  • Flows up to 245 gallons per hour, operates between 20 and 50 psi
  • High-grade polystyrene housing
  • Accepts a standard 3/4 inch garden hose
  • Also available in aluminum housing (Item No. TM830, sold separately)

Specification Description
Product Width: 7.5
CountryofOrigin: Made in USA
Maximum PSI: 20 - 50 PSI
Material: Plastic & Metal
Maximum Flow Rate: 245 gal. per hour
Brand: Little Giant
Product Length: 3
Animal Compatibility: Livestock or Equine
Part Number: TM825
Capacity: N/A
Life Stage: Any
Compatibility: Little Giant parts only
Product Weight: 1.08
Product Height: 3.5
Minimum PSI: 20
Finish: N/A
Special Feature(s): None
Manufacturer Part Number TM825
Little Giant Trough-O-Matic Float Valve, Plastic, TM825 is rated 4.3 out of 5 by 41.
Rated 4 out of 5 by from Works good, assembly easy. Worked really well but I have longhorns and they can be rough on things so I ended up changing to the metal version.
Date published: 2019-09-15
Rated 4 out of 5 by from Happy Cows can enjoy fresh drink of water! Good product and simple to install. Works very good!
Date published: 2019-09-03
Rated 5 out of 5 by from Easy to install - Works Great This float is super easy to install and is working great so far. Instead of having to fill the stock tank every day I simply need to look at it and ensure the float is working properly. So far no issue. Has made life much easier.
Date published: 2019-08-20
Rated 1 out of 5 by from Not worth the effort This has a rubber gasket to shut off the water and not an actual valve. Its rated for low pressure for this reason but to me its not worth the money and can't be trusted. I don't want to waste water and my place is to big to check it every day. I will spend the money and get one that's an actual cutoff valve.
Date published: 2019-08-12
  • y_2020, m_1, d_19, h_12
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.4
  • cp_1, bvpage1
  • co_hasreviews, tv_14, tr_27
  • loc_en_US, sid_217032299, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_tractorsupply
  • bvseo_sdk, java_sdk, bvseo-4.0.0
  • LOCAL, getContent, 4ms
  • REVIEWS, PRODUCT

Does a stock tank have to be level for this float valve to work properly?

Asked by: MorMor
The stock tank should be level for the TM825 to work properly. Water pressure, water quality and the amount of times the waterer is cycling will play into how often the rubber seat will need to be rotated. - The higher the water pressure, the faster it will start to break down the rubber material. It is concentrated in the one location. Very similar to how a power washer works. If the pressure is over 50 psi, it may not seal at all or be very inconsistent. - If the water has high mineral content, it can start to buildup on the orifice and not allow it to seal as needed around the rubber seat. It should be cleaned on a regular basis with soap, water and a soft cloth. Harsh chemicals or abrasive brush type cleaners will breakdown the plastic. - Cycling of the float up and down onto the orifice will eventually start to leave an indention in the rubber material. Over time this will start to get too deep and not seal properly. The rubber seat will need to be rotated more often if they have a lot of animals drinking down the water level.
Answered by: CodyP
Date published: 2019-08-08

Will this float from a gravity fed water tank? Thanks

Asked by: Greenbeer
Gravity fed will work, the only thing will be that the refill time will take longer.
Answered by: CodyP
Date published: 2019-07-25

Can I hook a 3/4" garden hose to it?

Asked by: Corey77
Yes, it accepts a standard 3/4" garden hose.
Answered by: DanielB
Date published: 2019-11-07

Will the low pressure of a rain barrel be enough to operate with this item?

Asked by: TeresasChix
Yes
Answered by: MatthewL
Date published: 2019-05-22

Will these fit on a Hastings poly tank? It has an extended lip on the top.

Asked by: Gregfreeman1108
No this product will not work on the extended lip. Per the manufacturer TM825T should work fine as the mounting brackets are are adjustable to fit anything from 2” thick to and 4.325” wide.
Answered by: CodyP
Date published: 2018-07-17

Can this be used in a small oblong galvanized tub for dog water?

Asked by: Henpen
Yes, this will work fine for that purpose. As long as the tub has somewhat of a straight edge it should mount easily.
Answered by: DanielB
Date published: 2017-07-21
