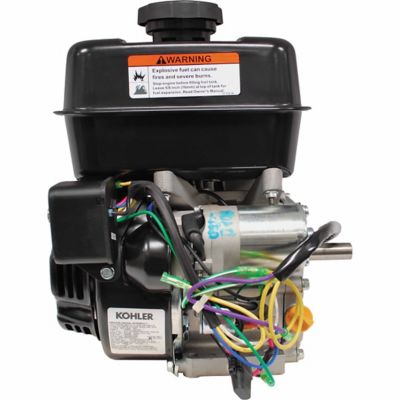

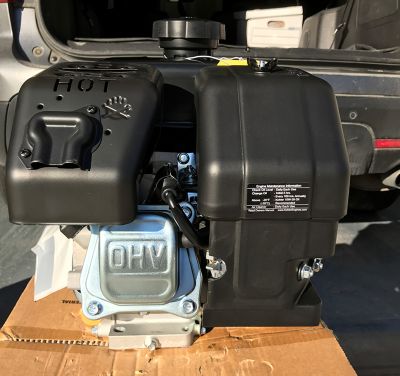

Kohler-Rehlko SH Series 6.5 HP Engine 3/4 in. Crankshaft, Recoil Start, 10A Charging
Online Only
Kohler-Rehlko SH Series 6.5 HP Engine 3/4 in. Crankshaft, Recoil Start, 10A Charging
Item # 1207681
$549.99
or
or
Add this item to unlock free delivery!
Notice:
This Item cannot be shipped to CA.Add a protection plan
Powersport plans are not available in CA & MD.
Neighbor’s Club Members earn points with purchases.
Online Only
Kohler-Rehlko SH Series 6.5 HP Engine 3/4 in. Crankshaft, Recoil Start, 10A Charging
Item # 1207681
$549.99
or
or
$46/mo.† suggested payments with 12 Months Financing or earn $27 in Rewards+ on this purchase.
Add this item to unlock free delivery!
This item is available online only
Delivery to
Free standard delivery on online footwear & Clothing purchases of $49 and over.
Notice:
This Item cannot be shipped to CA.Add a protection plan
Powersport plans are not available in CA & MD.
Neighbor’s Club Members earn points with purchases.
Experience the power of Kohler-Rehlko with this engine. This Kohler-Rehlko 6.5 HP Engine has a 0.75 in. diameter and 2.42 in. PTO length and tapped 5/16-24 UNF crankshaft. Complete with a recoil, electric start with key box and 10 A charging station, this Kohler-Rehlko Utility engine has it all. Add this Kohler-Rehlko engine to your gear supply today.2 years
For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.
Looking for more information on lawn mower maintenance? Check out our guide on lawn mower maintenance in the product documents section.
- Overhead valve design
- Variable speed
- Electronic ignition
- Dual element air cleaner (unless otherwise mentioned)
- Dual oil fill locations and oil drains
- Carb Tier III, EPA phase 3 and RFI compliant
- Cast iron cylinder liner
- 3.3 L. metal fuel tank with strainer
- Fuel shut-off valve (unless otherwise mentioned)
- Engine mounted throttle and choke controls, remote throttle ready
- Oil sentry switch installed (no light)
- Dual ball bearings, PTO and flywheel
- Engine has metal blower housing
- Engine has index-able recoil starter
- PTO face included with Kohler-Rehlko this SH265 engine
- For engines with SAE crankshaft with 3.625 in. (92.08 mm) diameter (4 and 1 holes) 5/16-24 UNF-2B thread
- Large capacity muffler with heat shield
- Multi-lingual owner's manual included
- Black with cast aluminum
| Brand | Kohler-Rehlko |
|---|---|
| Country of Origin | Imported |
| Brand Compatibility | Universal |
| Engine Displacement | 196cc |
| Engine Make | Kohler |
| Engine Type | 4-cycle |
| Features | CARB Compliant |
| Fuel Capacity | 3.3 L |
| Fuel Type | Gasoline |
| Horsepower | 6.5 HP |
| Model Compatibility | Universal |
| Oil Capacity | 0.6 qt. |
| Orientation | Horizontal |
| Product Type | Mower Engines |
| Primary Material | Aluminum |
| Product Height | 14.6 in. |
| Product Length | 9.9 in. |
| Product Weight | 35.3 lb. |
| Product Width | 14.5 in. |
| Recommended Oil Type | Kohler 10W-30 |
| Warranty | 2 Year |
| Manufacturer Part Number | PA-SH265-3031 |
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 6 of 6 Questions
Newest questions
Q: Looking for carb gaskets
a year ago1 Answer
- A: Hello, thank you for your question. We would recommend reaching out to Kohler directly to replace this part. ***Kohler*** https://www.engines.rehlko.com/service-parts https://www.engines.rehlko.com/contact +1-800-544-2444a year agoHelpful?
Q: How to install and use the electric ignition that comes with it? There is absolutely nothing available on the separate coil that must mount somewhere and how to actually use the ignition.
5 years ago1 Answer
- A: We would recommend reaching out to Kohler, as they will have far more in depth knowledge about this product. Kohler's Gas Engine Customer Service Team can be reached at 800-544-2444.5 years agoHelpful?
Q: I have a log splitter with a 5hp Briggs and Stratton engine, will the 6.5 hp Koehler work on the splitter, will it need adapters?
5 years ago1 Answer
- A: For engines with SAE crankshaft with 3.625 in. (92.08 mm) diameter (4 and 1 holes) 5/16-24 UNF-2B thread.5 years agoHelpful?
Q: I currently have a Kohler. 6.5 engine on a 22 ton Dirty Hand Tools log splitter that I'd like to replace with this motor with the electric start option. Will this motor be an exact fit/replacement? Also, do you have the battery for this and battery box?
6 years ago1 Answer
- A: We would recommend reaching out to Kohler, as they will have far more in depth knowledge about the two engines. Kohler's Gas Engine Customer Service Team can be reached at 800-544-2444.6 years agoHelpful?
Q: Replacement engine for a Tecumsch 6 HP. Will the mounting bolt be the same spacing for a Kohler SH265 6.5 HP engine.
9 years ago1 Answer
- A: They should be. If the Tecumseh is really old you might have to drill a couple of new holes.9 years agoHelpful?
Q: Can this engine be used as a direct replacement for a Briggs and Stratton model number: 35202 type: 1259E1
9 years ago1 Answer
- A: This has the same foot print and crankshaft height as a standard Briggs. This one has electric start as an option. There also is a standard recoil start. It will replace most standard Briggs engines less than 6.5hp.9 years agoHelpful?
Q&As
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 6 of 6 Questions
Newest questions
Q: Looking for carb gaskets
a year ago1 Answer
- A: Hello, thank you for your question. We would recommend reaching out to Kohler directly to replace this part. ***Kohler*** https://www.engines.rehlko.com/service-parts https://www.engines.rehlko.com/contact +1-800-544-2444a year agoHelpful?
Q: How to install and use the electric ignition that comes with it? There is absolutely nothing available on the separate coil that must mount somewhere and how to actually use the ignition.
5 years ago1 Answer
- A: We would recommend reaching out to Kohler, as they will have far more in depth knowledge about this product. Kohler's Gas Engine Customer Service Team can be reached at 800-544-2444.5 years agoHelpful?
Q: I have a log splitter with a 5hp Briggs and Stratton engine, will the 6.5 hp Koehler work on the splitter, will it need adapters?
5 years ago1 Answer
- A: For engines with SAE crankshaft with 3.625 in. (92.08 mm) diameter (4 and 1 holes) 5/16-24 UNF-2B thread.5 years agoHelpful?
Q: I currently have a Kohler. 6.5 engine on a 22 ton Dirty Hand Tools log splitter that I'd like to replace with this motor with the electric start option. Will this motor be an exact fit/replacement? Also, do you have the battery for this and battery box?
6 years ago1 Answer
- A: We would recommend reaching out to Kohler, as they will have far more in depth knowledge about the two engines. Kohler's Gas Engine Customer Service Team can be reached at 800-544-2444.6 years agoHelpful?
Q: Replacement engine for a Tecumsch 6 HP. Will the mounting bolt be the same spacing for a Kohler SH265 6.5 HP engine.
9 years ago1 Answer
- A: They should be. If the Tecumseh is really old you might have to drill a couple of new holes.9 years agoHelpful?
Q: Can this engine be used as a direct replacement for a Briggs and Stratton model number: 35202 type: 1259E1
9 years ago1 Answer
- A: This has the same foot print and crankshaft height as a standard Briggs. This one has electric start as an option. There also is a standard recoil start. It will replace most standard Briggs engines less than 6.5hp.9 years agoHelpful?
Similar Items
-
-
Top Rated
-
Top Rated
-
-
Top Rated
-
-
-
Top Rated
-
Top Rated
-
-
-
Items You May Like
Reviews
1 to 4 of 6 Reviews .
1 – 4 of 6 Reviews
Most Recent
Battle Creek, MI
Review 1
5 out of 5 stars.
I wanted electric start to save my shoulder
5 months ago
I purchased this to replace the non-electric start engine with an electric start version. I am impressed with how easily it now starts. Installation on the 25 ton Countyline log splitter I installed it on did require new holes on the mounting shelf of the splitter to move it over a few inches. Past that, there were no wiring diagrams online or in manuals for it, although one I found a YouTube video on Kohler engine color codes for electrical wires, it was easier. I am very pleased with the product.
SweepstakesYes
Yes, I recommend this product.
Review 1
2 out of 5 stars.
review for Kohler sh 6.5 motor only
10 months ago
I didn't buy my kohler sh series 196cc 6.5hp engine at tractor supply but am currently replacing it after 3 log splitting seasons. this motor has been near impossible to start if the weather is below freezing since new, internet concensus is try to get your spitting done early. when you tow it around or move it the carb float sticks open leaking gas on the ground and filling the cylinder with fuel causing hydro lock requiring spark plug removal to allow the engine to turn over and disassemble of float bowl to fix float. the muffler has a sharp note and developed cracks in the muffler can in 3 seasons. just my two cents John
Novi michigan
Review 1
5 out of 5 stars.
Fast shipping
3 years ago
Exact replacement and works perfectly, fast shipping
Sweepstakes EntryYes
Yes, I recommend this product.
CA
Reviews 2
5 out of 5 stars.
New life for an old go-kart
5 years ago
I purchased this to replace an obsolete Tecumseh OHH65 on a go-kart for my grandkids. I didn't know at the time that this model is discontinued by Kohler as well but did receive a new engine. There base bolt pattern was the same so it wasn't a major job to fit it. The engine starts easily and runs well.
Yes, I recommend this product.
