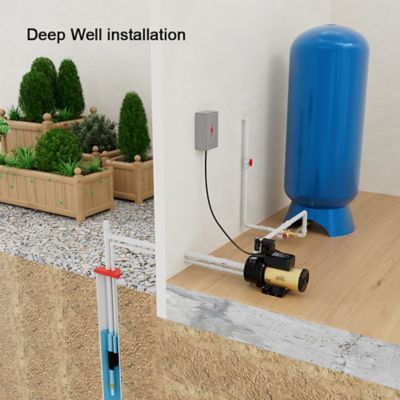

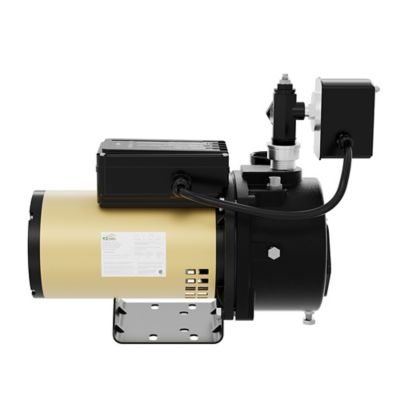

The K2 Pumps 3/4 HP Convertible Jet Pump is constructed of heavy-duty cast iron. Convertible jet pumps can be used in both shallow well or deep well applications. The pump is installed above ground for shallow wells with depth to water from 0' to 25', or deep wells up to 90'. The pump delivers up to 20 GPM at 0' of lift, with a maximum pressure shut off at 70 PSI. Includes the ejector kit and pressure regulator.
For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.
- Deep well application for water at depths up to 90'
- LED Diagnostics Panel indicates operation status
- Flow rate of 20 GPM at 0' of lift.
- Heavy-duty, dual voltage 115/230V motor, preset at 230V
- Certified Lead-Free to NSF/ANSI/CAN 61, and NSF/ANSI 372
- Pre-installed pressure gauge, and 30/50 pressure switch
- Includes Ejector kit and pressure regulator
- 1-1/4 in. NPT Suction and 1 in. NPT Discharge
- 3 Year Warranty
| Brand | K2 Pumps |
|---|---|
| Country of Origin | Imported |
| Amperage | 15.8 A/7.9 A |
| Body Material | Cast iron |
| Compatible Pipe Material | PVC |
| Compatible Well Diameter | 0 N/A |
| Discharge Connection | Threaded Female |
| Discharge Diameter | 1 in. |
| Discharge Rate at 0 ft. | 20 GPM |
| Discharge Rate at 25 ft. | 9 GPM |
| Discharge Rate at 50 ft. | 5.1 GPM |
| Features | 115/230 Dual voltage motor, preset at 230V |
| Horsepower | 3/4 HP |
| Impeller Material | Thermoplastic |
| Inlet Connection | Threaded Female |
| Inlet Diameter | 1-1/4 in. |
| Maximum Flow Rate | 20 GPM |
| Maximum Head Lift | 90 ft. |
| Maximum Operating Depth | 90 ft. |
| Maximum Operating Temperature | 104 deg. |
| Minimum Operating Temperature | 32 deg. |
| Power Type | Electric |
| Product Height | 13 in. |
| Product Length | 7.2 in. |
| Product Weight | 47.3 lb. |
| Product Width | 18.1 in. |
| Motor Type | CSIR |
| Voltage | 115v/230v |
| Warranty | 3 Year |
| Manufacturer Part Number | WPD07502K |
