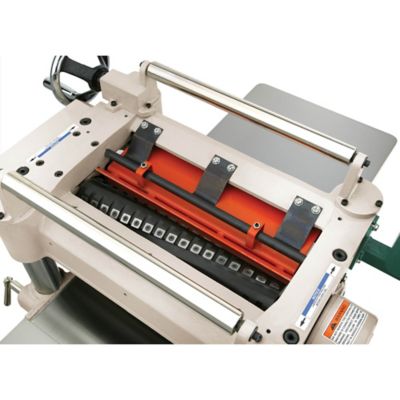

Using the G1021X2 3 HP Planer will save time and effort by quickly flattening and smoothing rough lumber. The G1021X2 features a 15", 4-row helical cutterhead complete with 52 indexable inserts that can each be rotated three times to expose new, sharp cutting edges. The indexable carbide inserts are positioned along a helical pattern with the cutting edges at a slight angle to the workpiece. This angle allows for smooth shearing cuts, minimized tearout, a smoother finish, and operating at lower noise levels. The G1021X2 features a powerful 230-volt, 3 horsepower motor to power through cuts up to 3/32" deep at full width or 1/8" deep on material up to 6" wide. Plane material from 3/16" to 6" thick with ease and choose between either 16 or 28 feet per minute feed rates for the perfect finish.
The precision-ground cast-iron table travels smoothly up and down on the heavy-duty 4-column supports and can be firmly locked in place for operation. The G1021X2 offers additional features such as extra-large ball bearing return rollers, a large side-mounted handwheel, cabinet-style stand, pedestal-mounted control panel, magnetic switch with thermal overload protection and powder coated paint for years of protection.

• Motor: 3 HP, 230V, single-phase, 12A
• Maximum stock width: 15"
• Maximum stock thickness: 6-1/8"
• Minimum stock thickness: 3/16"
• Minimum stock length: 6"
• Maximum cutting depth: 1/8"
• Cutterhead type: 4-row helical, 52 inserts
• Insert size, type: 15mm x 15mm x 2.5mm, indexable carbide
• Cutterhead speed: 5000 RPM
• Feed rate: 16, 28 FPM

The manual was written by our U.S.-based Technical Documentation Department and is packed with useful information. The complete and easy-to-read manual makes it easier to assemble and maintain your machine. The Customer Service and Technical Support Teams are also U.S.-based. Parts for this machine may be available online and shipped from the parts warehouse in Springfield, MO.
