Fimco 45 gal. 4-Nozzle 12 V Trailer Sprayer

4.3

(26 Reviews)

|

Item # 2336860

$849.99
A woman outside with a dog
A woman outside with a dog

Fimco 45 gal. 4-Nozzle 12 V Trailer Sprayer

Fimco 45 gal. 4-Nozzle 12 V Trailer Sprayer
4.326 Reviews

Item # 2336860

Image showing  45 gal. 4-Nozzle 12 V Trailer Sprayer
Image showing  45 gal. 4-Nozzle 12 V Trailer Sprayer
Image showing  45 gal. 4-Nozzle 12 V Trailer Sprayer
Image showing  45 gal. 4-Nozzle 12 V Trailer Sprayer
Image showing  45 gal. 4-Nozzle 12 V Trailer Sprayer
Image showing  45 gal. 4-Nozzle 12 V Trailer Sprayer
Image showing  45 gal. 4-Nozzle 12 V Trailer Sprayer
Image showing  45 gal. 4-Nozzle 12 V Trailer Sprayer
Image showing  45 gal. 4-Nozzle 12 V Trailer Sprayer
Image showing  45 gal. 4-Nozzle 12 V Trailer Sprayer
$849.99
or
or

Add a protection plan
What's included
Powersport plans are not available in CA & MD.
Neighbor's Club logo
Neighbor’s Club Members earn points with purchases.

Sign in or Join Now

Fimco 45 gal. 4-Nozzle 12 V Trailer Sprayer
4.326 Reviews

Item # 2336860

Image showing  45 gal. 4-Nozzle 12 V Trailer Sprayer
Image showing  45 gal. 4-Nozzle 12 V Trailer Sprayer
Image showing  45 gal. 4-Nozzle 12 V Trailer Sprayer
Image showing  45 gal. 4-Nozzle 12 V Trailer Sprayer
Image showing  45 gal. 4-Nozzle 12 V Trailer Sprayer
Image showing  45 gal. 4-Nozzle 12 V Trailer Sprayer
Image showing  45 gal. 4-Nozzle 12 V Trailer Sprayer
Image showing  45 gal. 4-Nozzle 12 V Trailer Sprayer
Image showing  45 gal. 4-Nozzle 12 V Trailer Sprayer
Image showing  45 gal. 4-Nozzle 12 V Trailer Sprayer
$849.99
or
or
financeCard Logo
$36/mo.†  suggested payments with 24 Months Financing or earn $42 in Rewards+ on this purchase.
Valid 5/15/2026 - 7/5/2026
Apply now

Shopping at

Grassland (franklin) TN

Delivery to

37027

This is a Big & Bulky item.

Pickup Nearby at ASHLAND CITY TN(23) miles Free

Ship to store at Franklin TN

Free standard delivery on online footwear & Clothing purchases of $49 and over.


Add a protection plan
What's included
Powersport plans are not available in CA & MD.
Neighbor's Club logo
Neighbor’s Club Members earn points with purchases.

Sign in or Join Now

The Fimco 45 Gallon 4-Nozzle 12V Trailer Sprayer is a powerful and versatile spraying solution for various applications, including agriculture, landscaping, and pest control. This compact and portable sprayer is designed to be towed behind a utility vehicle or ATV, making it easy to transport and use in remote areas. The UV resistant, molded polymer tank has a 5 inch tethered lid for easy access and is completely drainable. This model lawn and garden sprayer features the best in class High Flo High Performance 2.4 GPM 12 Volt Pump with inline fuse protection. The Deluxe Pistol Grip Spray Wand with an adjustable spray pattern brass tip distributes up to 40 feet horizontal spray, 25 feet of vertical spray and comes with 25 feet of 3/8 inch hose. The 4 Nozzle Folding Steel Boom offers 10 feet of total spray coverage and our FIMCO exclusive manifold with pressure gauge conveniently places pressure control and boom operation at your fingertips to fine tune your spray pattern. Large durable 16" diameter rubber turf tires provide a smooth ride for easy pulling over any type of terrain. This tow-behind sprayer allows easy, accurate and consistent liquid application of lawn care products. With the Fimco 45 Gallon 4-Nozzle 12V Trailer Sprayer, you can effectively and efficiently tackle a wide range of spraying tasks.

For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.

Looking for more information on sprayers? Check out our guide on agricultural and lawn sprayers in the product documents section.

  • 2.4 GPM High Flo High Performance pump features an internally fan cooled motor as well as chemically resistant valves and diaphragms which increase durability ensuring longer pump life
  • 25 Feet of hose gives you the length necessary to reach tight areas, around buildings and other obstacles
  • 4 nozzle folding boom with TeeJet AIXR air induction tips covers 10' swath
  • Deluxe pistol grip spray wand delivers up to 40 feet of horizontal spray and 25 feet of vertical spray and features an ergonomic polymer handle and precision brass tip
  • Durable 45 Gallon blow molded tank features UV stabilizers and molded drain port and 5 inch lid for easy filling
  • Made for these types of applications: weed control, pest control, fungus control, fertilizing, watering

Similar Items

Items You May Like

  1. Top Rated
  2. Top Rated
  3. Top Rated

Customers Also Bought

Reviews

Rating Snapshot

Select a row below to filter reviews.
19 reviews with 5 stars.
2 reviews with 4 stars.
1 review with 3 stars.
3 reviews with 2 stars.
1 review with 1 star.

Overall Rating

4.3
8 out of 12 (67%) reviewers recommend this product

Review this Product

Select to rate the item with 1 star. This action will open submission form.
Select to rate the item with 2 stars. This action will open submission form.
Select to rate the item with 3 stars. This action will open submission form.
Select to rate the item with 4 stars. This action will open submission form.
Select to rate the item with 5 stars. This action will open submission form.
Adding a review will require a valid email for verification

Customer Images and Videos

  • setup
  • purchase
  • material
  • packaging
  • price
  • satisfaction
  • accuracy
  • spraying
1 to 4 of 26 Reviews .
1 – 4 of 26 Reviews
Oklahoma City
Review 1

Fimco's quality? Poor at best.

7 days ago

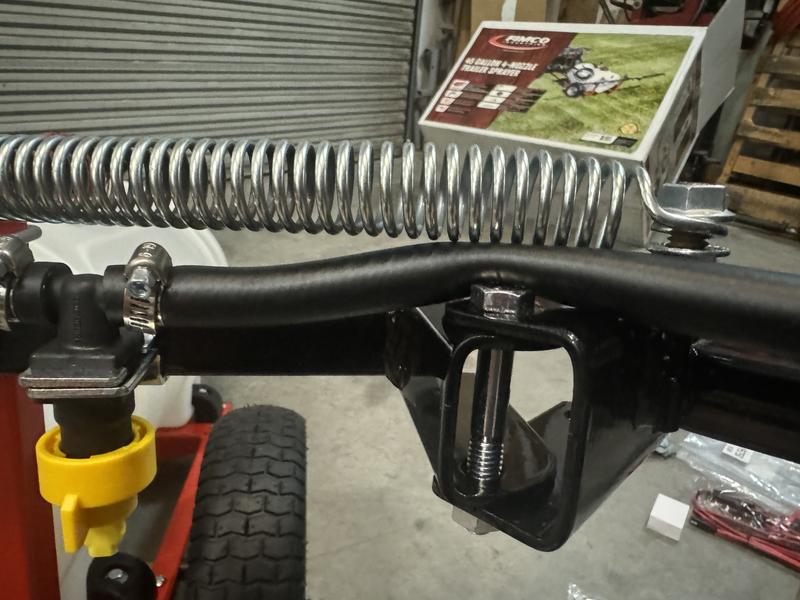

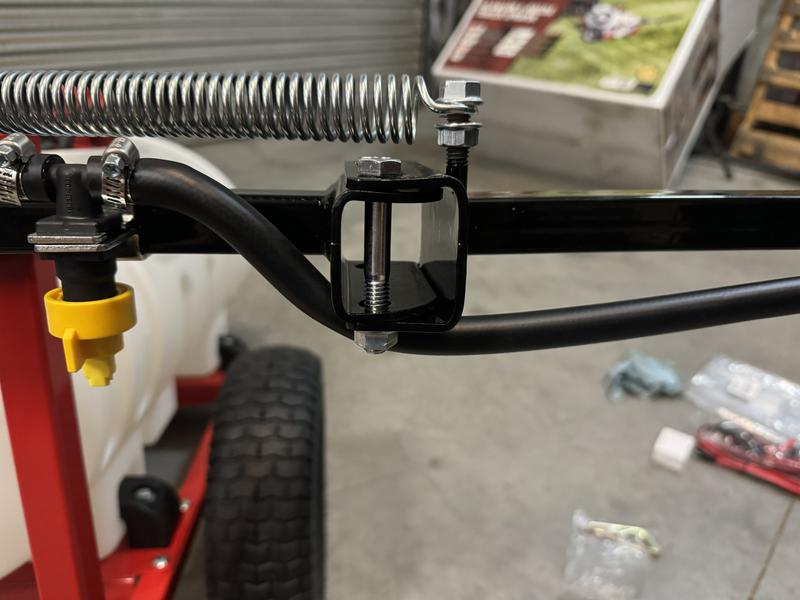

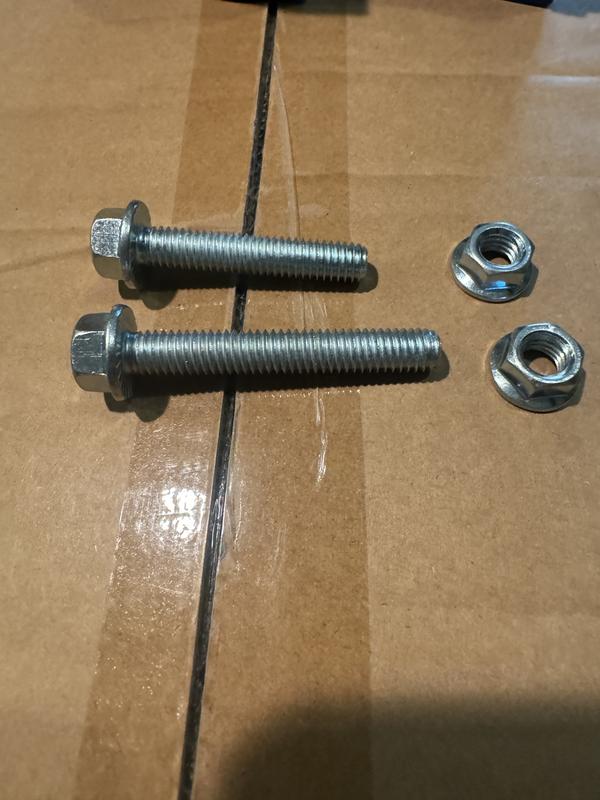

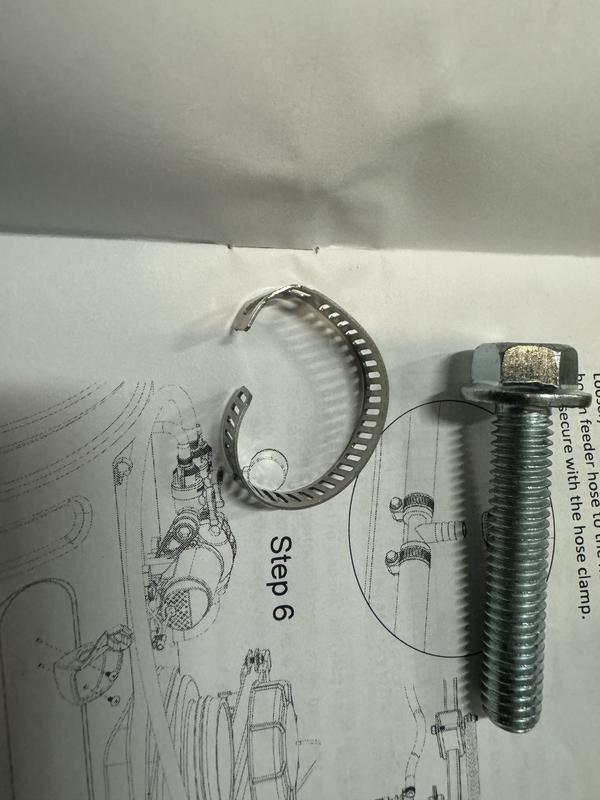

I hope this sprayer functions better than it assembled. Wrong sized bolts, improper hose lengths, poor hose clamps and directions poorly written are what you'll have to deal with. 1) Somehow this particular unit came with three 2 1/2" length bolts and one 2" length bolt to bolt the tank to the frame. A 2" bolt isn't long enough to bolt the tank down, so I had to go buy one. 2) The hose lengths for the sprayer nozzles aren't long enough. The outer ones are short enough to get caught in between the arm spring and the pivot bolt on each side, while the center ones don't allow you to space the two middle nozzles apart the 30" that's recommended. I had to apply more tension than should be to the middle hoses just to get to 29" between those two nozzles. You really only need about 3" on each end piece and 2" on one of the middle pieces to have everything relaxed and functional. I'll eventually end up replacing all of that hose. Hopefully before the plastic fittings break. 3) Have several extra hose clamps on hand to fit the 3/8" hose. The ones supplied are very poor quality and will fail if you try to tighten them or move them. Like the one that completely came apart when I tried moving it to clear the folded arm. 4) Page 5 of the directions has one mounting the spray boom and nozzles. Page 13- if you read that far back- tells you the nozzles need to be 20" above whatever you're spraying for the optimum pattern. Why isn't that little tidbit of information with the rest of the mounting instructions????

No, I do not recommend this product.

Response from Fimco Industries:
2 days ago
Fimco Industries
Thank you for the highly detailed feedback. We take product quality incredibly seriously, so it is surprising to hear about these assembly issues, as this is the first time we have received this combination of feedback regarding our hardware counts, hose lengths, or clamps on this model.
Please reach out to our customer support team directly at 800-831-0027 if there is anything we can do for you.
To clarify why the 20-inch height requirement is located on the boom parts breakdown page: this specification is a variable determined entirely by the specific nozzle tips and spray angles used on this exact boom assembly. Because the required height can be affected by height of grass, weeds and even the towing vehicle hitch can vary widely and changes depending on the nozzle part configuration to achieve a perfect, overlapping pattern, it is kept alongside the technical breakdown of the boom parts rather than the general frame assembly steps.
We appreciate your insights as they help us continually improve our manuals and quality control. FimcoInc
Review 1

Weak pump

16 days ago
This is a decent spreader for home use, but I bought it to use for a commercial business. The pump overheats and blows fuses when it running for more than twenty minutes. I’m looking to upgrade the pump. Besides that, it’s a good unit for the price.
SweepstakesYes

No, I do not recommend this product.

Response from Fimco Industries:
15 days ago
Fimco Industries
Thank you for the feedback! We’re glad the trailer is serving you well overall. It's worth noting that our pumps are rated for continuous duty, so overheating usually points to a 'cycling' issue or a restriction in the flow that causes the motor to work harder than intended. Before you swap it out, check that your spray tips are clean and that the battery leads are getting full voltage. If you’re looking for a heavy-duty commercial upgrade, we recommend looking at our 4.0 Pro Series, which is designed specifically to handle the rigors of daily business use, as it's more of a professional grade pump. FimcoInc
South Dakota
Review 1

Nice Spray Rig -- Very Good Right out of the Box

8 months ago
I added a remote power switch, so I could start/stop spraying from the driver's seat in the tow vehicle. I also added a deep cycle battery and mount to the trailer tongue to eliminate connecting power to the tow vehicle battery. Worked very well overall. I thought that the placement of the embossed volume levels was awkward, with the imperial measures semi hidden under the coiled hose for the spray wand. The lower gallonage markings can only be seen if you lie flat on the ground. Placing the embossments on the end of the tank facing the tow vehicle would make things much better for reading/accurate measuring of materials. An option for a longer tongue would be valuable also, as the rig is near impossible to back up. Another option would be for zerk fittings for the wheel bearings. All in all a pretty good rig. Easy assembly. Would buy again if needed.

Yes, I recommend this product.

Response from Fimco Industries:
8 months ago
Fimco Industries
Thank you for your purchase of the 45-gallon trailer sprayer from Tractor Supply. Glad that you're happy with your new sprayer and that it's working well for your spraying needs. I will pass on your comment regarding a longer tongue to our engineers. FimcoInc
Alabama
Review 1

Home use only

9 months ago
Overall this sprayer isn’t made for more than large yard use. I have 36 acres of rolling hill pasture and the farm has cracked in half and I’m on my second tank. The tank takes all the abuse from the trailer being without suspension.

No, I do not recommend this product.

Response from Fimco Industries:
9 months ago
Fimco Industries
Jon, sorry you've had an issue with this sprayer. Please contact our customer service team at 800-831-0027 and they'll be happy to assist you with your sprayer. FimcoInc
