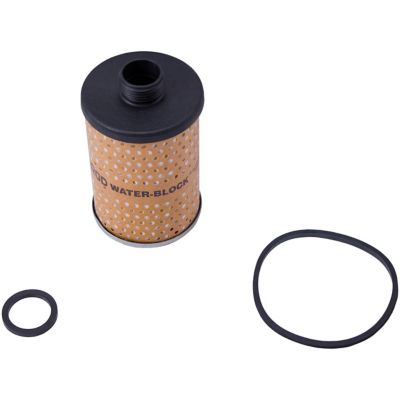

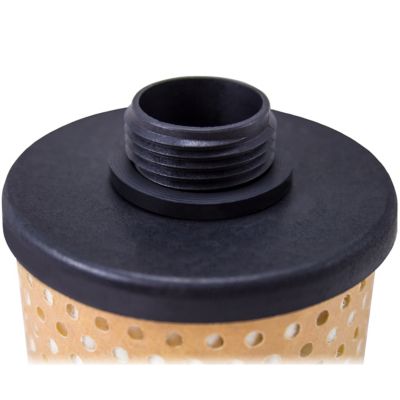

Dutton-Lainson Goldenrod 496-5 Water-Block Replacement Element

SKU: 395830999
Dutton-Lainson Goldenrod 496-5 Water-Block Replacement Element
Enter Zip Code for price More Info
Product price

Save Up To
See price at checkout More Info
Product Rating is 5


433 centerville tpke south
chesapeake, VA 23322
(757) 482-0100
Check Availability at Other Stores
Standard Delivery Not Available to
Notice: This item will ship within 0 days.
This product may require up to 0 additional days for order processing prior to shipping.
Change Delivery Location

Item Information

Dutton-Lainson Goldenrod 496-5 Water-Block Replacement Element is a replacement element for 496 Water-Block fuel filter.

  • Microns: 17
  • Filter Width: 3 in.
  • Filter Length: 3 in.
  • Filter Height: 5 in.

Specification Description
Filter Height: 5 in.
Package Height: 5 in.
Used With Fuel Pump: Yes
Filter Length: 3 in.
Package Width: 3 in.
Package Weight: 0.4 lb.
Package Length: 3 in.
Microns: 17 micron
Brand: Dutton-Lainson
Filter Width: 3 in.
Manufacturer Part Number 56604
  • bvseo_sdk, java_sdk, bvseo-4.0.0
  • LOCAL, getContent, 2ms
  • bvseo-msg: The resource to the URL or file is currently unavailable.;

Is this filter compatible with hydaulic oil?

Asked by: blessed dude
Thanks for your question, but the answer depends on the temperature and weight/viscosity of your hydraulic oil, and how you're planning to use the filter itself. Goldenrod fuel tank filters will handle up to a maximum of 500 SSU, so light hydraulic oil in warm temperatures will probably work, while heavy hydraulic oil at cold temperatures will not. Also, Goldenrod fuel tank filters are not designed to be mounted on engines or motors, they are meant for removing microscopic particles from fuel when transferring it from one location to another. If that is how you want to use the filter and you meet the criteria listed above, it will probably work. However, if you want to mount this filter on an actual pump or engine where oil is circulated and used with pressure, it will not.
Answered by: Dutton-Lainson Company
Date published: 2019-04-02

Is this WaterBlock wlement compatible with my Goldenrod 495 1” NPT?

Asked by: Custommm
Thanks for your question! The only difference between the 495 and 496 fuel tank filters is the element that comes with them- the 495 comes with our standard 10 micron element, and the 496 comes with the Water-Block 17 micron element. This means that you can screw this 496-5 element into the top cap that came with your 495 filter if you need to remove water from your fuel, and the bowl that came with your 495 filter will also work fine with it.
Answered by: Dutton-Lainson Company
Date published: 2019-11-22

Why does it state 3 microns, then 17 microns filtration? Which one is it?

Asked by: Ziav0284
Thank you for pointing out this discrepancy! This 496-5 fuel tank filter replacement element has a 17 micron rating. We have contacted Tractor Supply to fix the error.
Answered by: Dutton-Lainson Company
Date published: 2019-09-23
