DEWALT High Air Flow, 80 Gallon, 175 max PSI, 14.6 SCFM @ 90 PSI, 5 HP, Oil Lubricator Compressor
$1,499.99
DEWALT High Air Flow, 80 Gallon, 175 max PSI, 14.6 SCFM @ 90 PSI, 5 HP, Oil Lubricator Compressor
DEWALT High Air Flow, 80 Gallon, 175 max PSI, 14.6 SCFM @ 90 PSI, 5 HP, Oil Lubricator Compressor
2.36 Reviews
Item # 240445599
$1,499.99
or
or
Buy Air Compressor Get 20% Off Air Compressor accessorie
Neighbor’s Club Members earn points with purchases.
DEWALT High Air Flow, 80 Gallon, 175 max PSI, 14.6 SCFM @ 90 PSI, 5 HP, Oil Lubricator Compressor
2.36 Reviews
Item # 240445599
Buy Air Compressor Get 20% Off Air Compressor accessorie
$1,499.99
or
or
$63/mo.† suggested payments with 24 Months Financing or earn $74 in Rewards+ on this purchase.
Valid 5/15/2026 - 7/5/2026Apply now
Valid 5/15/2026 - 7/5/2026Apply now
This item is available online only
Delivery to
37027
For delivery, this item requires a Big & Bulky handling fee.
Notice:
This Item cannot be shipped to AK, HI.Neighbor’s Club Members earn points with purchases.

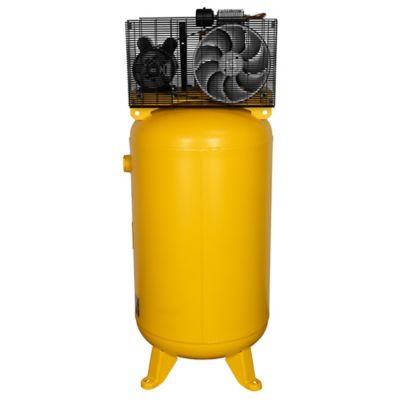

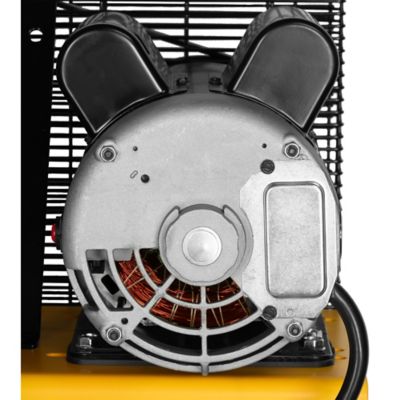

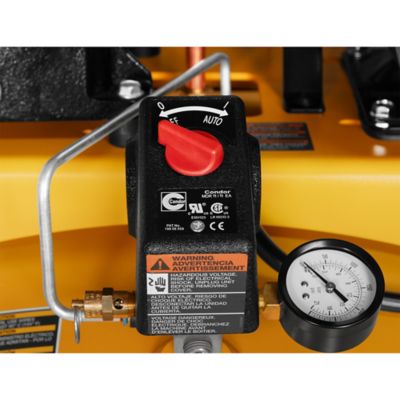

The DEWALT 80 Gallon Stationary Electric Air Compressor provides 175 MAX PSI seen typically with 2-stage performance. Delivering 14.6 SCFM at 90 PSI allows for quick recovery and longer air tool run time. The Heavy-Duty, spread volt induction motor is designed to operate between 208-Volt to 230-Volt. It is also equipped with a pressure gauge, on/off switch and Poly-V belt drive system for smoother operation.
For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.
Looking for more information on air compressors? Check out our air compressor FAQs in the product documents section.
- Poly-v-pulley and drive belt provides smooth operation with less vibration
- High efficiency aluminum flywheel provides maximum air flow and lower start-up Amp due to less starting inertia
- Aluminum head and valve plate to maximize heat dissipation
- High grade stainless steel valves
- Large capacity, 80 Gal. ASME American Society of Mechanical Engineers air reciever provides more air for longer run times on air tools such as ratchets, impacts, spray guns, hammers, etc.
- Superior O-ring seals to eliminate oil leaks
| Brand | DEWALT |
|---|---|
| Country of Origin | Made in USA |
| Airflow Volume | 14.6 SCFM |
| Air Outlet Size | 0.25 in. |
| Compressor Horsepower | 5 HP |
| Lubrication Type | Oil |
| Compressor Maximum PSI | 175 PSI |
| Compressor Tank Capacity | 80 gal |
| Compressor Voltage | 230V |
| Drain System | Drain valve on bottom |
| Drive Type | Belt Drive |
| Features | Longer air tool run time |
| Hose Fitting Size | 0.25 in. |
| Number Of Power Speeds | Single |
| Power Type | Electric |
| Primary Color | Yellow |
| Primary Material | Cast Iron |
| Product Height | 68 in. |
| Product Length | 35 in. |
| Product Weight | 321 lb. |
| Product Width | 36 in. |
| Pump Material | Cast iron |
| Stage Type | Single-Stage |
| Tank Style | Vertical |
| Warranty | 2 Year Limited on Pump, 1 Year Limited on all other |
| Manufacturer Part Number | DXCM805.COM |
Start typing your question and we'll check if it was already asked and answered.
1 - 2 of 2 Questions
Newest questions
Q: I see this is a 5hp motor - what RPM ?
a year ago1 Answer
- A: For such a specific product inquiry, please contact DeWalt using the information below. ***DEWALT*** https://support.dewalt.com/hc/en-us/requests/new OR CALL 800-433-9258 Monday - Friday, 8:00 A.M. - 6:00 P.M. Eastern Time.a year agoHelpful?
Q: The manual doesn't mention the outlet sizes and the product specifications must contain a misprint because it says the air outlet and hose fitting sizes are 0.25". What size is the air outlet?
a year ago1 Answer
- A: Hi, Thank you for your interest in this product, currently it is not available to order. When this happens, we do not have access to the specifics on the item. To be notified of all specials and promotions, please make sure you are signed up for our emails (this can be done at the bottom of our website), follow us on social media, and continue to check the website for restock updates. Please feel free to reach out to the manufacturer directly using the information below. ***DEWALT*** https://support.dewalt.com/hc/en-us/requests/new OR CALL 800-433-9258 Monday - Friday, 8:00 A.M. - 6:00 P.M. Eastern Time.a year agoHelpful?
Similar Items
-
-
-
-
-
-
-
-
Top Rated
-
-
-
Top Rated
-
Items You May Like
-
-
-
Top Rated
-
-
-
Top Rated
-
Top Rated
-
-
Top Rated
-
-
-
Customers Also Bought
-
-
-
-
-
-
-
-
-
Top Rated
-
-
-
Reviews
Customer Images and Videos
- opening
- packaging
- purchase
1 to 4 of 6 Reviews .
1 – 4 of 6 Reviews
Most Recent
Review 1
1 out of 5 stars.
Bad deal
a month ago
Very poor service on order! Order got lost and waited 28 days before canceling order.
Anonymous
Cleveland TX
Review 1
2 out of 5 stars.
Disappointing
a year ago
Arrived wrapped and crated, but starter was broken.
SweepstakesYes
No, I do not recommend this product.
Response from Dewalt Team:
a year ago
Dewalt Team
We're sorry to hear about your experience with this compressor! Someone on our service team would be happy to help you resolve the issue with this product. Please reach out to them at 1-888-895-4549 or [email protected] for assistance.
Review 1
1 out of 5 stars.
80 gallon box, 60 gallon product
a year ago
Uknown if worked, the wrong product was in the box. the 80 gallon was ordered as well as was stated on the box. when I opened the box, the compressor stated it was a 60 gallon. Not what was ordered.
Review 1
5 out of 5 stars.

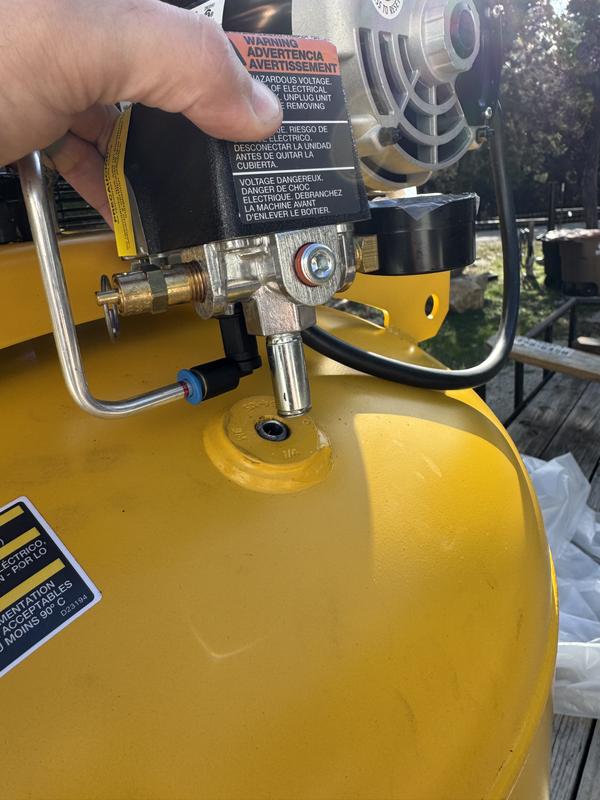

Needed a lot of plumbing on side of tank.
a year ago
Nice air compressor
SweepstakesYes
Yes, I recommend this product.
