DEWALT 3.7 RHP 60 gal. 1-Stage Vertical Stationary Air Compressor, 155 PSI
DEWALT 3.7 RHP 60 gal. 1-Stage Vertical Stationary Air Compressor, 155 PSI
2.531 Reviews
Item # 119634099
$899.99
or
or
Neighbor’s Club Members earn points with purchases.
DEWALT 3.7 RHP 60 gal. 1-Stage Vertical Stationary Air Compressor, 155 PSI
2.531 Reviews
Item # 119634099
$899.99
or
or
$38/mo.† suggested payments with 24 Months Financing or earn $44 in Rewards+ on this purchase.
Valid 5/15/2026 - 7/5/2026Apply now
Valid 5/15/2026 - 7/5/2026Apply now
This item is available online only
Delivery to
37027
For delivery, this item requires a Big & Bulky handling fee.
Neighbor’s Club Members earn points with purchases.
The DEWALT 3.7 RHP 60 Gallon Vertical Stationary Air Compressor features a cast iron, twin-cylinder and oil-lubricated pump. The stationary air compressor includes a 1-piece cast iron crankcase, thermally stable cast iron cylinder body, aluminum head and valve plate, automotive style ball bearings, durable Swedish stainless steel reed valves, oil level sight glass, easily accessible oil fill and a 12 in. cast iron balanced flywheel. This air compressor also operates with a heavy-duty and 230-Volt induction motor for maximum performance and efficiency, with 155 PSI max pressure for optimum tool performance.
For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.
Looking for more information on air compressors? Check out our air compressor FAQs in the product documents section.

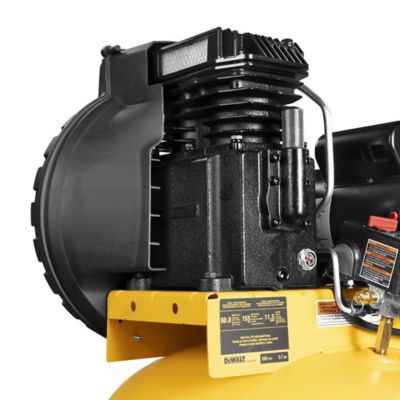

- Durable, cast iron, twin cylinder and oil lubricated pump

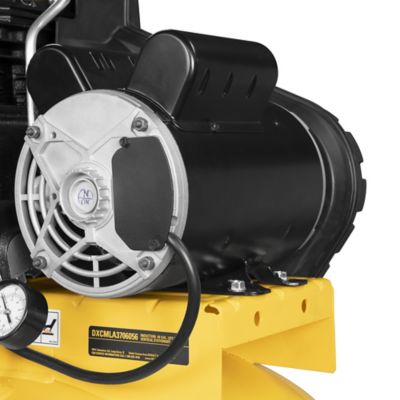

- Heavy duty 230 V induction motor for maximum performance and efficiency
- Oil level sight glass and easy access oil fill
- Quiet belt drive operation for convenience

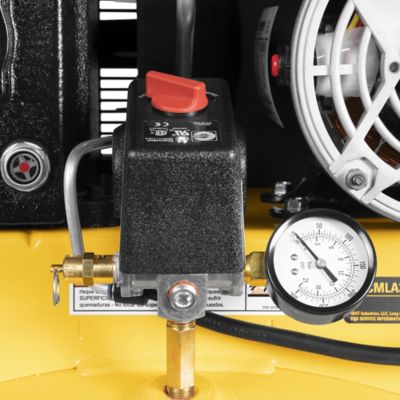

- Equipped with high flow port and bung, tank pressure gauge and on/off switch
- Shipped with synthetic oil for optimum performance and long life
- 2 year limited pump; 1 year all other components
- Air compressor with 12 in. cast iron balanced flywheel
- 155 PSI maximum pressure for optimum tool performance
| Brand | DEWALT |
|---|---|
| Country of Origin | Made in USA |
| Airflow Volume | 13.4 SCFM |
| Air Outlet Size | 0.75 in. NPT |
| Compressor Horsepower | 3.7 HP |
| Lubrication Type | Oil |
| Compressor Maximum PSI | 155 PSI |
| Compressor Tank Capacity | 60 gal |
| Compressor Voltage | 230V |
| Decibel Rating | 83 dBA |
| Drain System | Manual |
| Drive Type | Belt |
| Features | Cast Iron Twin Cylinder Oil Lubricated Pump, 240 Volt Induction Motor, 155 PSI Mas Pressure, 60 gal. ASME* Air Receiver |
| Fuel Tank Capacity | 60 gal. |
| Phase | Single |
| Number Of Power Speeds | Single |
| Number Of Wheels | 0 |
| Power Type | Electric |
| Primary Color | Yellow |
| Primary Material | Steel |
| Product Height | 70.5 in. |
| Product Length | 31 in. |
| Product Weight | 244 lb. |
| Product Width | 32.25 in. |
| Pump Material | Cast iron |
| Pump Oil Capacity | 16 oz. |
| Stage Type | Single-Stage |
| Tank Fill Time | 6.47 min. |
| Tank Style | Vertical |
| Warranty | 2 Year Limited |
| Manufacturer Part Number | DXCMLA3706056 |
Start typing your question and we'll check if it was already asked and answered.
1 - 10 of 17 Questions
Newest questions
Q: Is there a reason Dewalt will not publish the Amperage requirements in their installation manual?
2 months ago1 Answer
- A: Hello, thank you for your question. Please reach out to Dewalt directly for assistance with this specific inquiry. 1-800-4-DEWALT (1-800-433-9258)2 months agoHelpful?
Q: 230v - 3.7 RHP motor, what is the amp draw?
9 months ago1 Answer
- A: Hello, thank you for your question. Per the vendor, "The motor on this compressor is rated at 17.2 FLA."9 months agoHelpful?
Q: If the DXCM601 and DXCMLA3706056 are the same air compressor as you stated why is one $200 dollars more than the other and some specs are different.
4 years ago2 Answers
- A: Both of these 60 gallon air compressors are built in the U.S. They are made in two separate manufacturing facilities and service different regions and customers.4 years agoHelpful?
Q: What is the advantage of this compressor over the DXMC601
4 years ago1 Answer
- A: These two compressors are the same. They are both built in the U.S., but in two separate manufacturing facilities. That is the reason for the two different model numbers; it is done in order to service different regions and customers.4 years agoHelpful?
Q: What is the difference between this compressor and the deWalt DXCM601 unit you also sell?
4 years ago2 Answers
- A: These two compressors are the same. They are both built in the U.S., but in two separate manufacturing facilities. That is the reason for the two different model numbers; it is done in order to service different regions and customers.4 years agoHelpful?
Q: Does it have to be anchored down? If so does it have to be on concrete slab vs a wood floor. Will be in a garage if on wood floor
5 years ago1 Answer
- A: This air compressor must be bolted to a level, solid concrete surface.5 years agoHelpful?
Q: Bought new got it home and wont run? Help
5 years ago1 Answer
- A: We are sorry to hear that you are having issues with your DEWALT 60 gallon air compressor. Please contact Product Services at 888-895-4549 for further assistance.5 years agoHelpful?
Q: what size fitting on tank do i need to set up my air hose
5 years ago1 Answer
- A: The port on the side of the tank is 3/4" NPT.5 years agoHelpful?
Q: i got DeWALT tool and all work fine i read the reviews you better send e one so i can test it don't worry I'am X navy Submarine we also give tool back when were done test them now some it take a little time it hard to get throth the round hole hatch
5 years ago3 Answers
- A: you can tell Anonymous I dont drink or do drugs or smoke or do drug I just served on a nuke Sub at the old age of 16 and stay on them for many years . we talk a bit odd and live a odd life to portect the flag and his right not to under stand some one that gave up years not to see the sunlight fresh air i never went to a prom never had high school sweet heart as i was at the hem dive a nuke sub no letters from home no word from the out side world had a son die wife leve and find out 6 mos late after mos under the sea . and he dont under stand navy talk and we spell sense the navy way cents and we finger things out i like DeWalt tools but i dont have DeWalt air compressor one and right now have no means of getting one .On less Dewalt ever want some dumb old submarine to test one . but i like to do a good test many 10 or 20 years got to do a good job you know but the dewalt tools i hav i use alot and have not let me down some gone on 11 years old now and i hope they last 10 or 20 years more i did get some new battery for them and the last a long time just keep them out the cold in the winter i got ten years out of some that way5 years agoHelpful?
Q: What is the belt size, please?
5 years ago1 Answer
- A: This DEWALT 60 gal. air compressor has a 53" V-Belt (A51 4L530, A-Width).5 years agoHelpful?
1 - 10 of 17 Questions
Similar Items
-
-
-
-
-
-
-
-
-
Top Rated
-
-
Top Rated
-
Top Rated
Items You May Like
-
Top Rated
-
-
-
-
Top Rated
-
-
-
-
Top Rated
-
-
Top Rated
-
Top Rated
Customers Also Bought
-
-
-
-
-
-
-
Top Rated
-
-
-
-
Top Rated
-
Reviews
- purchase
- warranty
- price
- quality
- installation
- parking
- satisfaction
- shortcoming
1 to 4 of 31 Reviews .
1 – 4 of 31 Reviews
Most Recent
Reviews 2
5 out of 5 stars.
Great customer service
3 months ago
Everything works, it keeps up with a large flat sander and other equipment. I use it for a home shop and it has done its job. I have had a problem with the compressor head breaking a connecting rod which is like a heart attack but I called the help number and in 5 minutes they agreed to send out a new compressor head. I am not happy that it had a problem but very happy they took care of the problem immediately.
CPTF
Marcus, Iowa
Review 1
Age35 to 44
1 out of 5 stars.
Unfortunate product
8 months ago
I literally bleed black and gold. I have more DeWalt products than most hardware stores! Unfortunately, I also own this pile of crap. My 60 gallon air compressor has less than 4 hours of lifetime use on it and it’s been back to them twice for repair. I got it back from them last time, I moved and it sat unhooked for maybe 2 years. Finally got a shop put together, had it all hooked up and running. Ran perfectly for about an hour! Unit is sitting in a renovated DeWalt themed shop, completely dead, for the 3rd time.
Unit is out of warranty with very little time and use on it so pretty well screwed. I’m sad to say it, but I would recommend any other compressor than this one.
No, I do not recommend this product.
Originally posted on dewalt.com
Mount Vernon, WA
Reviews 2
1 out of 5 stars.
Cheap junk that doesnt last
a year ago
Worked great for light to medium duty use for 13 months.. then the motor caught fire randomly. Full oil, pump was cool, in a clean environment with plenty of ambient air for it to breathe and then mid use, flames spewing out the sides. Got it extinguished after catching it (thankfully) and the motor is locked and no longer works, as expected.
Tractor supply won't stand by their products and do anything about it, even though it's under warranty and I was told I could bring it in for a hassle free experience.. but now, even though it's under warranty and I purchased the extended warranty, they are saying they don't do that. So the hassle is on me to get it fixed and deal with the warranty stuff.
Next time I'll pay extra and go with the local companies that stand by their products, what they sell, and know the equipment too. If it was old and abused, I'd understand but the motor still looked brand new. Disappointed in both durability and service
No, I do not recommend this product.
Response from Dewalt Team:
a year ago
Dewalt Team
We're sorry to hear about your experience with this compressor! Someone on our service team would be happy to help you resolve the issue with this product. Please reach out to them at 1-888-895-4549 or Service.Parts@Sanborn-Mfg.com for assistance.
Review 1
2 out of 5 stars.
Poor welding, cracked
a year ago
Factory weld on the bottom drain plug cracked, just out side of the warranty just my luck. New 60 gallon tank cost more the than the compressor
Response from Dewalt Team:
a year ago
Dewalt Team
Please contact our product services technical team at 888-895-4549. When calling, be sure to have both the air compressor model number and serial number found on the right side of the compressor tank. Thank you.
