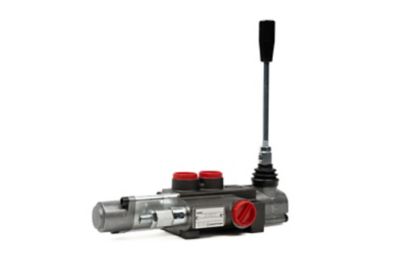

CountyLine 3,625 PSI Fine Metering Valve, 13 GPM, 1 Spool
$329.99
CountyLine 3,625 PSI Fine Metering Valve, 13 GPM, 1 Spool
CountyLine 3,625 PSI Fine Metering Valve, 13 GPM, 1 Spool
Item # 1542189
$329.99
or
or
Neighbor’s Club Members earn points with purchases.
$329.99
or
or
$55/mo.† suggested payments with 6 Months Financing or earn $16 in Rewards+ on this purchase.
Shopping at
Grassland (franklin) TN
Delivery to
Free standard delivery on online footwear & Clothing purchases of $49 and over.
Neighbor’s Club Members earn points with purchases.
Use the CountyLine 3,625 PSI Fine Metering Valve for durability and long-lasting use with most hydraulic systems. Designed with a SAE 10 female outlet size, this metering valve is great for controlling the flow direction of pneumatic/hydraulics energy source. The fine metering valve is made of metal construction to ensure added strength, and it includes a 3,625 PSI maximum pressure and 4 directional control positions.
- Metal construction delivers longevity
- Use the metering valve with most hydraulic systems
- SAE 10 female outlet size
- Valve Z50 13 GPM
- 3,625 PSI maximum pressure
- 4 directional control positions
- 4 POS float detent and 3 POS spring center
- Designed to control the flow direction of pneumatic/hydraulics energy source
- Single spool fine metering valve
- Metering valve is made in Bulgaria
- Satisfaction guaranteed
| Brand | CountyLine |
|---|---|
| Country of Origin | Imported |
| Brand Compatibility | Universal |
| Compatibility | Most applications |
| Inlet Size | 0 N/A |
| Inlet Type | Female |
| Maximum Flow Rate | 13 GPM |
| Maximum PSI | 3,625 PSI |
| Model Compatibility | Most applications |
| Number Of Directional Control Positions | 4 |
| Outlet Size | SAE 10 |
| Outlet Type | Female |
| Primary Material | Metal |
| Product Height | 0 N/A |
| Product Length | 0 N/A |
| Product Weight | 7 lb. |
| Product Width | 0 N/A |
| Manufacturer Part Number | 310871 |
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 10 of 16 Questions
Newest questions
Q: Can you send me a port schematic for the 310871. I’m adding it to a tractor with front end loader to control batwing. The ports aren’t numbered. I would like to think the port at the pressure adjuster is supply but I need a diagram
7 months ago1 Answer
- A: Please check your email for the requested information.7 months agoHelpful?
Q: Where can I get the power beyond sleeve /adapter? Also need a diagram for installing using power and beyond port? If using power beyond port do I have to have a tank line installed?
8 months ago1 Answer
- A: We have the Power beyond sleeve for these valves. It is item 220842. It is the same item that would be used on the manual valves (Countyline 3625PSI G Series Directional Control Valves (example Tractor supply item 1307341). To install the power beyond plug, remove the metal plug in port labeled “N”. It next to the valve “T” (Tank) port. Insert the sleeve into the “N” port and thread all the way down. NOTE: when the seals while threading it will be easy, but when the seals contact inside the small port inside the port, the sleeve will become a little harder to rotate. This is normal). WARNING: When the power beyond sleeve is installed, the Tank port MUST be installed to a tank return. Failure to comply could result in injury to personnel or damage to system. Instructions to plumb valve. The pressure line from the tractor or pump, is connected to the valves P (pressure) port. The valves “T” Tank port MUST be connected to a system tank return line. The valves “A” & “B” ports are connected to the item to be operated. The A & B ports are capable to the same pressures during operation. The “N” (power beyond) port has a line that will send fluid to the next valve inline when this valve is not in use. I attached a drawing of the valve to assist with plumbing in your email.8 months agoHelpful?
Q: Can I have a schematic so I know what is in port, out port , ect.
8 months ago1 Answer
- A: Please check your email for the requested information8 months agoHelpful?
Q: Can I have the schematic? I need to know how to hook it up to a batwing with a tractor
9 months ago1 Answer
- A: Please check your email for the requested information.9 months agoHelpful?
Q: Can you please send me the information for this valve diagram wise and explain on reference to.tge float detent . If it's detented in float mode it will lock into that direction correct
a year ago1 Answer
- A: Please check your email for the dimensional drawing.a year agoHelpful?
Q: How do you make this stay in the on position?
a year ago1 Answer
- A: This valve does not offer a detent kit. There isn’t a way to keep it in the on position. Only detent in this valve is for the float position.a year agoHelpful?
Q: Can you send me a flow diagram or something to help me set this up on my log splitter I built
a year ago1 Answer
- A: Please check your email for the requested information.a year agoHelpful?
Q: Can I get the diagram for this valve
a year ago1 Answer
- A: Please check your email for the requested informationa year agoHelpful?
Q: Can i get a valve diagram for this valve?
a year ago1 Answer
- A: Please check your email for the requested information.a year agoHelpful?
Q: Just bought this and it came with no instructions how can I get some instructions I need to flip the handle the other way
a year ago1 Answer
- A: Please check your email for the drawing, we do not offer instruction on flipping the handle.a year agoHelpful?
1 - 10 of 16 Questions
Q&As
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 10 of 16 Questions
Newest questions
Q: Can you send me a port schematic for the 310871. I’m adding it to a tractor with front end loader to control batwing. The ports aren’t numbered. I would like to think the port at the pressure adjuster is supply but I need a diagram
7 months ago1 Answer
- A: Please check your email for the requested information.7 months agoHelpful?
Q: Where can I get the power beyond sleeve /adapter? Also need a diagram for installing using power and beyond port? If using power beyond port do I have to have a tank line installed?
8 months ago1 Answer
- A: We have the Power beyond sleeve for these valves. It is item 220842. It is the same item that would be used on the manual valves (Countyline 3625PSI G Series Directional Control Valves (example Tractor supply item 1307341). To install the power beyond plug, remove the metal plug in port labeled “N”. It next to the valve “T” (Tank) port. Insert the sleeve into the “N” port and thread all the way down. NOTE: when the seals while threading it will be easy, but when the seals contact inside the small port inside the port, the sleeve will become a little harder to rotate. This is normal). WARNING: When the power beyond sleeve is installed, the Tank port MUST be installed to a tank return. Failure to comply could result in injury to personnel or damage to system. Instructions to plumb valve. The pressure line from the tractor or pump, is connected to the valves P (pressure) port. The valves “T” Tank port MUST be connected to a system tank return line. The valves “A” & “B” ports are connected to the item to be operated. The A & B ports are capable to the same pressures during operation. The “N” (power beyond) port has a line that will send fluid to the next valve inline when this valve is not in use. I attached a drawing of the valve to assist with plumbing in your email.8 months agoHelpful?
Q: Can I have a schematic so I know what is in port, out port , ect.
8 months ago1 Answer
- A: Please check your email for the requested information8 months agoHelpful?
Q: Can I have the schematic? I need to know how to hook it up to a batwing with a tractor
9 months ago1 Answer
- A: Please check your email for the requested information.9 months agoHelpful?
Q: Can you please send me the information for this valve diagram wise and explain on reference to.tge float detent . If it's detented in float mode it will lock into that direction correct
a year ago1 Answer
- A: Please check your email for the dimensional drawing.a year agoHelpful?
Q: How do you make this stay in the on position?
a year ago1 Answer
- A: This valve does not offer a detent kit. There isn’t a way to keep it in the on position. Only detent in this valve is for the float position.a year agoHelpful?
Q: Can you send me a flow diagram or something to help me set this up on my log splitter I built
a year ago1 Answer
- A: Please check your email for the requested information.a year agoHelpful?
Q: Can I get the diagram for this valve
a year ago1 Answer
- A: Please check your email for the requested informationa year agoHelpful?
Q: Can i get a valve diagram for this valve?
a year ago1 Answer
- A: Please check your email for the requested information.a year agoHelpful?
Q: Just bought this and it came with no instructions how can I get some instructions I need to flip the handle the other way
a year ago1 Answer
- A: Please check your email for the drawing, we do not offer instruction on flipping the handle.a year agoHelpful?
1 - 10 of 16 Questions
Similar Items
-
-
-
-
-
-
-
-
-
Top Rated
-
-
-
Items You May Like
-
-
-
Top Rated
-
-
-
Top Rated
-
-
-
Top Rated
-
-
Top Rated
-
Top Rated
Customers Also Bought
Reviews
- paperwork
1 to 2 of 5 Reviews .
1 – 2 of 5 Reviews
Most Recent
Mount Vernon
Reviews 2
5 out of 5 stars.
Perfect fit
2 years ago
Works perfect! Just what I needed to build my hydraulic power supply
SweepstakesYes
Yes, I recommend this product.
Arlington, wa
Review 1
3 out of 5 stars.
Needs help
2 years ago
Like everyone else states. Is this a closed or open circuit? No paperwork in box, would like anything that gives something. I took this to the hose shop in burlington to fit it with hoses, because tsc can't keep more then 1 fitting on the shelf
