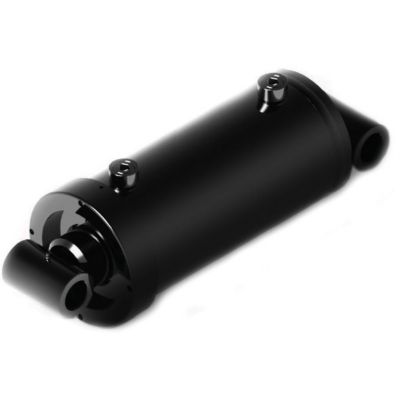

Chief 8 in. Bore x 20 in. Stroke WT Welded Cylinder, 4 in. Rod Diameter
Item # 1307539
The Chief 8 in. Bore x 20 in. Stroke WT Welded Cylinder is a high-quality welded hydraulic cylinder designed for heavier loads. The rod and base ends are welded cross-tubes with grease zerks. Designed for performance, the hydraulic cylinder has a heavy-duty piston as well as a piston stem complete with wear rings to reduce friction, and the screw-in gland is removable from the rod end. It is ideally suited for construction and agricultural applications as well as other industries like metal fabricating, waste/recycling and OEM trailer manufacturing.Note: This product may require up to 2 additional days for order processing prior to shipping
For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.
- Intended use: double-acting applications
- Piston: ductile iron with wear ring(s)
- Gland: ductile iron, screw-in design with wear ring
- Tube: precision-honed steel
- Rod: ground and polished chromed steel with a minimum 75,000 PSI yield
- Butt plate: steel
- End mounts: steel cross-tubes with grease zerk
- Spacer tube: steel on 48 in. stroke and above
- Gland seal: polyurethane U-cup
- Wiper: polyurethane
- Piston seal: 755 Hallite with wear ring(s)
- All other seals are selected and designed for maximum life
- Hydraulic cylinder functionally tested and pressurized to 1.5 times the normal working pressure for max reliability
- 3,000 PSI operating range on the welded hydraulic cylinder
- Has an externally mounted retainer ring for versatility
- Measures 36 in. retracted and 56 in. extended
- Includes SAE O-ring port hookups on small bores and NPT on large bores
- Suitable for a variety of applications
- Pin diameter of 2.5 in. and rod diameter of 4 in.
- Column load: 150,790 lb.
- Made in the USA with a 3 year limited warranty
| Brand | Chief |
|---|---|
| Country of Origin | Made in USA |
| Bore Diameter | 8 in. |
| Brand Compatibility | Universal |
| Compatibility | Tractors |
| Extended Length | 56 in. |
| Hydraulic Cylinder Type | Welded |
| Maximum Operating Pressure | 3,000 PSI |
| Maximum Weight Capacity | 150,790 lb. |
| Model Compatibility | Universal |
| Package Quantity | 1 |
| Pin Diameter | 2-1/2 in. |
| Primary Material | Steel |
| Product Height | 9 in. |
| Product Weight | 317 lb. |
| Product Width | 5 in. |
| Retracted Length | 36 in. |
| Rod Diameter | 4 in. |
| Single/Double Acting | Double acting |
| Stroke Distance | 20 in. |
| Warranty | 3 Year Limited |
| Manufacturer Part Number | 216171 |
