Bailey Hydraulics Chief Two Stage Pump, 13 GPM Max, 7 HP Input, 1 in. Tube Inlet, 1/2 x 1 1/2 Shaft, 250093

4.52 Reviews

Item # 196809299

Shop all Bailey Hydraulics

Bailey Hydraulics Chief Two Stage Pump, 13 GPM Max, 7 HP Input, 1 in. Tube Inlet, 1/2 x 1 1/2 Shaft, 250093

4.52 Reviews

Item # 196809299

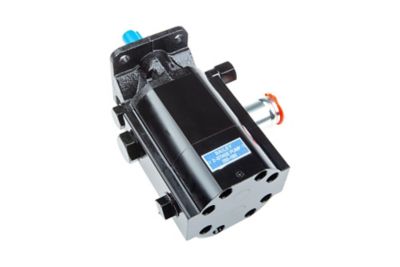

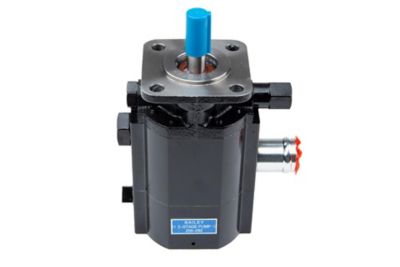

Image showing Chief Two Stage Pump, 13 GPM Max, 7 HP Input, 1 in. Tube Inlet, 1/2 x 1 1/2 Shaft, 250093

$249^.99

Available promotions

Free standard delivery on most items when spending $49 online. Some exclusions apply. (Does not apply to oversized or same day deliveries.) ...

Learn More

This item is available online only

Standard Delivery to

37027

Neighbor’s Club Members earn points with purchases.

The Bailey Hydraulics Chief 2-Stage Hydraulic Pump is designed for use at elevated pressures. This 2-stage hydraulic pump is ideal for press-type applications requiring fast approach/retract speeds and slower peak actuator work speeds due to horsepower limitations or safety constraints. Clockwise viewed from the shaft end, the 1/2 in. shafts on the hydraulic pump use a 404 wood ruff key; 5/8 in. shafts use 3/16 in. 3,600 RPM maximum. The maximum pressure is 3,045 PSI for powerful use.

11.7/2.9 GPM (85% efficiency)
2-stage hydraulic pump has unloading at 652 PSI
Maximum pressure of 3,045; 3,600 RPM
Pressure port size measures 1/2 in. NPT
Designed for use at elevated pressures
Ideal for press-type applications requiring fast approach/retract speeds and slower peak actuator work speeds due to horsepower limitations or safety constraints
Clockwise viewed from the shaft end
1/2 in. hydraulic pump shafts use a 404 wood ruff key
