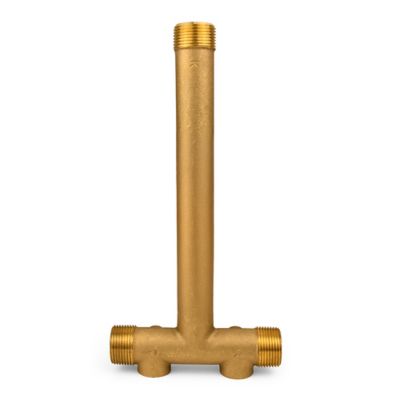

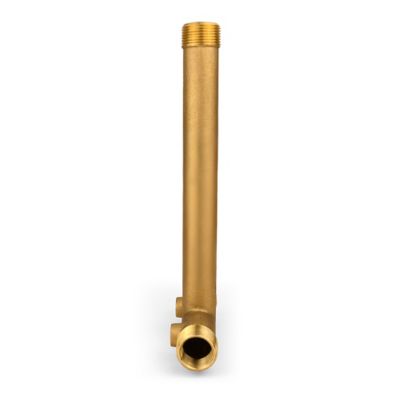

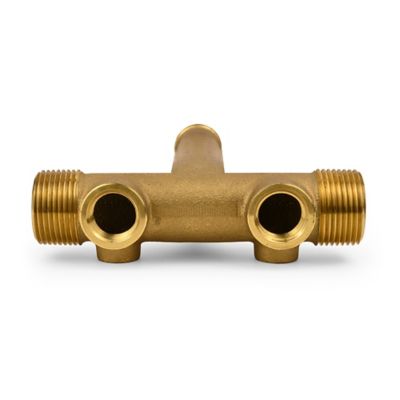

This 10 in. long x 1 in. Water Source Brass Tank Tee connects the water line from the pump to the pressure tank. 1/4 in. and 1/2 in. ports accept a pressure switch, a pressure gauge, a relief valve, and a snifter valve.
- Connects the water line from the pump to the pressure tank
- 10 in. length allows for use with vertical pressure tanks 36 gallons and below
- Tank connection is 1 in. male NPT thread; Other two connections are dual threaded with 1 in. male NPT and 3/4 in. female NPT threads
- Two 1/4 in. ports on the top for pressure switch, pressure gauge, or plug
- Two 1/2 in. ports on the front for pressure relief valve and boiler drain valve
- Solid brass design meets federal low lead regulations
