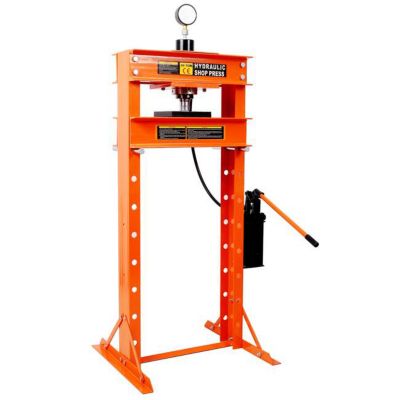

TMB 30 Ton Hydraulic Shop Press with Gauge, Orange
TMB's BAC-W465P304919 Heavy-Duty, 30-Ton Hydraulic Shop Press is built for the toughest of automotive and metalworking jobs, delivering reliable force for pressing, bending, straightening, and stamping. The adjustable worktable offers a wide height range from 0.2" to 36", making it versatile for different workpieces and user preferences, while the included movable stamping plates help securely position smaller parts. Designed for stability and safety, the reinforced triangular base minimizes wobble during high-pressure operation, and the dual pump manual system provides smooth, efficient pressure control with reduced effort. Constructed with a rugged, orange, powder-coated steel H-frame, this shop press delivers long-lasting durability and consistent performance for professional shops and serious DIY users alike. Backed by a 1 year limited parts warranty.
- 30-TON CAPACITY - Heavy-duty pressing power for automotive and metalwork jobs, including bushings, bearings, ball joints, U-joints, gears, bending, straightening, and stamping.
- ADJUSTABLE WORKING HEIGHT - Worktable adjusts from 0.2" to 36" using a pin system, for different projects, user heights, and workpiece sizes. Includes two movable stamping plates for added support.
- FLEXIBLE 8-POSITION WORKTABLE - Eight adjustment holes on each side provide quick, stable height customization without sacrificing structural strength.
- STABLE TRIANGULAR BASE - Reinforced triangular base minimizes wobble and tipping during high-pressure operation for improved safety and control.
- DUAL PUMP DESIGN - Dual dump manual system delivers smooth, controlled pressure with reduced effort for faster, more efficient operation.
- HEAVY-DUTY STEEL H-FRAME - Orange, powder-coated steel H-frame offers exceptional strength, stability, and long-lasting durability for tough shop use.
- 12 months limited parts warranty
| Brand | TMB |
|---|---|
| Country of Origin | Imported |
| Base Length | 27.5 in. |
| Base Width | 29 in. |
| Capacity | 60,000 lb. |
| Largest Arbor | 1.9 in. |
| Leverage Ratio | 62 days, 12:01:00 |
| Maximum Ram to Table | 36 in. |
| Maximum Work Diameter | 66,000 lb. |
| Minimum Ram to Table | 0.1875 in. |
| Operation Type | Lever |
| Primary Material | Steel |
| Product Height | 64.5 in. |
| Product Length | 29 in. |
| Product Weight | 257.2 lb. |
| Product Width | 27.5 in. |
| Ram Size | 3 in. |
| Throat | NA |
| Warranty | 12 months limited parts |
| Manufacturer Part Number | BAC-W465P304919 |
