Maxim 3.5 in. Bore x 20 in. Stroke WC Welded Cylinder, 1.75 in. Rod Diameter

Shop all Maxim

  • Online Only

Maxim 3.5 in. Bore x 20 in. Stroke WC Welded Cylinder, 1.75 in. Rod Diameter

Item # 1307747

Maxim Maxim 3.5 in. Bore x 20 in. Stroke WC Welded Cylinder, 1.75 in. Rod Diameter
Maxim Maxim 3.5 in. Bore x 20 in. Stroke WC Welded Cylinder, 1.75 in. Rod Diameter
$239.99
or
or

Add this item to unlock free delivery!

Neighbor's Club logo
Neighbor’s Club Members earn points with purchases.

Sign in or Join Now

Shop all Maxim

  • Online Only

Maxim 3.5 in. Bore x 20 in. Stroke WC Welded Cylinder, 1.75 in. Rod Diameter

Item # 1307747

Maxim Maxim 3.5 in. Bore x 20 in. Stroke WC Welded Cylinder, 1.75 in. Rod Diameter
Maxim Maxim 3.5 in. Bore x 20 in. Stroke WC Welded Cylinder, 1.75 in. Rod Diameter

$239.99
or
or
financeCard Logo
$40/mo.†  suggested payments with 6 Months Financing or earn $11 in Rewards+ on this purchase.

Add this item to unlock free delivery!

This item is available online only

Delivery to

Free standard delivery on online footwear & Clothing purchases of $49 and over.

​
Neighbor's Club logo
Neighbor’s Club Members earn points with purchases.

Sign in or Join Now

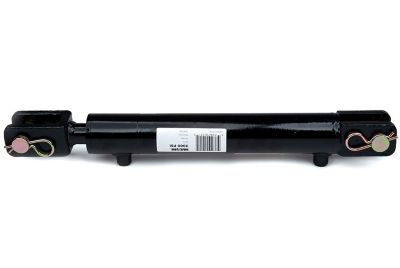

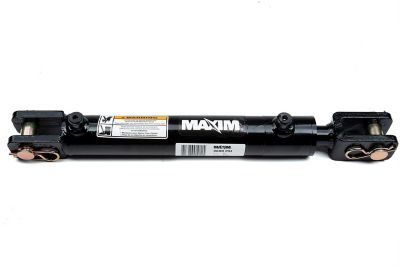

The Maxim 3.5 in. Bore x 20 in. Stroke WC Welded Cylinder is clevis-mounted and exceeds the highest standards. The hydraulic cylinder is designed for demanding applications and comes built to ensure maximum reliability and performance. Cast female clevises with pins and clips are included with the welded hydraulic cylinder to act as end mounts.Note: This product may require up to 2 additional days for order processing prior to shipping

  • Painted black
  • Intended for double-acting applications
  • Piston: ductile iron ASTM A536 65-45-12 for excellent life
  • Piston lock nut: grade 8, high-tensile zinc-plated
  • Gland: ductile iron ASTM A536 65-45-12
  • High-tensile cold drawn tube is precision-honed for extended seal life
  • Tube seal: nitrile O-ring with polytemp hytrel back-up
  • High-tensile ground and polished hard chrome-plated rod for durability
  • Rod seal: standard PolyPak with B-lip design (polyurethane U-cup with nitrile O-ring expander)
  • Wiper: polyurethane

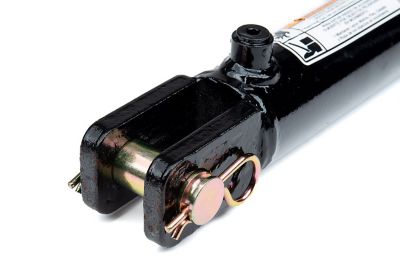

  • Cast female clevises with pins and clips are the hydraulic cylinder's end mounts
  • Pin and pin clip: high-tensile zinc-plated steel
  • Piston ID seal: O-ring
  • Piston OD seal: Hallite 755 piston seal
  • Ports: SAE O-rings
  • Welded hydraulic cylinders have a 3.5 in. bore and 20 in. stroke length
  • Measures 40.25 in. retracted and 70.25 in. extended
  • Column load: 21,350 lb.
  • Pin diameter of 1 in. and rod diameter of 1.75 in.
  • 1 year warranty
BrandMaxim
Country of OriginImported
Bore Diameter3.5 in.
Brand CompatibilityUniversal
CompatibilityUniversal
Extended Length70.25 in.
Hydraulic Cylinder TypeWelded
Maximum Operating Pressure3,000 PSI
Maximum Weight Capacity28,860 lb.
Model CompatibilityUniversal
Package Quantity1
Pin Diameter1 in.
Port SizeSAE 8
Primary MaterialSteel
Product Height0 N/A
Product Length0 N/A
Product Weight54 lb.
Product Width0 N/A
Retracted Length40.25 in.
Rod Diameter1-3/4 in.
Single/Double ActingSingle acting
Stroke Distance20 in.
Warranty1 Year
Manufacturer Part Number288448
