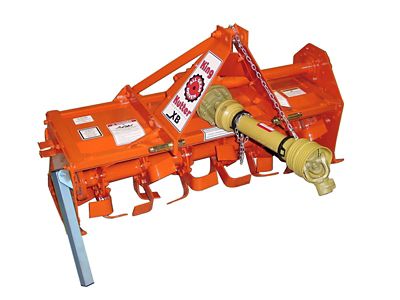

King Kutter 4 ft. Gear Drive Sub Comp. Tiller Orange, TG-48-XB-OK
Limited Time Deal
King Kutter 4 ft. Gear Drive Sub Comp. Tiller Orange, TG-48-XB-OK
Item # 173689199
$2,124.99
Sale
Was$2,499.99
Save $360.00
or
or
Neighbor’s Club Members earn points with purchases.
Limited Time Deal
King Kutter 4 ft. Gear Drive Sub Comp. Tiller Orange, TG-48-XB-OK
Item # 173689199
$2,124.99
Sale
Was$2,499.99
Save $360.00
or
or
$43/mo.† for 48 months at 0% APR or earn $101 in Rewards+ on this purchase.
Valid 5/11/2026 - 7/5/2026
Valid 5/11/2026 - 7/5/2026
Out of stock at or near
Grassland (franklin) TN
Out of stock delivering to
37027
This is a Big & Bulky item.
This item is not available
Search Stores
Temporarily unavailable
Neighbor’s Club Members earn points with purchases.
Get more work out of your sub-compact tractor with the 'patented' King Kutter XB Sub Compact Gear Drive Rotary Tiller. The TG-48-XB, for sub compact tractors up to 25 HP, has all the quality features of the full-size tillers. The heavy-duty frame and 6 tines per flange produce a better seedbed. A slip clutch PTO shaft transfers power smoothly to the gear driven center and side gearboxes. The center gearbox is made of durable cast iron, allowing for lasting use. Customize your tool exactly how you want it with the adjustable skid shoes.
For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.
- LIMITED CAT. 1, 3-POINT HITCH
- ALL GEAR DRIVEN
- SLIP CLUTCH DRIVE LINE
- SIX TINES PER FLANGE
- ADJUSTABLE SKID SHOES
- CAST IRON CENTER GEARBOX
- PATENTED PARKING STAND
| Brand | King Kutter |
|---|---|
| Country of Origin | Made in USA |
| Assembly Required | No |
| Features | Category 1, 3-point hitch |
| Frame Material | Steel |
| Hitch Type | Category 1, 3 Point |
| Maximum Tractor Horsepower | 25 hp |
| Minimum Tractor Horsepower | 18 hp |
| Number Of Flanges | 6 |
| Number Of Tines | 36 |
| Number Of Wheels | 0 |
| Product Height | 39 in. |
| Product Length | 24 in. |
| Product Weight | 489 lb. |
| Product Width | 54 in. |
| Rotor Rotation | Forward |
| Tine Length | 6 in. |
| Tine Material | Steel |
| Warranty | 1 year Limited |
| Working Depth | 6.5 in. |
| Working Width | 48 in. |
| Manufacturer Part Number | TG-48-XB-OK |
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 9 of 9 Questions
Newest questions
Q: is this imatch compatible
2 months ago1 Answer
- A: Hi Daryl! This product is not directly compatible with an imatch. Minor modifications have been made by other customers for this to work.2 months agoHelpful?
Q: Does this tiller have reverse
4 months ago1 Answer
- A: Hi Neighbor! The King Kutter 4 ft. Gear Drive Sub Compact Tiller (TG-48-XB-OK) does not feature reverse rotation.4 months agoHelpful?
Q: Does the king kutter 4 foot sub compact 3 point tiller work on the Yanmar SA221?
7 months ago1 Answer
- A: Hi Neighbor! Yes, this product should work for a Yanmar SA221.7 months agoHelpful?
Q: Will this work with 1025r john deere
a year ago1 Answer
- A: Hi Neighbor! This product would be compatible for tractors with a category 1, 3-point hitch. Please consult your owners manual if you are unsure of the hitch size.a year agoHelpful?
Q: Can I get replacement tines for this tiller through tractor supply
a year ago1 Answer
- A: Hi kiser please see your local TSC to place a Special ordera year agoHelpful?
Q: Can I order this item?
a year ago1 Answer
- A: Hi Neighbor! This item is currently unavailable, please check back at a later date!a year agoHelpful?
Q: When the description lists tractor max and min horsepower is this the engine rated HP or is this PTO horsepower ? I don’t see where it states PTO horsepower requirements.
a year ago1 Answer
- A: Hello, thank you for your question. Please reach out to King Kutter directly for assistance with this specific inquiry. ***King Kutter*** https://kingkutter.com/contactus 1-800-228-2308a year agoHelpful?
Q: Will this work with a yanmar sa424?
a year ago1 Answer
- A: Hi Neighbor! LIMITED CAT. 1, 3-POINT HITCH slip clutch PTO shafta year agoHelpful?
Q: Is this one quick hitch compatible?
a year ago1 Answer
- A: Hi Dman please check the manual on our website for connection questionsa year agoHelpful?
Q&As
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 9 of 9 Questions
Newest questions
Q: is this imatch compatible
2 months ago1 Answer
- A: Hi Daryl! This product is not directly compatible with an imatch. Minor modifications have been made by other customers for this to work.2 months agoHelpful?
Q: Does this tiller have reverse
4 months ago1 Answer
- A: Hi Neighbor! The King Kutter 4 ft. Gear Drive Sub Compact Tiller (TG-48-XB-OK) does not feature reverse rotation.4 months agoHelpful?
Q: Does the king kutter 4 foot sub compact 3 point tiller work on the Yanmar SA221?
7 months ago1 Answer
- A: Hi Neighbor! Yes, this product should work for a Yanmar SA221.7 months agoHelpful?
Q: Will this work with 1025r john deere
a year ago1 Answer
- A: Hi Neighbor! This product would be compatible for tractors with a category 1, 3-point hitch. Please consult your owners manual if you are unsure of the hitch size.a year agoHelpful?
Q: Can I get replacement tines for this tiller through tractor supply
a year ago1 Answer
- A: Hi kiser please see your local TSC to place a Special ordera year agoHelpful?
Q: Can I order this item?
a year ago1 Answer
- A: Hi Neighbor! This item is currently unavailable, please check back at a later date!a year agoHelpful?
Q: When the description lists tractor max and min horsepower is this the engine rated HP or is this PTO horsepower ? I don’t see where it states PTO horsepower requirements.
a year ago1 Answer
- A: Hello, thank you for your question. Please reach out to King Kutter directly for assistance with this specific inquiry. ***King Kutter*** https://kingkutter.com/contactus 1-800-228-2308a year agoHelpful?
Q: Will this work with a yanmar sa424?
a year ago1 Answer
- A: Hi Neighbor! LIMITED CAT. 1, 3-POINT HITCH slip clutch PTO shafta year agoHelpful?
Q: Is this one quick hitch compatible?
a year ago1 Answer
- A: Hi Dman please check the manual on our website for connection questionsa year agoHelpful?
