Hypro 6 Roller Cast Iron Sprayer Pump

Enter Zip Code for price More Info

Sale Save Up To

See price at checkout

Financing Available Learn More

This Hypro 6 Roller Cast Iron Sprayer Pump has a max flow of 21.8 GPM and maximum pressure of 300 PSI. The 6500C features 5/8 in. solid shaft that is most commonly coupled directly to a tractors PTO system.

  • Number of rollers: 6
  • Maximum speed: 1200 RPM
  • Maximum pressure: 300 PSI
  • 5/8 in. solid shaft
  • Cast iron housing
  • 1 year limited warranty
Hypro has been the worldwide leader in roller pump technology since 1947. These field proven sprayer pumps handle a wide variety of liquids for applications such as crop spraying, pest control and wash down.

Additional Product Information
The quantity requested exceeds available inventory.
Store:  Change Store
Please lower quantity or check availability at nearby stores
Check availability at nearby stores
Call Store for availability or check availability at nearby stores
Curbside / Pickup In Store
Items Shipped to Store may incur freight charge.
 Available for Pickup Today
Check availability at nearby stores

Curbside / Pickup In Store

  Change Store Item is currently not available for Pickup at this store. Check availability at nearby stores

Standard Delivery

Item is not eligible for Standard Delivery.

Standard Delivery

Item is currently not available for Standard Delivery. Check other delivery options.

Same Day Delivery

Item is currently not available for Same Day Delivery. Check other delivery options.
Curbside / Pickup and Delivery Information Click here for more details...
Add to list

Product Details

This Hypro 6 Roller Cast Iron Sprayer Pump has a max flow of 21.8 GPM and maximum pressure of 300 PSI. The 6500C features 5/8 in. solid shaft that is most commonly coupled directly to a tractors PTO system.

  • Number of rollers: 6
  • Maximum speed: 1200 RPM
  • Maximum pressure: 300 PSI
  • 5/8 in. solid shaft
  • Cast iron housing
  • 1 year limited warranty
Hypro has been the worldwide leader in roller pump technology since 1947. These field proven sprayer pumps handle a wide variety of liquids for applications such as crop spraying, pest control and wash down.

Specifications

Specification Description
Maximum Pressure 300 PSI
Product Height 5 in.
Product Width 5-9/10 in.
Warranty 1-Year Limited
Roller Material Super Rollers
Brand Hypro
Product Weight 9 lb.
Inlet Port Size 3/4 in. NPT
Number of Rollers 6
Product Length 5-9/10 in.
Maximum Flow Rate 21.8 GPM
Shaft Length 5/8 in. Solid Shaft
Outlet Port Size 3/4 in. NPT
Housing Material Cast Iron
Manufacturer Part Number 6500C

Reviews

Hypro 6 Roller Cast Iron Sprayer Pump is rated 4.4 out of 5 by 62.
Rated 5 out of 5 by from Great Pump This the same pump that came with 3 point spray unit that I bought from Tractor Supply 10 years ago. It works great!
Date published: 2020-08-31

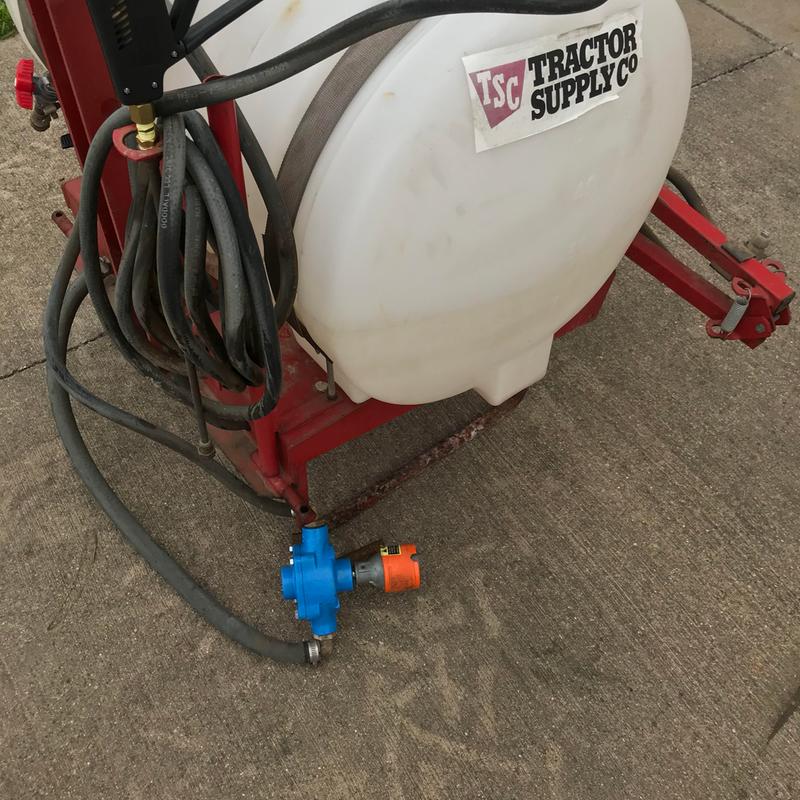

Rated 5 out of 5 by from Good Spray Pump Installed the new pump and wnet back to work within 5 minutes, pump works great
Date published: 2020-08-05
Rated 4 out of 5 by from Sprayer pump Works as it should. Installed on a 55 gallon boom sprayer. Too early for any durability rating.
Date published: 2020-07-07
Rated 2 out of 5 by from Controlling Weeds in the Field Returned the Hypro 6 sprayer pump because I was able to take apart the old one just like it. I cleaned it up, re lubricated all the parts and it worked well. They need to add a grease fitting like the old ones had or a place to oil the internal parts. It's priced on the high side.
Date published: 2020-06-12
  • y_2020, m_9, d_17, h_16
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.12
  • cp_1, bvpage1
  • co_hasreviews, tv_30, tr_32
  • loc_en_US, sid_211181599, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_tractorsupply
  • bvseo_sdk, java_sdk, bvseo-4.0.0
  • LOCAL, getContent, 3ms
  • REVIEWS, PRODUCT

Questions & Answers

what kind of fluid is the hydro system take

Asked by: dougydo
Hypro roller pumps are designed for agricultural and industrial spraying and transfer of a variety of fluids. These include insecticides, herbicides, emulsives, aromatic solvents, liquid fertilizers and many other liquids.
Answered by: DanielB
Date published: 2019-09-20

What HP motor does this pump need to work?

Asked by: RuralFirefighter
A GENERAL guide with the 6500C is 1/2HP at 50psi. If you are inteding for use with a gas engine, you will need the 6500C-R and a minimum of 2.5HP.
Answered by: DanielB
Date published: 2019-07-27

Will these pumps handle products such as liquified manure? And if so. what is largest particle?

Asked by: jerdon
If the manure is truly liquefied, yes, it will work. There can be no particles whatsoever and a screen or filter is recommended.
Answered by: DanielB
Date published: 2017-04-17

Will this pump spray foundation coating.

Asked by: Cayden
Pentair Hypro does not recommend using a Hypro roller pump (any size) to spray paints, cures, sealers, etc. If you decide to pump these products through it, the warranty would not cover the damage. If you end up using it for these products, we can’t stress enough that the pump has to be thoroughly flushed/cleaned out after every use.
Answered by: NRoberts
Date published: 2019-01-11

Can this pump pump be used with a pressure washer wand on a John Deere 540 rpm p t o ?

Asked by: Donnie beckham
You can use a 6500c on a 540 pto driven tractor. At 540 rpm the pump will produce 9.7gpm and can build up to 300psi.
Answered by: Alicia M
Date published: 2019-03-18

Can it be used as a hydraulic pump for TSC 3 pt PTO logsplitter? What all is needed to make it work well?

Asked by: Hunt 22
The manufacturer cannot guarantee this pump will work on a log splitter.
Answered by: tbelton
Date published: 2020-05-19

Does this pump come with the PTO shaft coupler?

Asked by: Michigan Massey
The pump does not come with the PTO shaft coupler. This would need to be ordered separately.
Answered by: AmandaW
Date published: 2018-06-21

Can you run pump clockwise and counterclockwise?

Asked by: Sprayer guys
There are two different options for the 6500C pump 6500C: shaft rotation is counter clockwise when looking at the shaft end 6500C-R: shaft rotation is clockwise when looking at the shaft end
Answered by: JWag
Date published: 2020-04-26
