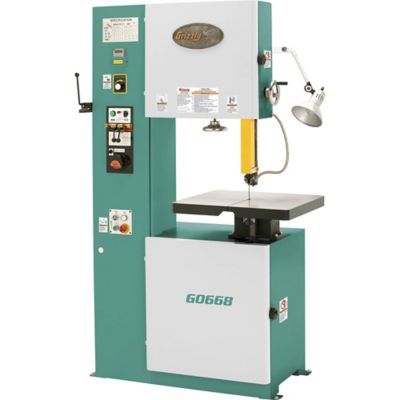

Grizzly G0668-20 in. 2 HP Vertical Metal-Cutting B, G0668
Online Only
Item # 2293977
Neighbor’s Club Members earn points with purchases.
This item is available online only
Delivery to
For delivery, this item requires a Big & Bulky handling fee.Learn more
Neighbor’s Club Members earn points with purchases.
Enjoy the benefits of a large capacity vertical bandsaw with the ability to make internal cuts in one self-contained machine. This has a built-in blade shear, welder, and grinder allows you to cut the blade, feed it through the work piece and weld it back together again.
The blade is also cooled during the cut by an on-board air compressor and air nozzle so there's no messy liquid coolant system. The variable blade speed control lets you dial in the optimum speed for any type of metal-cutting job and the balanced cast-iron wheels ensure extremely smooth operation.
For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.
Looking for more information on tools? Check out our guide on essential woodworking power tools in the product documents section.
- Main motor: 2 HP, 220V, 3-phase, 6.6A
- Grinder motor: 1/8 HP, 220V, single-phase, 0.6A
- Maximum cutting height: 12-5/8"
- Blade speed: Variable, 105—2102 FPM
- Included blade size: 157" x 3/8" x 10 TPI
- Overall dimensions: 47-1/4" W x 29-1/2" D x 77-1/8" H
| Brand | Grizzly |
|---|---|
| Country of Origin | Imported |
| Amperage | 6.6 A |
| Blade Change Type | Keyless |
| Cord Length | 6.5 ft. |
| Cut Through | Metal |
| Dust Collection Method | None |
| Features | Digital Speed Display |
| Horsepower | 2 HP |
| Housing Material | Cast iron |
| Maximum Blade Length | 159.75 in. |
| Maximum Blade Width | 0.75 in. |
| Maximum Cutting Width | 19.75 in. |
| Maximum Speed | 2102 FMP |
| Minimum Blade Length | 154.5 in. |
| Minimum Blade Width | 1/8 in. |
| Minimum Speed | 105 FMP |
| Number of Speeds | 1997 |
| Portable or Stationary | Stationary |
| Power Type | Electric |
| Product Height | 77.625 in. |
| Product Length | 29.5 in. |
| Product Weight | 717 lb. |
| Product Width | 47.24 in. |
| Rectangle Length Capacity | 10 in. |
| Rectangle Width Capacity | 19.75 in. |
| Round Capacity | 19 in. |
| Table Height From Floor | 36.625 in. |
| Table Length | 23.5 in. |
| Table Tilt Range | None |
| Table Width | 21.625 in. |
| Variable Speed | Variable Speed |
| Voltage | 220 V |
| Warranty | 1 |
| Manufacturer Part Number | G0668 |
