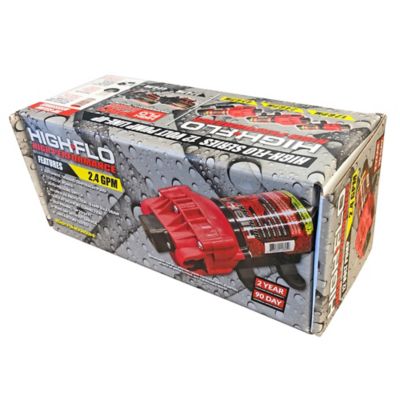

Fimco 2.4 GPM 12V High-Flo High-Performance Pump
Item # 1350426
Add this item to unlock free delivery!
Get everything you need
Neighbor’s Club Members earn points with purchases.
Add this item to unlock free delivery!
Shopping at
Grassland (franklin) TN
Delivery to
Free standard delivery on online footwear & Clothing purchases of $49 and over.
Get everything you need
Neighbor’s Club Members earn points with purchases.
The Fimco 2.4 GPM 12V High-Performance Pump sets the standard for electric pumps. The quick-connect convenience paired with premium parts makes this innovative product a great choice for your spot spraying or broadcast spraying needs. With 60 PSI maximum pressure, this self-priming pump delivers increased flow rates and a longer lifespan. In-line fuse protection, chemical-resistant elastomers, quick-attach port fittings, a fan-cooled motor and ball-bearing drive make this Fimco High-Performance Series Sprayer Pump durable enough to run dry without damage.
For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.
- 2.4 GPM automatic-demand diaphragm pump
- 12VDC power sprayer pump
- Integrated demand switch automatically shuts off at maximum pressure of 60 PSI to conserve energy
- In-line fuse protection (8A max draw)
- Quick-attach ports: 3/4-in. inlet; 3/4-in. outlet
- Self-priming up to 14 ft. increases efficiency
- Running dry will not cause damage or limit reliability
- Replacement sprayer pump is 100% factory tested for quality assurance
- Chemical-resistant elastomers provide increased flow rate, delivering superior performance
- Fan-cooled motor in the electric sprayer pump delivers consistent performance under heavy load
- Ball-bearing drive
- Backed by a 2-year (consumer) and 90-day (commercial use) warranty
- Built-in check valves help maintain pressure and prevent backflow
- Fimco High-Performance Series Pump replaces part numbers 5277981, 5275087, 5275703, 5275497, 5275016 and 5281371
- Max temperature: 130 degrees F
| Brand | Fimco |
|---|---|
| Country of Origin | Imported |
| Compatibility | Fimco, TSC Sprayers |
| Inlet Diameter | 3/4 in. |
| Maximum Flow Rate | 2.4 GPM |
| Maximum Operating Pressure | 60 PSI |
| Maximum Operating Temperature | 130 degrees F |
| OEM Replacement | 5277981, 5275087, 5275703, 5275497, 5275016, 5281371 |
| Package Quantity | 1 |
| Primary Color | Red |
| Primary Material | Steel |
| Product Height | 3-1/4 in. |
| Product Length | 8-1/2 in. |
| Product Weight | 3 lb. 0.6 oz. |
| Product Width | 4 in. |
| Pump/Repair Product Type | Pumps |
| Warranty | 2 Year Consumer, 90 Day Commercial |
| Manufacturer Part Number | 5151087 |
Q: Does this pump work on shallow water 1/2 to 1 inch
4 days ago- A: No, this pump is designed for spraying applications, not as a transfer or dewatering pump. To pull from 1/2" to 1" of shallow water, you would need a specialized low-suction transfer pump or puddle pump. Standard 12V diaphragm pumps will suck air once the water level drops too low and will run dry.3 days agoHelpful?
Q: Will this work on a camper for a water pump
7 days ago- A: While we know some folks have adapted these pumps (including our 2.4 GPM and 4.5 GPM models) for camper setups, we still strongly advise against it. These are agricultural sprayer pumps engineered specifically for pesticides and fertilizers, so the internal components are not food-grade or certified safe for drinking (potable) water. For a camper water supply, you'll want to stick with a pump specifically rated for RV freshwater systems.5 days agoHelpful?
Q: Does it come with standard hose fittings
a month ago- A: Yes, it comes with quick-connect port fittings included in the box. This pump features Fimco's Quick-Attach (QA) port system (slide-in fittings secured with locking clips) and includes three fittings: (1) 3/8" Hose Barb fitting (for 3/8" ID hose), (1) 1/2" Hose Barb fitting (for 1/2" ID hose), (1) 1/2" Male NPT threaded fitting (for threaded plumbing connections). This gives you everything you need out of the box to connect standard sprayer hose or adapt to 1/2" threaded lines.a month agoHelpful?
Q: Could it be use in a rv
2 months ago- A: The Fimco 2.4 GPM High-Flo pump is a reliable 12V diaphragm pump, it is not recommended for use in an RV's potable water system. Here are the key reasons why it isn't suitable for that specific application: Not Food-Grade: Fimco pumps are designed for agricultural chemicals and fertilizers. The internal components, seals, and plastics are not certified "food-grade" or "potable water safe. Pressure Rating: This pump has a factory-set demand switch at 60 PSI. Most standard RV plumbing systems are designed to operate at a lower pressure (typically around 40–50 PSI). Running a system at 60 PSI may exceed the rating of your RV’s existing faucets, PEX tubing, or fittings, creating a significant risk of leaks or burst pipes. Noise Levels: Agricultural pumps are built for utility and are often quite loud during operation. Dedicated RV water pumps are specifically engineered with sound-dampening mounts and quieter internal designs for residential-style living spaces. Intended Use: The manufacturer specifically states that these pumps are designed for water and aqueous solutions of common pesticides. Using them in a pressurized potable water system falls outside the intended engineering and would likely void any warranty. Recommendation: If you need a replacement pump for your RV, look for a pump specifically labeled as "RV Potable Water Pump." These units are designed to be food-safe, quieter, and correctly pressure-regulated to match standard RV plumbing systems.a month agoHelpful?
Q: What size hose barb fittings come with the pump? I have three sizes
4 months ago- A: comes with 1/2" and 3/8" HB port fittings, plus a 1/2" MNPT port fitting.4 months agoHelpful?
Q: Can insecticide be applied with this pump?
5 months ago- A: Yes, you can run most insecticides through the pump. However, you want to make sure to follow maintenance instructions for cleaning after use, especially if it contains an aromatic xylene, which is a petroleum distillate.5 months agoHelpful?
Q: Do this work for a 15 gallon 1.5 GPM sprayer?
a year ago- A: if you're referring to a spray wand that is 1.5 GPM, you'll probably have issues with surging, pulsating.a year agoHelpful?
Q: Does this fot a 30 gallon pull behind county line sprayer
a year ago- A: If your pump is currently a 2.1 GPM or 2.4 GPM, this would be a direct replacement.a year agoHelpful?
Q: Can this pump be repaired?
a year ago- A: Not sure what is going on with the pump, but there are replacement parts depending on the issue. Please contact our customer service team at 800-831-0027 and they'll be happy to assist you.a year agoHelpful?
Q: Will this pump lift 20 feet up ?
a year ago- A: 14' is the most for the lift on this pump.a year agoHelpful?
Q&As
Q: Does this pump work on shallow water 1/2 to 1 inch
4 days ago- A: No, this pump is designed for spraying applications, not as a transfer or dewatering pump. To pull from 1/2" to 1" of shallow water, you would need a specialized low-suction transfer pump or puddle pump. Standard 12V diaphragm pumps will suck air once the water level drops too low and will run dry.3 days agoHelpful?
Q: Will this work on a camper for a water pump
7 days ago- A: While we know some folks have adapted these pumps (including our 2.4 GPM and 4.5 GPM models) for camper setups, we still strongly advise against it. These are agricultural sprayer pumps engineered specifically for pesticides and fertilizers, so the internal components are not food-grade or certified safe for drinking (potable) water. For a camper water supply, you'll want to stick with a pump specifically rated for RV freshwater systems.5 days agoHelpful?
Q: Does it come with standard hose fittings
a month ago- A: Yes, it comes with quick-connect port fittings included in the box. This pump features Fimco's Quick-Attach (QA) port system (slide-in fittings secured with locking clips) and includes three fittings: (1) 3/8" Hose Barb fitting (for 3/8" ID hose), (1) 1/2" Hose Barb fitting (for 1/2" ID hose), (1) 1/2" Male NPT threaded fitting (for threaded plumbing connections). This gives you everything you need out of the box to connect standard sprayer hose or adapt to 1/2" threaded lines.a month agoHelpful?
Q: Could it be use in a rv
2 months ago- A: The Fimco 2.4 GPM High-Flo pump is a reliable 12V diaphragm pump, it is not recommended for use in an RV's potable water system. Here are the key reasons why it isn't suitable for that specific application: Not Food-Grade: Fimco pumps are designed for agricultural chemicals and fertilizers. The internal components, seals, and plastics are not certified "food-grade" or "potable water safe. Pressure Rating: This pump has a factory-set demand switch at 60 PSI. Most standard RV plumbing systems are designed to operate at a lower pressure (typically around 40–50 PSI). Running a system at 60 PSI may exceed the rating of your RV’s existing faucets, PEX tubing, or fittings, creating a significant risk of leaks or burst pipes. Noise Levels: Agricultural pumps are built for utility and are often quite loud during operation. Dedicated RV water pumps are specifically engineered with sound-dampening mounts and quieter internal designs for residential-style living spaces. Intended Use: The manufacturer specifically states that these pumps are designed for water and aqueous solutions of common pesticides. Using them in a pressurized potable water system falls outside the intended engineering and would likely void any warranty. Recommendation: If you need a replacement pump for your RV, look for a pump specifically labeled as "RV Potable Water Pump." These units are designed to be food-safe, quieter, and correctly pressure-regulated to match standard RV plumbing systems.a month agoHelpful?
Q: What size hose barb fittings come with the pump? I have three sizes
4 months ago- A: comes with 1/2" and 3/8" HB port fittings, plus a 1/2" MNPT port fitting.4 months agoHelpful?
Q: Can insecticide be applied with this pump?
5 months ago- A: Yes, you can run most insecticides through the pump. However, you want to make sure to follow maintenance instructions for cleaning after use, especially if it contains an aromatic xylene, which is a petroleum distillate.5 months agoHelpful?
Q: Do this work for a 15 gallon 1.5 GPM sprayer?
a year ago- A: if you're referring to a spray wand that is 1.5 GPM, you'll probably have issues with surging, pulsating.a year agoHelpful?
Q: Does this fot a 30 gallon pull behind county line sprayer
a year ago- A: If your pump is currently a 2.1 GPM or 2.4 GPM, this would be a direct replacement.a year agoHelpful?
Q: Can this pump be repaired?
a year ago- A: Not sure what is going on with the pump, but there are replacement parts depending on the issue. Please contact our customer service team at 800-831-0027 and they'll be happy to assist you.a year agoHelpful?
Q: Will this pump lift 20 feet up ?
a year ago- A: 14' is the most for the lift on this pump.a year agoHelpful?
Similar Items
Items You May Like
Reviews
Summary of Reviews
- English
- German
- French
- Spanish
- Portuguese
- Italian
- Korean
- Chinese
- Japanese
- Arabic
- purchase
- installation
- price
- spraying
- quality
- warranty
- satisfaction
- connections
The pump works great!
Yes, I recommend this product.
For future reference, this pump should include the quick-attach fittings needed for operation right in the box. If any fittings are ever missing or different sizes are needed, please reach out directly to Fimco Customer Support. We are always happy to send the correct factory fittings straight to your door so you don't have to make an extra trip to town!
Fimco pump replacement on 25 gal sprayer
Yes, I recommend this product.
Easy to replace. (Good thing!)
Not Enough Connectors
No, I do not recommend this product.
