Fimco 12V High-Flo High-Performance Demand Pump, 1.2 GPM
$79.99
Fimco 12V High-Flo High-Performance Demand Pump, 1.2 GPM
Fimco 12V High-Flo High-Performance Demand Pump, 1.2 GPM
4.1179 Reviews
Item # 135042799
$79.99
Get everything you need
Neighbor’s Club Members earn points with purchases.
Fimco 12V High-Flo High-Performance Demand Pump, 1.2 GPM
4.1179 Reviews
Item # 135042799
$79.99
New Cardmembers earn a $20 Reward‡ with qualifying purchase of $20 or more plus earn 5% in Rewards+ on this purchase. Valid through 6/28/26.Apply now
Shopping at
Grassland (franklin) TN
Delivery to
37027
Free standard delivery on online footwear & Clothing purchases of $49 and over.
Get everything you need
Neighbor’s Club Members earn points with purchases.
The Fimco 1.2 GPM 12V High-Flo High-Performance Demand Pump sets the standard for electric pumps. The quick-connect convenience paired with premium parts makes this innovative model a great choice for your spot or broadcast spraying needs. With 60 PSI maximum pressure, this Fimco replacement sprayer pump delivers increased flow rates and a longer lifespan. An integrated demand switch automatically shuts it off at maximum pressure to conserve energy.
For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.
- 1.2 GPM automatic-demand diaphragm electric pump for spot spraying or broadcast spraying needs
- Fimco 12VDC power sprayer pump is equipped with a ball-bearing drive
- Integrated demand switch automatically shuts off the sprayer pump at a maximum pressure of 60 PSI

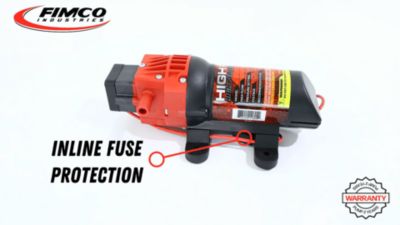

- In-line fuse protection - 4A max draw
- 3/8-in. hose barb connection
- Self-priming up to 8 ft. increases efficiency and running dry will not damage pump or limit reliability
- Built-in check valves help maintain pressure and prevent backflow
- 100% factory tested for quality assurance
- Chemically resistant elastomers provide increased flow rate, delivering superior performance
- Internally fan-cooled motor delivers consistent performance under heavy load
- Backed by a 2-year (consumer) and 90-day (commercial use) warranty
- Replaces pump part numbers 5281370, 5274889, 5275086, 5277980, 5275702, 5275496, 5273882 and 5275015
- Max temperature: 130 degrees F
| Brand | Fimco |
|---|---|
| Country of Origin | Imported |
| Compatibility | Fimco, TSC Sprayers |
| Discharge Connection | Male |
| Discharge Port Diameter | 0.375 in. |
| Inlet Connection | Barb |
| Inlet Diameter | 0.375 in. |
| Maximum Flow Rate | 1.2 GPM |
| Maximum Operating Pressure | 60 PSI |
| Maximum Operating Temperature | 130 degrees F |
| OEM Replacement | 5281370, 5274889, 5275086, 5277980, 5275702, 5275496, 5273882 and 5275015 |
| Package Quantity | 1 |
| Primary Color | Red |
| Primary Material | Steel |
| Product Height | 2-1/2 in. |
| Product Length | 7 in. |
| Product Weight | 1 lb. 4.9 oz. |
| Product Width | 4 in. |
| Pump/Repair Product Type | Pumps |
| Warranty | 2 Year Consumer, 90 Day Commercial |
| Manufacturer Part Number | 5151086 |
Start typing your question and we'll check if it was already asked and answered.
1 - 7 of 7 Questions
Newest questions
Q: How to install the strainer filter.
10 months ago1 Answer
- A: Steve, your sprayer should have a filter on your intake line and the intake line is what connects to the pump. There is no strainer filter in the pump.10 months agoHelpful?
Q: Is this ok to use with potable drinking water
11 months ago1 Answer
- A: Norm, the pumps are not rated for potable water.11 months agoHelpful?
Q: Does this unit run quiet?
2 years ago2 Answers
- A: Sidney, it is not a quiet run motor, just like most motors for example an air compressor or even your blower motor for your air conditioning, they are all going to put out some noise. And this motor is no different, it will not be quiet.2 years agoHelpful?
Q: will this one work better than the last 2 that only lasted 1 summer each?
4 years ago1 Answer
- A: Yes, it will work.4 years agoHelpful?
Q: will this pump fit other 15 gallon sprayer tanks?
5 years ago1 Answer
- A: Compatibility: Fimco, TSC Sprayers5 years agoHelpful?
Q: Wil this work on a 2 nozzle boom?
5 years ago1 Answer
- A: Yes, it will.5 years agoHelpful?
Q: will this pump spray farther than the 1.0 gpm 35 psi economy pump that came with my 10 gal spot sprayer
7 years ago1 Answer
- A: There is an improvement of 2-3 feet in vertical throw7 years agoHelpful?
Similar Items
-
-
-
-
-
-
-
-
-
Top Rated
-
-
-
Items You May Like
Customers Also Bought
-
-
Top Rated
-
-
-
-
-
-
-
-
-
-
Top Rated
Reviews
Summary of Reviews
The product has received mixed reviews. Many customers are satisfied with its performance, describing it as powerful and providing good pressure. However, a significant number have reported issues wit...
Most Helpful Favorable Review
5 out of 5 stars.
Replacement pump
5 years ago
I had the old pump off and this one mounted and running in under 10 minutes and it works great.
It's the perfect size for a wand sprayer and my 15 gallon tank.
3 people found this helpful
Show Reviews:
Most Helpful Critical Review
1 out of 5 stars.
worked one tank, then just runs and low pressure
5 years ago
worked great for the first tank or so. 2nd tank the pump never made pressure to shut off in between sprays. 3rd tank it just runs and runs and low pressure.
6 people found this helpful
Show Reviews:
Customer Images and Videos
- purchase
- quality
- price
- spraying
- installation
- satisfaction
- batteries
- grass
1 to 4 of 179 Reviews .
1 – 4 of 179 Reviews
Most Recent
Anonymous
Norcal
Review 1
5 out of 5 stars.
Perfect replacement
2 months ago
A little upgrade for my old Fimco sprayer. Perfect fit and it was in stock always a bonus. Ordered online ready for pick in less than a hour. Kudo's all around
SweepstakesYes
Yes, I recommend this product.
Louisiana
Review 1
1 out of 5 stars.
2 months ago
Do not buy this pump! I’m on my 3rd pump and every single one has done the same thing. Sprays at pressure for 1 second then losses all pressure and barely sprays
No, I do not recommend this product.
Response from Fimco Industries:
2 months ago
Fimco Industries
Jonathan, please call our customer service team at 800-831-0027 to determine as to what is going on with your pump. You can ask for Jeff and he'll be happy to assist you.
Yukon OK
Review 1
5 out of 5 stars.
Fimco Sprayer Replacement Motor
7 months ago
Purchased new motor for my Fimco 20gallon sprayer. It was easy to install and allowed me to get right back to work
Yes, I recommend this product.
Response from Fimco Industries:
7 months ago
Fimco Industries
Thank you for your purchase of the 1.2 GPM high-performance pump from Tractor Supply. Glad that you're happy with the pump and the ease of installing it, allowing you to get back to your spraying.
Review 1
5 out of 5 stars.
Replacement pump
a year ago
East install. Works well.
Yes, I recommend this product.
Response from Fimco Industries:
a year ago
Fimco Industries
Mike, thank you for your purchase of the 1.2 GPM high-performance pump from Tractor Supply. Glad that found it easy to install and that it's working well for you.
