Fimco 2.4 GPM 12V High-Flo High-Performance Pump
Fimco 2.4 GPM 12V High-Flo High-Performance Pump
Item # 135042699
Stocked & Ready
$99.99
Get everything you need
Neighbor’s Club Members earn points with purchases.
$99.99
New Cardmembers earn a $20 Reward‡ with qualifying purchase of $20 or more plus earn 5% in Rewards+ on this purchase. Valid through 8/9/26.
Shopping at
Grassland (franklin) TN
Delivery to
Free standard delivery on online footwear & Clothing purchases of $49 and over.
Get everything you need
Neighbor’s Club Members earn points with purchases.
The Fimco 2.4 GPM 12V High-Performance Pump sets the standard for electric pumps. The quick-connect convenience paired with premium parts makes this innovative product a great choice for your spot spraying or broadcast spraying needs. With 60 PSI maximum pressure, this self-priming pump delivers increased flow rates and a longer lifespan. In-line fuse protection, chemical-resistant elastomers, quick-attach port fittings, a fan-cooled motor and ball-bearing drive make this Fimco High-Performance Series Sprayer Pump durable enough to run dry without damage.
For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.
- 2.4 GPM automatic-demand diaphragm pump
- 12VDC power sprayer pump
- Integrated demand switch automatically shuts off at maximum pressure of 60 PSI to conserve energy
- In-line fuse protection (8A max draw)
- Quick-attach ports: 3/4-in. inlet; 3/4-in. outlet
- Self-priming up to 14 ft. increases efficiency
- Running dry will not cause damage or limit reliability
- Replacement sprayer pump is 100% factory tested for quality assurance
- Chemical-resistant elastomers provide increased flow rate, delivering superior performance
- Fan-cooled motor in the electric sprayer pump delivers consistent performance under heavy load
- Ball-bearing drive
- Backed by a 2-year (consumer) and 90-day (commercial use) warranty
- Built-in check valves help maintain pressure and prevent backflow
- Fimco High-Performance Series Pump replaces part numbers 5277981, 5275087, 5275703, 5275497, 5275016 and 5281371
- Max temperature: 130 degrees F
| Brand | Fimco |
|---|---|
| Country of Origin | Imported |
| Compatibility | Fimco, TSC Sprayers |
| Inlet Diameter | 3/4 in. |
| Maximum Flow Rate | 2.4 GPM |
| Maximum Operating Pressure | 60 PSI |
| Maximum Operating Temperature | 130 degrees F |
| OEM Replacement | 5277981, 5275087, 5275703, 5275497, 5275016, 5281371 |
| Package Quantity | 1 |
| Primary Color | Red |
| Primary Material | Steel |
| Product Height | 3-1/4 in. |
| Product Length | 8-1/2 in. |
| Product Weight | 3 lb. 0.6 oz. |
| Product Width | 4 in. |
| Pump/Repair Product Type | Pumps |
| Warranty | 2 Year Consumer, 90 Day Commercial |
| Manufacturer Part Number | 5151087 |
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 10 of 35 Questions
Newest questions
Q: Does it come with standard hose fittings
2 days ago1 Answer
- A: Yes, it comes with quick-connect port fittings included in the box. This pump features Fimco's Quick-Attach (QA) port system (slide-in fittings secured with locking clips) and includes three fittings: (1) 3/8" Hose Barb fitting (for 3/8" ID hose), (1) 1/2" Hose Barb fitting (for 1/2" ID hose), (1) 1/2" Male NPT threaded fitting (for threaded plumbing connections). This gives you everything you need out of the box to connect standard sprayer hose or adapt to 1/2" threaded lines.a day agoHelpful?
Q: Could it be use in a rv
22 days ago2 Answers
- A: The Fimco 2.4 GPM High-Flo pump is a reliable 12V diaphragm pump, it is not recommended for use in an RV's potable water system. Here are the key reasons why it isn't suitable for that specific application: Not Food-Grade: Fimco pumps are designed for agricultural chemicals and fertilizers. The internal components, seals, and plastics are not certified "food-grade" or "potable water safe. Pressure Rating: This pump has a factory-set demand switch at 60 PSI. Most standard RV plumbing systems are designed to operate at a lower pressure (typically around 40–50 PSI). Running a system at 60 PSI may exceed the rating of your RV’s existing faucets, PEX tubing, or fittings, creating a significant risk of leaks or burst pipes. Noise Levels: Agricultural pumps are built for utility and are often quite loud during operation. Dedicated RV water pumps are specifically engineered with sound-dampening mounts and quieter internal designs for residential-style living spaces. Intended Use: The manufacturer specifically states that these pumps are designed for water and aqueous solutions of common pesticides. Using them in a pressurized potable water system falls outside the intended engineering and would likely void any warranty. Recommendation: If you need a replacement pump for your RV, look for a pump specifically labeled as "RV Potable Water Pump." These units are designed to be food-safe, quieter, and correctly pressure-regulated to match standard RV plumbing systems.19 days agoHelpful?
Q: What size hose barb fittings come with the pump? I have three sizes
3 months ago1 Answer
- A: comes with 1/2" and 3/8" HB port fittings, plus a 1/2" MNPT port fitting.3 months agoHelpful?
Q: Can insecticide be applied with this pump?
4 months ago1 Answer
- A: Yes, you can run most insecticides through the pump. However, you want to make sure to follow maintenance instructions for cleaning after use, especially if it contains an aromatic xylene, which is a petroleum distillate.4 months agoHelpful?
Q: Do this work for a 15 gallon 1.5 GPM sprayer?
11 months ago1 Answer
- A: if you're referring to a spray wand that is 1.5 GPM, you'll probably have issues with surging, pulsating.11 months agoHelpful?
Q: Does this fot a 30 gallon pull behind county line sprayer
11 months ago1 Answer
- A: If your pump is currently a 2.1 GPM or 2.4 GPM, this would be a direct replacement.11 months agoHelpful?
Q: Can this pump be repaired?
a year ago1 Answer
- A: Not sure what is going on with the pump, but there are replacement parts depending on the issue. Please contact our customer service team at 800-831-0027 and they'll be happy to assist you.a year agoHelpful?
Q: Will this pump lift 20 feet up ?
a year ago1 Answer
- A: 14' is the most for the lift on this pump.a year agoHelpful?
Q: how many amps and watts does a 2.4 gpm pump need
a year ago1 Answer
- A: The pump has a 15 amp fuse inline and also has a 6.2 amp draw.a year agoHelpful?
Q: Can this pump work with 10w-30 oil
a year ago1 Answer
- A: It is not recommended to run any kind of petroleum products through the 12V pumps.a year agoHelpful?
1 - 10 of 35 Questions
Q&As
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 10 of 35 Questions
Newest questions
Q: Does it come with standard hose fittings
2 days ago1 Answer
- A: Yes, it comes with quick-connect port fittings included in the box. This pump features Fimco's Quick-Attach (QA) port system (slide-in fittings secured with locking clips) and includes three fittings: (1) 3/8" Hose Barb fitting (for 3/8" ID hose), (1) 1/2" Hose Barb fitting (for 1/2" ID hose), (1) 1/2" Male NPT threaded fitting (for threaded plumbing connections). This gives you everything you need out of the box to connect standard sprayer hose or adapt to 1/2" threaded lines.a day agoHelpful?
Q: Could it be use in a rv
22 days ago2 Answers
- A: The Fimco 2.4 GPM High-Flo pump is a reliable 12V diaphragm pump, it is not recommended for use in an RV's potable water system. Here are the key reasons why it isn't suitable for that specific application: Not Food-Grade: Fimco pumps are designed for agricultural chemicals and fertilizers. The internal components, seals, and plastics are not certified "food-grade" or "potable water safe. Pressure Rating: This pump has a factory-set demand switch at 60 PSI. Most standard RV plumbing systems are designed to operate at a lower pressure (typically around 40–50 PSI). Running a system at 60 PSI may exceed the rating of your RV’s existing faucets, PEX tubing, or fittings, creating a significant risk of leaks or burst pipes. Noise Levels: Agricultural pumps are built for utility and are often quite loud during operation. Dedicated RV water pumps are specifically engineered with sound-dampening mounts and quieter internal designs for residential-style living spaces. Intended Use: The manufacturer specifically states that these pumps are designed for water and aqueous solutions of common pesticides. Using them in a pressurized potable water system falls outside the intended engineering and would likely void any warranty. Recommendation: If you need a replacement pump for your RV, look for a pump specifically labeled as "RV Potable Water Pump." These units are designed to be food-safe, quieter, and correctly pressure-regulated to match standard RV plumbing systems.19 days agoHelpful?
Q: What size hose barb fittings come with the pump? I have three sizes
3 months ago1 Answer
- A: comes with 1/2" and 3/8" HB port fittings, plus a 1/2" MNPT port fitting.3 months agoHelpful?
Q: Can insecticide be applied with this pump?
4 months ago1 Answer
- A: Yes, you can run most insecticides through the pump. However, you want to make sure to follow maintenance instructions for cleaning after use, especially if it contains an aromatic xylene, which is a petroleum distillate.4 months agoHelpful?
Q: Do this work for a 15 gallon 1.5 GPM sprayer?
11 months ago1 Answer
- A: if you're referring to a spray wand that is 1.5 GPM, you'll probably have issues with surging, pulsating.11 months agoHelpful?
Q: Does this fot a 30 gallon pull behind county line sprayer
11 months ago1 Answer
- A: If your pump is currently a 2.1 GPM or 2.4 GPM, this would be a direct replacement.11 months agoHelpful?
Q: Can this pump be repaired?
a year ago1 Answer
- A: Not sure what is going on with the pump, but there are replacement parts depending on the issue. Please contact our customer service team at 800-831-0027 and they'll be happy to assist you.a year agoHelpful?
Q: Will this pump lift 20 feet up ?
a year ago1 Answer
- A: 14' is the most for the lift on this pump.a year agoHelpful?
Q: how many amps and watts does a 2.4 gpm pump need
a year ago1 Answer
- A: The pump has a 15 amp fuse inline and also has a 6.2 amp draw.a year agoHelpful?
Q: Can this pump work with 10w-30 oil
a year ago1 Answer
- A: It is not recommended to run any kind of petroleum products through the 12V pumps.a year agoHelpful?
1 - 10 of 35 Questions
Similar Items
-
-
-
-
-
-
-
-
Top Rated
-
Top Rated
-
-
-
Reviews
- purchase
- installation
- price
- spraying
- warranty
- quality
- satisfaction
- connections
1 to 4 of 778 Reviews .
1 – 4 of 778 Reviews
Most Recent
Review 1
3 out of 5 stars.
Easy to replace. (Good thing!)
25 days ago
Pump works for a while. If getting a replacement for 40 gal, suggest buy two since I think that product is being deprecated. I think the pressure switch might be fragile. I know I cracked it once. Another time just bumped it. It didn’t crack but I lost continuity and fuse kept blowing.
Response from Fimco Industries:
25 days ago
Fimco Industries
Thank you for taking the time to share your feedback regarding the Fimco High-Flo Pump. We appreciate your insights, as they help us improve our products and the experience for all our users. I am sorry to hear about the frustrations you’ve experienced with the pressure switch. We understand how important it is to have equipment that is both durable and reliable. I would like to let you know that these pumps are covered by a 2-year warranty. If you are experiencing any ongoing issues, please reach out to our customer service team directly. Our team can help you troubleshoot the specific issues you've encountered with continuity and the pressure switch, and if the unit is found to be defective, we can assist you with a warranty claim to get you back up and running. You can reach our customer service team at 800-831-0027. Thank you again for your feedback, and we look forward to assisting you.
TEXAS
Review 1
1 out of 5 stars.
Not Enough Connectors
27 days ago
Picked up1 yesterday. Got home and there were 3 connectors that fit the 3/4 ports on each side of the pump. 1 each 1/2 inch MNPT outlet, 1 each 1/2 inch barb and 1 each 3/8 inch barb. What " brain trust" decided to put a single connector of each size/type in the box with the pump? I'm 20 miles from my nearest TSC and was not anxious to make the trip a second time to look for more parts that should have been included in the box. TSC website shows additional fittings are available for $12.99 a package. Great marketing idea to sell what should come with the pump. No problem, I ordered what I needed from another source and it will be delivered tomorrow. I have gone directly to Fimco to ask the same question.
No, I do not recommend this product.
Review 1
4 out of 5 stars.
Review for Fimco 2.4 GPM 12V High-Flo High-Perform
a month ago

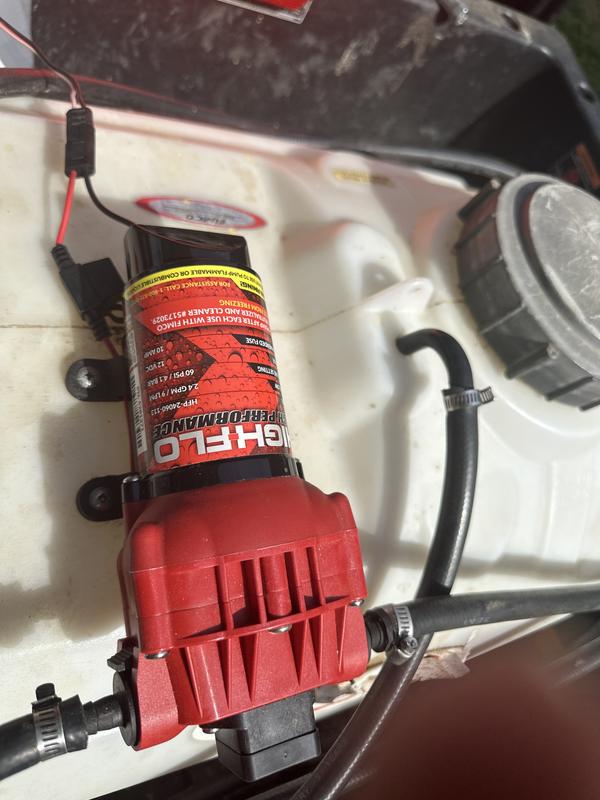

needed for fimco 25 gallon sprayer with 12'-0" boom. great for what I needed. this was a replacement for original motor. only thing I didn't realize is that original motor had external on/off switch. new motor has no way to on/off unless you purchase an external remote, which I purchased and worked well after a few uses. just another cost on top of the motor. got to look a little harder at image the next time.
Response from Fimco Industries:
a month ago
Fimco Industries
Thank you for sharing your review! We are glad to hear the Fimco 2.4 GPM 12V High-Flo High-Performance Pump is working great as a replacement for your 25-gallon boom sprayer. We appreciate your honest feedback regarding the power switch. We wanted to clarify a quick detail regarding the on/off control. Over 10 years ago, we removed the power switch from the pump body itself, as it wasn't necessary to have two switches, one on the pump and one on the lead wire. However, we are happy to hear that the external remote solved the issue and is working well for you! Thanks again for choosing us, and happy spraying!
New Mexico
Review 1
1 out of 5 stars.
Overpriced unreliable
8 months ago
When they work they are great but every bit of the electronics and mechanical pump are suspect to failure yearly. Not worth the money spent. If they were half the price and marketed as disposable I’d be more amenable to supporting them with a review
No, I do not recommend this product.
Response from Fimco Industries:
8 months ago
Fimco Industries
Cory, sorry you're having an issue with the pumps. Please contact our customer service team at 800-831-0027 and they'll be happy to assist you.
