Fimco 25 gal. 3-Nozzle 12V Broadcast Boom ATV Sprayer
Fimco 25 gal. 3-Nozzle 12V Broadcast Boom ATV Sprayer
Item # 1350443
Stocked & Ready
$549.99
or
or
Get everything you need
Neighbor’s Club Members earn points with purchases.
$549.99
or
or
$46/mo.† suggested payments with 12 Months Financing or earn $27 in Rewards+ on this purchase.
Shopping at
Grassland (franklin) TN
Delivery to
Pickup Nearby at THOMPSONS STATION TN(14) miles Free
Ship to store at Grassland (franklin) TN
Free standard delivery on online footwear & Clothing purchases of $49 and over.
Get everything you need
Neighbor’s Club Members earn points with purchases.
The Fimco 25 gal. Broadcast Boom ATV Sprayer includes a chemical-resistant hose that provides up to 40 ft. of spraying diameter. The nozzle bodies and spray tips include on/off valves, as well as drip-free nozzle technology for smooth application. This agriculture sprayer comes with quick-release clamps that allow the user to quickly and easily install and remove a boom. It delivers spray patterns up to 40 ft. (horizontal) and 28 ft. (vertical).
For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.
- 4.5 GPM /60 PSI automatic demand diaphragm pump
- When combined with 4.5 GPM pump, Fimco sprayer output is enhanced and it delivers spray patterns up to 40 ft. (horizontal) and 28 ft. (vertical)
- Chemical-resistant hose provides up to 40 ft. of spraying diameter
- Nozzle bodies and spray tips include on/off valves and drip-free nozzle technology
- 3-nozzle spray pattern delivers 36 ft. of total coverage
- Quick-release boom clamps allow you to install and remove a boom with ease
- 25-gal. capacity lets you tackle larger jobs with this Broadcast Boom ATV sprayer
- High-performance 12V pumps
- Includes adjustable spray tip
- Hose measures 20 ft. x 3/8 in.
- Fimco exclusive handgun/hose brackets secure the hose to this agriculture sprayer
- Each end nozzle sprays 15 ft. and the center nozzle sprays 6 ft. (nozzles can be used independently)
- Made in the USA
- Please note: Use protection on both our 8-ft. lead wire and pump
| Brand | Fimco |
|---|---|
| Country of Origin | Made in USA |
| Boom Maximum Spray Width | 30 ft |
| Boom Nozzle Count | 3 |
| Boom Style | Fixed Boom |
| Chemical Compatibility | Herbicide, Fertilizer, Fungicide, Insecticide |
| Features | None |
| Hose Diameter | 3/8 in. |
| Hose Length | 20 ft. |
| Maximum Flow Rate | 4.5 GPM |
| Maximum Operating Pressure | 60 PSI |
| Mounting Type | Other |
| Power Type | 12 Volt |
| Product Height | 15 in. |
| Product Length | 38 in. |
| Product Weight | 31 lb. |
| Product Width | 18 in. |
| Pump Type | Diaphragm |
| Boom Width | 3.5 ft |
| Tank Capacity | 25 gal. |
| Spray Method | Spot Spraying, Boom Spraying (Broadcast) |
| Tank Material | Polyethylene |
| Warranty | 1 Year Sprayer; 2 Year Pump |
| Manufacturer Part Number | 5302952 |
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 10 of 16 Questions
Newest questions
Q: Can this be strapped to the tailgate of a UTV? I don't see any handles or other things to help strap this down. Please advise.
23 days ago1 Answer
- A: Thank you for reaching out. Please note that this sprayer is specifically designed to be mounted on the cargo rack of an ATV, and we do not recommend using it on a UTV tailgate. When filled, the 25-gallon tank weighs approximately 250 lbs, which significantly exceeds the weight capacity of most UTV tailgates and could cause structural damage to the gate or its hinges. For safety, this unit should only be used as intended on an ATV rack where the weight is properly supported. Additionally, please be aware that this unit requires the use of ratchet straps for secure mounting, which are not included with the sprayer.23 days agoHelpful?
Q: Can this be powered by my 72 volt Lithium battery that powers my UTV?
a month ago1 Answer
- A: For your safety and the longevity of the equipment, do not connect this 12V pump directly to a 72V UTV battery. Doing so will immediately destroy the pump motor. This sprayer must be powered by a 12V source. The safest and easiest solution is to use a dedicated 12V lawn and garden battery.a month agoHelpful?
Q: What size battery is recommended for use
10 months ago1 Answer
- A: Any 12V battery will work. The sprayer comes with a lead wire with alligator clips to attach to the 12V battery.10 months agoHelpful?
Q: I asked this question earlier. Wondering if I can change the plug so it works off the same plug as my firmco spreader since I have it hardwired to the back where the hitch is?
a year ago1 Answer
- A: a response was left earlier regarding your questions: Just like your spreader, this sprayer will connect to your 12-volt source, whether the battery on your unit or a stand-alone battery. The lead wires are not interchangeable if that's what you're asking, as the 2-pin connections are different on each.a year agoHelpful?
Q: Will this spayer use the same power connection as my spreader that has a variable speed control?
a year ago1 Answer
- A: Just like your spreader, this sprayer will connect to your 12-volt source, whether the battery on your unit or a stand-alone battery. The lead wires are not interchangeable if that's what you're asking, as the 2-pin connections are different on each.a year agoHelpful?
Q: Can these nozzles be bought separately?
a year ago1 Answer
- A: Yes, you can purchase these nozzles separately. You can either have Tractor Supply special order them for you or you can purchase direct from us.a year agoHelpful?
Q: Is there spot sprayer attachment available for this unit?
a year ago1 Answer
- A: Will, thank you for your purchase of the 25-gallon ATV sprayer from Tractor Supply. You can use this sprayer as a spot sprayer, as well as using the boom on the back. You can either close the valve to the boom and disconnect the boom from the sprayer and just use it as a spot sprayer or if you wish, you can leave the boom connected, just close the valve to the boom and still use it for spot spraying.a year agoHelpful?
Q: I have a 60” zero turn mower. Can I strap it onto the back of the mower or wouldni need to fabricate something to be able to mount it on there? And what power source is there for it
2 years ago1 Answer
- A: If you have a rack or a surface that you can strap the sprayer down on to, it should work, otherwise, you may need to fabricate something to mount it. We've had customers that use it with their zero turn mowers, but as to who they mount it, couldn't really say.2 years agoHelpful?
Q: Is there a boom included w/this sprayer?
2 years ago1 Answer
- A: Copa, yes there is a broadcast boom with the sprayer. The broadcast boom will have 3 nozzles and allow you to spray from one, two or all three nozzles, depending on your needs, giving you up to an approximately 30' spray swath.2 years agoHelpful?
Q: can I use this sprayer to apply oxalic acid to a large deck?
4 years ago1 Answer
- A: For technical support, please contact 800-831-0027.4 years agoHelpful?
1 - 10 of 16 Questions
Q&As
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 10 of 16 Questions
Newest questions
Q: Can this be strapped to the tailgate of a UTV? I don't see any handles or other things to help strap this down. Please advise.
23 days ago1 Answer
- A: Thank you for reaching out. Please note that this sprayer is specifically designed to be mounted on the cargo rack of an ATV, and we do not recommend using it on a UTV tailgate. When filled, the 25-gallon tank weighs approximately 250 lbs, which significantly exceeds the weight capacity of most UTV tailgates and could cause structural damage to the gate or its hinges. For safety, this unit should only be used as intended on an ATV rack where the weight is properly supported. Additionally, please be aware that this unit requires the use of ratchet straps for secure mounting, which are not included with the sprayer.23 days agoHelpful?
Q: Can this be powered by my 72 volt Lithium battery that powers my UTV?
a month ago1 Answer
- A: For your safety and the longevity of the equipment, do not connect this 12V pump directly to a 72V UTV battery. Doing so will immediately destroy the pump motor. This sprayer must be powered by a 12V source. The safest and easiest solution is to use a dedicated 12V lawn and garden battery.a month agoHelpful?
Q: What size battery is recommended for use
10 months ago1 Answer
- A: Any 12V battery will work. The sprayer comes with a lead wire with alligator clips to attach to the 12V battery.10 months agoHelpful?
Q: I asked this question earlier. Wondering if I can change the plug so it works off the same plug as my firmco spreader since I have it hardwired to the back where the hitch is?
a year ago1 Answer
- A: a response was left earlier regarding your questions: Just like your spreader, this sprayer will connect to your 12-volt source, whether the battery on your unit or a stand-alone battery. The lead wires are not interchangeable if that's what you're asking, as the 2-pin connections are different on each.a year agoHelpful?
Q: Will this spayer use the same power connection as my spreader that has a variable speed control?
a year ago1 Answer
- A: Just like your spreader, this sprayer will connect to your 12-volt source, whether the battery on your unit or a stand-alone battery. The lead wires are not interchangeable if that's what you're asking, as the 2-pin connections are different on each.a year agoHelpful?
Q: Can these nozzles be bought separately?
a year ago1 Answer
- A: Yes, you can purchase these nozzles separately. You can either have Tractor Supply special order them for you or you can purchase direct from us.a year agoHelpful?
Q: Is there spot sprayer attachment available for this unit?
a year ago1 Answer
- A: Will, thank you for your purchase of the 25-gallon ATV sprayer from Tractor Supply. You can use this sprayer as a spot sprayer, as well as using the boom on the back. You can either close the valve to the boom and disconnect the boom from the sprayer and just use it as a spot sprayer or if you wish, you can leave the boom connected, just close the valve to the boom and still use it for spot spraying.a year agoHelpful?
Q: I have a 60” zero turn mower. Can I strap it onto the back of the mower or wouldni need to fabricate something to be able to mount it on there? And what power source is there for it
2 years ago1 Answer
- A: If you have a rack or a surface that you can strap the sprayer down on to, it should work, otherwise, you may need to fabricate something to mount it. We've had customers that use it with their zero turn mowers, but as to who they mount it, couldn't really say.2 years agoHelpful?
Q: Is there a boom included w/this sprayer?
2 years ago1 Answer
- A: Copa, yes there is a broadcast boom with the sprayer. The broadcast boom will have 3 nozzles and allow you to spray from one, two or all three nozzles, depending on your needs, giving you up to an approximately 30' spray swath.2 years agoHelpful?
Q: can I use this sprayer to apply oxalic acid to a large deck?
4 years ago1 Answer
- A: For technical support, please contact 800-831-0027.4 years agoHelpful?
1 - 10 of 16 Questions
Similar Items
-
-
-
Top Rated
-
Top Rated
-
-
Top Rated
-
-
-
-
-
Top Rated
-
Items You May Like
-
-
-
-
Top Rated
-
-
-
-
-
-
-
-
Reviews
Summary of Reviews
The product is a mixed bag, with some customers satisfied with its performance, describing it as easy to set up and use, with good spray coverage and sturdy construction. However, a significant number of customers have experienced issues such as leaks, pump failures, and poor tank design. The produc...
- English
- German
- French
- Spanish
- Portuguese
- Italian
- Korean
- Chinese
- Japanese
- Arabic
Most Helpful Favorable Review
5 out of 5 stars.
Fimco 25 gal Boomless ATV sprayer.
5 years ago
This tank was easy to assemble. It had one small leak easily fixed from a fitting that was loose from the factory. The boomles nozzles will spray approximately 36 feet which is great for large fields. It only takes 10 minutes to spray 25 gallons but you cover a lot of ground with a UTV.
7 people found this helpful
Show Reviews:
Most Helpful Critical Review
1 out of 5 stars.
Waste of money
7 years ago
I have over 2000 acres of pasture land I run cattle on. I needed this sprayer for my ATV to spray out noxious weeds, needless to say on the first use the pressure gauge broke, I could only use 10-15 gallons of the spray due to the poor design of the pump drain tube being in the far corner rather than in the middle of the tank, and when I attempted to use the sprayer again the pump would no longer build up pressure. After flushing the system and cleaning all the strainers, I read a review on this same sprayer by another customer who complained of the pump gets wet it no longer operates correctly, I guess I should not have washed off my ATV and sprayer after my first use. Thank you Tractor Supply on being flexible with your return policy as I was past 30 days when I discovered this sprayer will not work. If your looking for a light duty around the house sprayer this may work, any kind of farm use you will regret buying this sprayer.
6 people found this helpful
Show Reviews:
- spraying
- spraying
- purchase
- price
- quality
- setup
- for leaks
- nozzle
1 to 4 of 306 Reviews .
1 – 4 of 306 Reviews
Most Recent
forest ohio
Review 1
2 out of 5 stars.
bad quality parts supplied
5 days ago

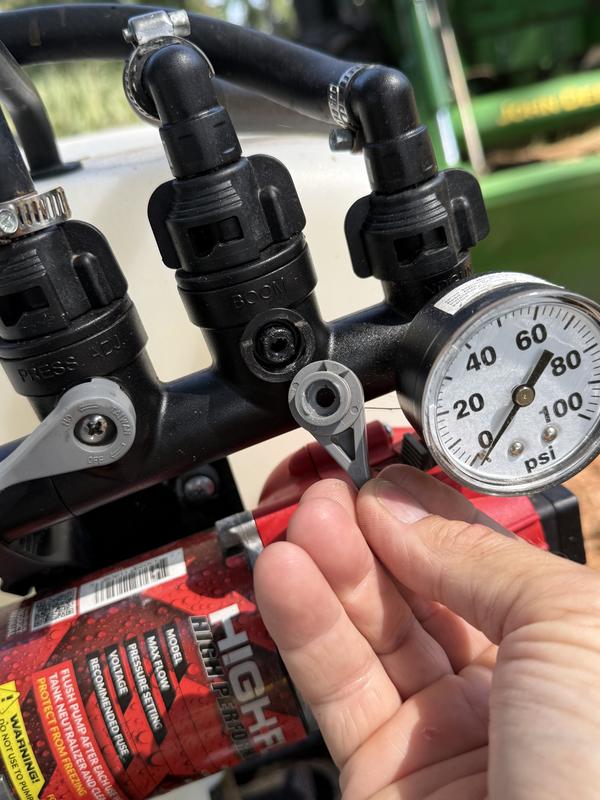

just like one of the other reviews said the pressure gauge bounces very badly when trying to dial in pressures the gauge supplied is JUNK My center spray housing leaks like no other im going to have to go out and buy an other one to replace what was shipped and already assembled personally i think someone should replace at no cost to me i had it given to me as a gift still in sealed bok so i know someone else did NOT loose parts
No, I do not recommend this product.
Response from Fimco Industries:
2 days ago
Fimco Industries
We’re so sorry to hear about the leaking housing and the faulty pressure gauge—that’s definitely not the experience we want you to have with your new sprayer, gift or not! We’d love the chance to make this right immediately. Please reach out to our team directly at 800-831-0027 or info@fimcoindustries.com, and we’ll get those replacement parts shipped out to you right away under warranty at zero cost to you.
Crown Point, IN
Review 1
3 out of 5 stars.
Decent sprayer, cheap plastic components
a month ago
3 stars simply due to the included parts quality. Functionally the sprayer works ok. I had multiple things break before I even completed the water testing phase.
1. The cheap plastic ON/OFF valve at the bottom of the tank leaked heavily as soon as water was in the tank. I replaced it with a solid brass ON/OFF valve from the hardware store.
2. The cheap plastic pressure gauge supplied leaked internally and out onto the ground while in use. I replaced it with a solid stainless and brass glycerin filled gauge. The one supplied is not liquid filled and the needle bounced around 10-20 psi making it difficult to read pressure accuratley.
3. The nozzles are not great, they do "spray" but do not attomize the liquid well at all. It is more like small droplets than anything. That being said it does appear I acheived a total kill on the area I sprayed, but I would have liked to see better attomization.
All in all it is a decent sprayer. Time will tell on longevity. Just plan on upgrading some of the cheap plastic parts used.. For the price I would like to have been more brass or stainless components used from the factory. I would have paid a bit more for it to have them rather then deal with the back and forth to the hardware store.
Yes, I recommend this product.
Response from Fimco Industries:
a month ago
Fimco Industries
Thank you for taking the time to leave such a detailed review. First and foremost, we want to sincerely apologize for the issues you experienced right out of the box with the ON/OFF valve and the pressure gauge. You shouldn’t have had to make extra trips to the hardware store just to get through the water-testing phase. We did, however, want to provide some helpful insight regarding your note on the nozzles not "atomizing" the liquid. The 3-nozzle broadcast setup on this sprayer actually utilizes specialized boomless technology (X-Tender tips). They are specifically engineered not to atomize the liquid into a fine mist. Here is why: Drift Control: To achieve a wide, 15+ foot spray swath, the liquid has to travel a long distance through the air. If the nozzles atomized the liquid into a fine mist, the chemical would drift away in the slightest breeze before ever hitting the ground. Large Droplet Design: These nozzles are designed to create larger, heavier droplets. The physics of the heavier droplet gives it the momentum needed to travel the distance, penetrate the weed canopy, and hit the target safely and evenly. The fact that you achieved a total kill on your target area means the nozzles actually did exactly what they were engineered to do! We are glad that, after your upgrades, the sprayer is functioning well for you. If you ever need assistance or replacement parts in the future, please don't hesitate to reach out to our customer service team directly. We appreciate your business and your honest feedback!
Virginia
Reviews 3
5 out of 5 stars.
Awsome sprayer
9 months ago
Great sprayer! I like that i can turn off each nozzle
SweepstakesYes
Yes, I recommend this product.
Response from Fimco Industries:
9 months ago
Fimco Industries
Dalton, thank you for your purchase of the 25-gallon broadcast ATV sprayer from Tractor Supply. Glad that it's working great for you and your spraying needs.
Review 1
4 out of 5 stars.
Good not great
9 months ago
The hand sprayer has a good pistol grip and a brass nozzle…though you can’t lock the sprayer in the on position so my hand got tired. The broadcast sprayer nozzles are plastic and do an adequate job but not precise. The pressure regulation manifold takes some practice but I figured it out by spraying water without herbicide. The rounded body of the tank made it hard to secure to my Kubota UTV.
SweepstakesYes
Response from Fimco Industries:
9 months ago
Fimco Industries
Gary, thank you for your purchase of the 25-gallon ATV sprayer from Tractor Supply. Glad that for the most part you're happy with your new sprayer. We've heard that before about having a way to lock the sprayer in the on position, rather than the off position and it has been passed along. Thank you also for all your feedback, it will also be passed on. Happy spraying!
