DeWALT 5 HP 2 Stage 80 Gallon Air Compressor, DXCMV5048055.1

SKU: 138835899

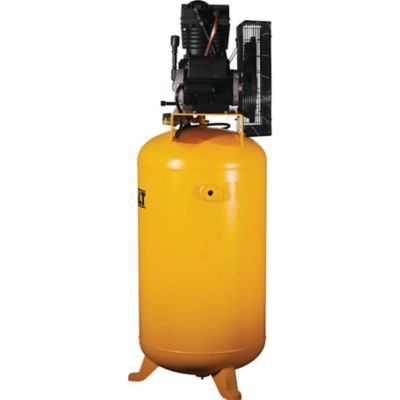

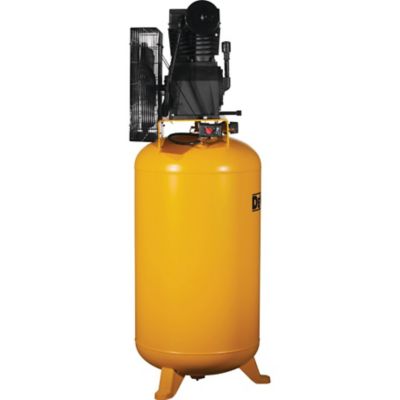

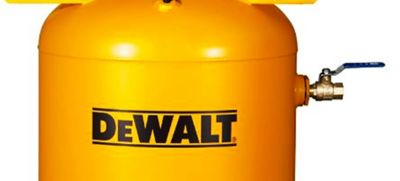

DeWALT 5 HP 2 Stage 80 Gallon Air Compressor, DXCMV5048055.1
Enter Zip Code for price More Info
Product price

Save Up To
See price at checkout More Info
No ratings found

Quantity

Check Availability at Other Stores
Standard Delivery Not Available to
Notice: This item will ship within 0 days.
This product may require up to 0 additional days for order processing prior to shipping.
Change Delivery Location
Protect your purchase with Power Plus
Protect Your Purchase Click here for more details...

We'll fix it, replace it, or reimburse you for it.

Item Information

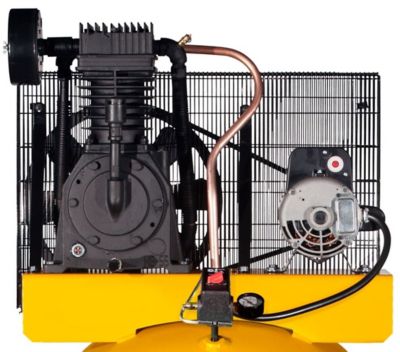

Designed for tough jobsite duties, the DEWALT 80 Gal. 2 stage Air Compressor is built with great quality construction and performance for the professional. This air compressor uses a powerful 5 horse power induction motor to deliver a steady 17.0 SCFM at 175 psi. The unit features a cast iron, industrial-duty, 2-stage reciprocating splash lube compressor pump with a patented piston design, cooling fins, and a flywheel design for improved cooling. The electric motor also features a thermal overload protection system to ensure reliable operation. The DEWALT 80 gallon vertical stationary electric compressor is a durable and long-lasting compressed air solution that is made for the long haul in order to get the job done.

  • Industrial performance delivers maximum CFM at 175 psi
  • Patented pump design provides for a cooler running pump
  • Equipped with tank pressure gauge and on/off switch
  • Magnetic starter not required
  • Wire form belt guard improves compressor cooling
  • Extended tank drain valve, ball valve, and vibration isolators are included for ease of use
  • Shipped with 100% full synthetic air compressor oil for optimum performance and long life
2 Year Pump, 1 Year all other parts

Specification Description
Running Horsepower: 5 HP
Lubrication Type: Oil
Drain System: 1/4 in. NPT Extended Tank Drain
Start Type: Pressure Switch
Product Height: 74 in.
Brand: DeWALT
Maximum RPM: 3,450 rpm
Fuel Tank Capacity: 0 oz.
Number of Wheels: 0
Motor Phase: Single
CountryofOrigin: Made in USA
Pump Life: 4,000 hr.
Part Number: DXCMV5048055.1
Air Outlet Size: 3/4 in. NPT
Maximum Operating Pressure: 175 PSI
Pump Material: Cast iron
Stage Type: Two-Stage
Product Weight: 399 lb.
Power Type: Electric
Tank Fill Time: 6.28 min.
Product Length: 28 in.
Decibel Rating: 83 dBA
Tank Orientation: Vertical
Special Feature(s): None
Tank Capacity: 80 gal.
Engine Brand: N/A
Airflow Volume: 17.9 CFM @ 100 PSI, 17 CFM @ 175 PSI
Color: Yellow
Product Width: 30.5 in.
Pump Oil Capacity: 49 oz.
Application/Use: Air Brushing, Blow Cleaning, Bolting/Wrenching, Brad Nailing/Stapling, Cutting, Drilling, Finish Nailing, Framing Nailing, Grinding, Hobby Nailing, Hobby Painting, HVLP Painting, Inflation, Roof Nailing, Sanding, Spraying, and Surface Prep
Warranty: 2 Year Pump, 1 Year all other parts
Drive Type: Belt Drive
Portable or Stationary: Stationary
Manufacturer Part Number DXCMV5048055.1

What volts is the motor?

Asked by: AWR1
The DEWALT 5HP 2 Stage 80 Gallon Air Compressor has a heavy duty, industrial class 230 volt motor.
Answered by: Dewalt Team
Date published: 2019-09-23
