Weekly AdWhat's NewTractor Supply AppEarn Rewards with Neighbor's ClubHometown HeroesLife Out Here BlogTSC Exclusive BrandsTop BrandsClearance ItemsBattery FinderOutdoor Power Equipment Parts FinderHitch FinderDEWALT 3/8 in. NPT Desiccant Air Cleaner
Item # 1334229
Buy Air Compressor Get 20% Off Air Compressor accessorie
Get everything you need
Neighbor’s Club Members earn points with purchases.
Item # 1334229
Buy Air Compressor Get 20% Off Air Compressor accessorie
Shopping at
Grassland (franklin) TN
Delivery to
37027
Free standard delivery on online footwear & Clothing purchases of $49 and over.
Get everything you need
Neighbor’s Club Members earn points with purchases.

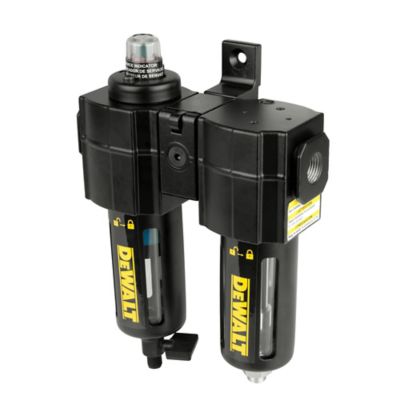

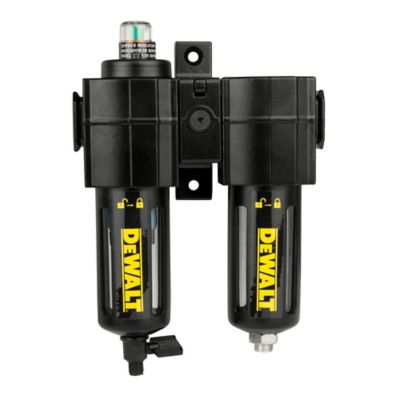

The DEWALT 3/8 in. NPT Desiccant Air Cleaner cleans air and removes water vapor right at the beginning to help support applications that require oil-free, moisture-free air, like spray painting. Two separate systems condition the air: An oil-removal filter traps the oil aerosols and the desiccant beads system removes water vapor. An outlet screen on the air cleaner keeps desiccant particles from entering the air stream, protecting air tools. The desiccant beads change color when it needs to be changed or recharged. The desiccant air cleaner system includes a quick-release bowl to easily view the fluid level and it is protected against impact by metal guards. A quarter-turn drain makes maintenance easier. The DEWALT desiccant air cleaner is built with great quality construction and performance in order to get the job done.
For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.
- Filter removes moisture and contaminants improving tool life
- Quick release bayonet bowls with threaded outlet for easy drain line connection
- Dryer in the air cleaner removes excess oil and water vapors
- Desiccant beads changes from blue to pink when beads need to be replaced
- Body and metal bowl of the air cleaner are corrosion-resistant
- Wall mountable
- Complete desiccant air cleaner assembly includes filter, dryer and mounting bracket
- 2 year limited warranty
- Outlet screen keeps desiccant particles from entering the air stream
- Quarter-turn drain makes maintenance of the desiccant air cleaner easy
| Brand | DEWALT |
|---|---|
| Country of Origin | Imported |
| Compatibility | Any air compressor |
| Filtration Material | Aluminum |
| Inlet Size | 3/8 in. |
| Inlet Type | NPT |
| Package Quantity | 1 |
| Product Height | 8.5 in. |
| Product Length | 6 in. |
| Product Weight | 2.95 lb. |
| Product Width | 3.3 in. |
| Manufacturer Part Number | DXCM019-0338 |
Q: Where can I buy the replacement filter and desiccant? I can't seem to find it online.
4 years ago- A: Please contact Product Services at 888-895-4549 for further assistance with your replacement part needs.4 years agoHelpful?
Q: how close do you mount the filter housing from the compressor regulator outlet....i know some air engineering says 20 ft.
5 years ago- A: We recommend that the DXCM019-0338 is installed in the air line as close as possible to the outlet where the hose for the tool is connected to.5 years agoHelpful?
Q: What’s the white round thing up in side on the second tube? Mine just fell out?
5 years ago- A: It is a seal when you put your condensation beads in5 years agoHelpful?
Q: How much of the blue balls do u put in there?
5 years ago- A: Fill to within 1/2” from the top of the bowl. Avoid getting any of the desiccant in the center tube. You may not use all of the beads that were supplied.5 years agoHelpful?
Q: Where do the blue balls go? Witch side?
5 years ago- A: The canister to the right......5 years agoHelpful?
Q: Is the left tube supposed to be loose when in the locked position? The Air filter side
5 years ago- A: No, I don’t think so , mine is tight5 years agoHelpful?
Q: What's the minimum particle size rating of this filter, e.g. 5 micron? (And why would you not make this spec. available without asking)?
6 years ago- A: 40 micron at this time.6 years agoHelpful?
