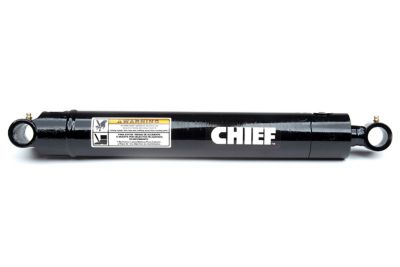

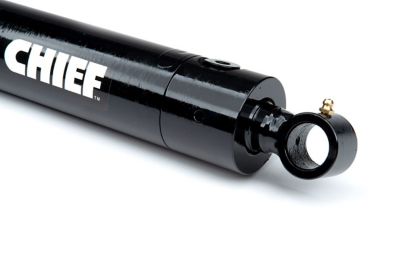

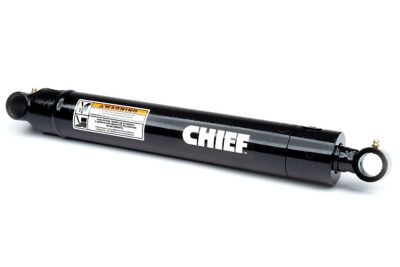

Chief WX Welded Hydraulic Cylinder, 3 Bore x 14 Stroke

SKU # 130477299
Product price

Save Up To
See Price at Check Out
No ratings found

Financing Available! Click here for more details...



Delivery Options:

Item Information

The patented CHIEF WX is ideal for applications where port adjustability and overall hydraulic cylinder space is restricted. The adjustable 360° rotating gland allows you to make port alignments as needed. All ports are recessed to maximize an already slender cylinder design. One port is located on the rotating gland and two on the fixed base. Adjustments are made by using a spanner wrench to rotate the gland with port in a clockwise or counterclockwise direction. The CHIEF WX has become the cylinder of choice in applications where the same size cylinder can be used in a variety of directions and port positions, thereby eliminating the need to stock assorted cylinders.

  • Every CHIEF WX cylinder is functionally tested and pressurized to 1.5 times the normal working pressure to ensure performance reliability
  • WX cylinders have a 3,000 PSI operating range
  • 3 year limited warranty

Note: This product may require up to 2 additional days for order processing prior to shipping

Specification Description
Brand: Chief
Package Quantity: 1
Pin Diameter: 1 in.
Product Height: 3-1/2 in.
Maximum Operating Pressure: 3,000 PSI
Product Length: 3-1/2 in.
Rod Diameter: 1-1/2 in.
Product Type: Hydraulic Cylinders
Bore Diameter: 3 in.
Special Feature: 405 degree rotating gland
Material: Iron/Steel
Product Weight: 32 lb.
Type: Welded Cylinder
Maximum Weight Capacity: 21200 lb.
Warranty: 3 Year
Application: Double-acting
Port Size: SAE 8
Includes: Mounting pins and clips
Product Width: 5-1/4 in.
Manufacturer Part Number 207436
