Chief 3.5 in. Bore x 30 in. Stroke WP Welded/Pineye Cylinder, 1.75 in. Rod Diameter, 3,000 PSI

4.7

(3 Reviews)

|

Item # 130768799

$399.99

Chief 3.5 in. Bore x 30 in. Stroke WP Welded/Pineye Cylinder, 1.75 in. Rod Diameter, 3,000 PSI

4.73 Reviews

Item # 130768799

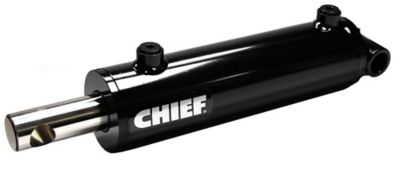

Image showing 3.5 in. Bore x 30 in. Stroke WP Welded/Pineye Cylinder, 1.75 in. Rod Diameter, 3,000 PSI
Image showing 3.5 in. Bore x 30 in. Stroke WP Welded/Pineye Cylinder, 1.75 in. Rod Diameter, 3,000 PSI
Image showing 3.5 in. Bore x 30 in. Stroke WP Welded/Pineye Cylinder, 1.75 in. Rod Diameter, 3,000 PSI
$399.99

See 2 deals for this item

Neighbor's Club logo
Neighbor’s Club Members earn points with purchases.

Sign in or Join Now

Chief 3.5 in. Bore x 30 in. Stroke WP Welded/Pineye Cylinder, 1.75 in. Rod Diameter, 3,000 PSI

4.73 Reviews

Item # 130768799

Image showing 3.5 in. Bore x 30 in. Stroke WP Welded/Pineye Cylinder, 1.75 in. Rod Diameter, 3,000 PSI
Image showing 3.5 in. Bore x 30 in. Stroke WP Welded/Pineye Cylinder, 1.75 in. Rod Diameter, 3,000 PSI
Image showing 3.5 in. Bore x 30 in. Stroke WP Welded/Pineye Cylinder, 1.75 in. Rod Diameter, 3,000 PSI
$399.99

See 2 deals for this item

This item is available online only

Delivering to

37027

Neighbor's Club logo
Neighbor’s Club Members earn points with purchases.

Sign in or Join Now

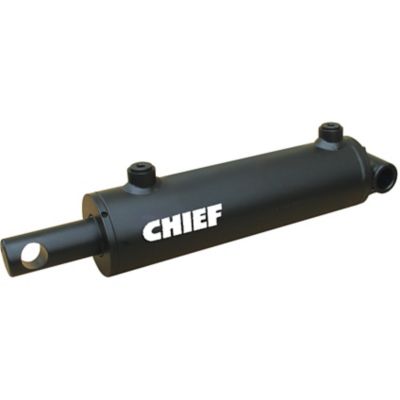

The Chief 3.5 in. Bore x 30 in. Stroke WP Welded/Pineye Cylinder is a very versatile welded hydraulic cylinder. Its rod end comes with a drilled pin-hole and can easily be customized to fit your rod end of choice, and the base end has a welded cross-tube with grease zerk. This is a solid, dependable hydraulic cylinder for construction and agricultural applications as well as other industries like OEM manufacture of trailers, metal fabricating and waste/recycling equipment.Note: This product may require up to 2 additional days for order processing prior to shipping

  • Functionally tested and pressurized to 1.5 times the normal working pressure to insure performance reliability
  • SAE 8 O-ring ports for easy hookup
  • For use in double acting hydraulic cylinder or single acting hydraulic cylinder applications
  • All seals are manufactured to US specifications
  • 3-year limited warranty
  • Piston: ductile iron with wear ring
  • Gland: ductile iron, screw-in design with wear ring
  • Tube: precision honed steel
  • Rod is hard chrome plated and rod end mount is rod eye drilled for durability
  • Base end mount: steel cross-tube with grease zerk
  • Tube seal: Buna O-ring with Polytemp hytrel backup; rod seal: deep polypak with B lip design
  • Rod wiper: Urethane, snap-in
  • Piston seal: Hallite 755 provides prolonged wear resistance with wear ring
  • Individually poly bagged welded hydraulic cylinder for construction and agricultural applications
  • 3,000 PSI operating range
  • Measures 38 in. retracted and 68 in. extended
  • Column load: 22,290 lb.
  • Pin diameter of 1 in. and rod diameter of 1.75 in.
