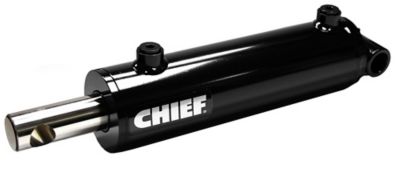

Chief 4 in. Bore x 16 in. Stroke WP Welded/Pineye Cylinder, 2 in. Rod Diameter, 3,000 PSI
Item # 130769399
Add this item to unlock free delivery!
Neighbor’s Club Members earn points with purchases.
Item # 130769399
Add this item to unlock free delivery!
This item is available online only
Delivery to
Free standard delivery on online footwear & Clothing purchases of $49 and over.
Neighbor’s Club Members earn points with purchases.
The Chief 4 in. Bore x 16 in. Stroke WP Welded/Pineye Cylinder is a very versatile welded hydraulic cylinder. Its rod end comes with a drilled pin-hole and can easily be customized to fit your rod end of choice, and the base end has a welded cross-tube with grease zerk. This is a solid, dependable hydraulic cylinder for construction and agricultural applications as well as other industries like OEM manufacture of trailers, metal fabricating and waste/recycling equipment.Note: This product may require up to 2 additional days for order processing prior to shipping
- Functionally tested and pressurized to 1.5 times the normal working pressure to insure performance reliability
- SAE 8 O-ring ports for easy hookup
- For use in double acting hydraulic cylinder or single acting hydraulic cylinder applications
- All seals are manufactured to US specifications
- 3-year limited warranty
- Piston: ductile iron with wear ring
- Gland: ductile iron, screw-in design with wear ring
- Tube: precision honed steel
- Rod is hard chrome plated and rod end mount is rod eye drilled for durability
- Base end mount: steel cross-tube with grease zerk
- Tube seal: Buna O-ring with Polytemp hytrel backup
- Rod wiper: Urethane, snap-in
- Piston seal: Hallite 755 provides prolonged wear resistance with wear ring
- Individually poly bagged welded hydraulic cylinder for construction and agricultural applications
- 3,000 PSI operating range
- Rod seal: deep polypak with B lip design
- Measures 25 in. retracted and 41 in. extended
- Column load: 37,690 lb.
- Pin diameter of 1.25 in. and rod diameter of 2 in.
| Brand | Chief |
|---|---|
| Country of Origin | Imported |
| Bore Diameter | 4 in. |
| Brand Compatibility | Universal |
| Compatibility | Varies |
| Extended Length | 41 in. |
| Hydraulic Cylinder Type | Welded |
| Maximum Operating Pressure | 3,000 PSI |
| Maximum Weight Capacity | 37,690 lb. |
| Model Compatibility | Universal |
| Package Quantity | 1 |
| Pin Diameter | 1-1/4 in. |
| Port Size | SAE #8 |
| Primary Material | Steel |
| Product Height | 4.625 in. |
| Product Length | 9 in. |
| Product Weight | 56 lb. |
| Product Width | 2 in. |
| Retracted Length | 25 in. |
| Rod Diameter | 2 in. |
| Stroke Distance | 16 in. |
| Warranty | 3 Year |
| Manufacturer Part Number | 287294 |
Q: What is the overall length of the cylinder?
7 years ago- A: The actual overall length it is about 27.25".7 years agoHelpful?
Q&As
Q: What is the overall length of the cylinder?
7 years ago- A: The actual overall length it is about 27.25".7 years agoHelpful?
