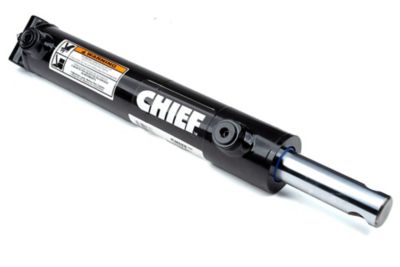

Chief WP 3000 PSI Welded/Pineye Cylinder, 2.5 in. x 42 - 1 3/8 in. Rod Dia.

SKU # 130766799
Product price

Save Up To
See price at checkout Why?
No ratings found

Financing Available! Click here for more details...



Delivery Options:

Item Information

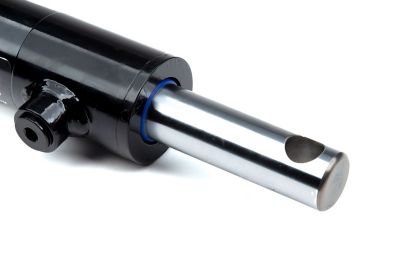

The Chief WP 3000 PSI is a very versatile cylinder. The rod end comes with a drilled pin-hole and can easily be customized to fit your rod end of choice. Base end has a welded cross-tube with grease zerk.

  • Ideal for construction and agricultural applications as well as other industries like OEM manufacture of trailers, metal fabricating and waste/recycling equipment
  • SAE 8 O-ring ports for easy hookup
  • For use in double or single acting hydraulic applications
  • 2.5 in. x 42 - 1 3/8 in. Rod Dia.

Note: This product may require up to 2 additional days for order processing prior to shipping

Specification Description
Application: For use in double or single acting hydraulic applications.
Bore Diameter: 2-1/2 in.
Brand: Chief
Material: Steel
Maximum Operating Pressure: 3000 PSI
Maximum Weight Capacity: 4590 lb.
Package Quantity: 1
Pin Diameter: 0-3/4 in.
Port Size: SAE 8
Product Type: Hydraulic Cylinders
Product Weight: 46 lb.
Rod Diameter: 1-3/8 in.
Special Feature: Welded cylinder with pin-eye rod
Type: Welded Hydraulic Cylinder
Warranty: 3 Year
Manufacturer Part Number 287242
