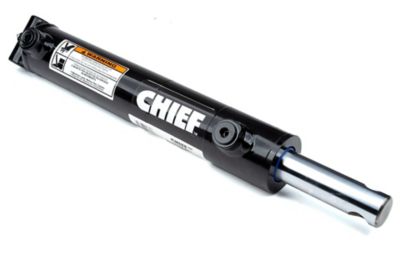

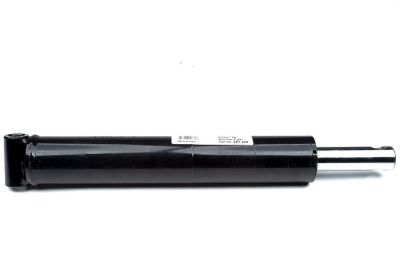

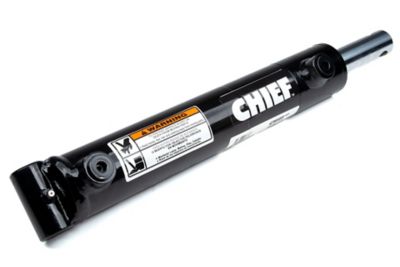

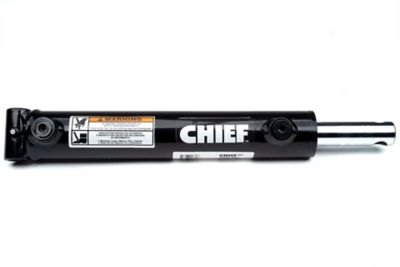

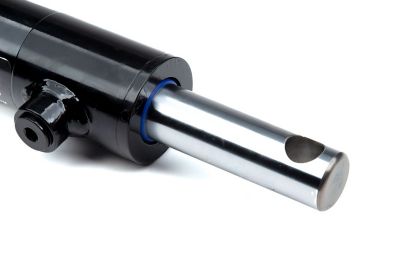

The Chief 2 in. Bore x 20 in. Stroke WP Welded Cylinder with Pin-Eye Rod is a very versatile welded hydraulic cylinder. The rod end comes with a drilled pin-hole and can easily be customized to fit your rod end of choice. Ideal for construction and agricultural applications as well as other industries like OEM manufacture of trailers, metal fabricating and waste/recycling equipment, you can trust this hydraulic cylinder. SAE 8 O-ring ports means easy hookup, and the cylinder comes functionally tested and pressurized to 1.5 times the normal working pressure to insure performance reliability.

  • Welded hydraulic cylinder ideal for construction and agricultural applications as well as other industries like OEM manufacture of trailers, metal fabricating and waste/recycling equipment
  • SAE 8 O-ring ports for easy hookup
  • For use in double acting hydraulic cylinder or single acting hydraulic cylinder applications
  • All seals are manufactured to US specifications
  • 3-year limited warranty
  • Piston: ductile iron with wear ring
  • Gland: ductile iron, screw-in design with wear ring
  • Tube: precision honed steel
  • Rod: hard chrome plated
  • Base end mount: steel cross-tube with grease zerk
  • Tube seal: Buna O-ring with Polytemp hytrel backup
  • Rod wiper: Urethane, snap-in
  • Piston seal: Hallite 755 provides prolonged wear resistance with wear ring
  • Individually poly bagged for ease of transport
  • 3,000 PSI operating range
  • Measures 28 in. retracted and 48 in. extended
  • Column load: 9,420 lb.
  • Pin diameter of 0.75 in. and rod diameter of 1.25 in.
  • Rod seal: deep polypak with B lip design
  • Rod end mount: rod eye drilled
Note: This product may require up to 2 additional days for order processing prior to shipping

Specification Description
Brand Chief
Country of Origin Imported
Bore Diameter 2 in.
Brand Compatibility Universal
Compatibility Varies
Extended Length 48 in.
Hydraulic Cylinder Type Welded
Maximum Operating Pressure 3,000 PSI
Maximum Weight Capacity 9,420 lb.
Model Compatibility Most applications
Package Quantity 1
Pin Diameter 0-3/4 in.
Port Size SAE 8
Primary Material Steel
Product Height 1.25 in.
Product Length 8 in.
Product Weight 21.16 lb.
Product Width 2.5 in.
Retracted Length 28 in.
Rod Diameter 1-1/4 in.
Stroke Distance 20 in.
Warranty 3 Year
Manufacturer Part Number 287213
