Chief 2 in. Bore x 6 in. Stroke WC Welded Cylinder, 1.125 in. Rod Diameter

5.01 Reviews

Item # 130756599

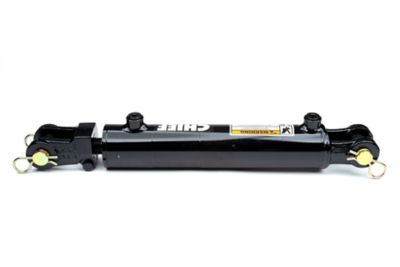

Image showing 2 in. Bore x 6 in. Stroke WC Welded Cylinder, 1.125 in. Rod Diameter

$169.99

See 2 deals for this item

Neighbor’s Club Members earn points with purchases.

Shop all Chief

Chief 2 in. Bore x 6 in. Stroke WC Welded Cylinder, 1.125 in. Rod Diameter

5.01 Reviews

Item # 130756599

$169^.99

See 2 deals for this item

This item is available online only

Delivering to

37027

Neighbor’s Club Members earn points with purchases.

The Chief 2 in. Bore x 6 in. Stroke WC Welded Cylinder is a high-quality welded hydraulic cylinder with a strong forged steel base. This hydraulic cylinder model has a screw-in gland that reduces the cylinder profile by replacing the collar style gland. It provides added strength to agricultural implements, compact construction and transportation equipment, as well as waste/recycling applications. A base end clevis extends out 2 in. to ensure greater swing radius and maximum flexibility.Note: This product may require up to 2 additional days for order processing prior to shipping

Intended use: double-acting applications
Piston: ductile iron
Gland: ductile iron
Tube: precision-honed steel
Rod: hard chrome-plated
End mounts: ductile iron female clevises with pins and clips included
Tube seals: Buna O-ring
Rod seal: deep polypak with B-lip design
Rod wiper: urethane, snap-in
Piston seal: Hallite 755 for prolonged wear resistance with wear ring
All seals are manufactured to US specifications
Functionally tested and pressurized to 1.5 times the normal working pressure to ensure performance reliability
Welded hydraulic cylinder with a 3,000 PSI operating range
Measures 16.25 in. retracted and 22.25 in. extended
3-year limited warranty
Black paint finish
Pin diameter of 1 in. and rod diameter of 1.125 in.
Column load: 9,420 lb.
SAE O-ring ports that allow for easy hookup
Individually poly bagged hydraulic cylinder works well in agricultural applications
