Chief 2-Bolt Hydraulic Gear Pump, 5/8 in. Shaft, 0.61 CID, 5.28 at 2,000 RPM, 3,626 PSI, CW Rotation

3.02 Reviews

Item # 1307389

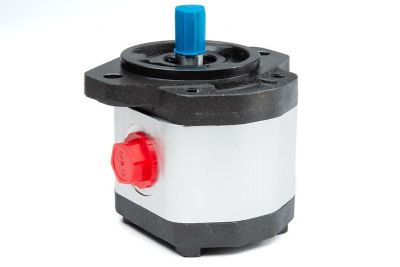

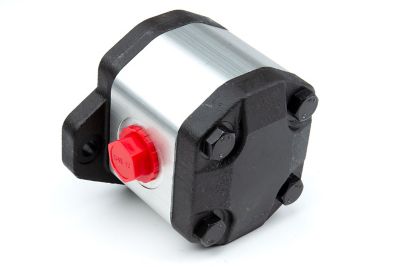

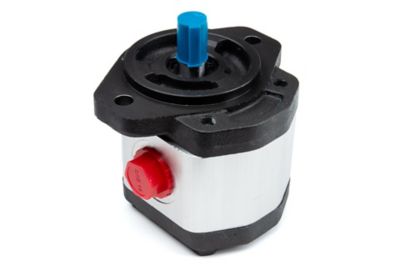

Image showing 2-Bolt Hydraulic Gear Pump, 5/8 in. Shaft, 0.61 CID, 5.28 at 2,000 RPM, 3,626 PSI, CW Rotation
Image showing 2-Bolt Hydraulic Gear Pump, 5/8 in. Shaft, 0.61 CID, 5.28 at 2,000 RPM, 3,626 PSI, CW Rotation
Image showing 2-Bolt Hydraulic Gear Pump, 5/8 in. Shaft, 0.61 CID, 5.28 at 2,000 RPM, 3,626 PSI, CW Rotation
Image showing 2-Bolt Hydraulic Gear Pump, 5/8 in. Shaft, 0.61 CID, 5.28 at 2,000 RPM, 3,626 PSI, CW Rotation
Image showing 2-Bolt Hydraulic Gear Pump, 5/8 in. Shaft, 0.61 CID, 5.28 at 2,000 RPM, 3,626 PSI, CW Rotation
Image showing 2-Bolt Hydraulic Gear Pump, 5/8 in. Shaft, 0.61 CID, 5.28 at 2,000 RPM, 3,626 PSI, CW Rotation
Image showing 2-Bolt Hydraulic Gear Pump, 5/8 in. Shaft, 0.61 CID, 5.28 at 2,000 RPM, 3,626 PSI, CW Rotation
Image showing 2-Bolt Hydraulic Gear Pump, 5/8 in. Shaft, 0.61 CID, 5.28 at 2,000 RPM, 3,626 PSI, CW Rotation
Image showing 2-Bolt Hydraulic Gear Pump, 5/8 in. Shaft, 0.61 CID, 5.28 at 2,000 RPM, 3,626 PSI, CW Rotation
Image showing 2-Bolt Hydraulic Gear Pump, 5/8 in. Shaft, 0.61 CID, 5.28 at 2,000 RPM, 3,626 PSI, CW Rotation
Image showing 2-Bolt Hydraulic Gear Pump, 5/8 in. Shaft, 0.61 CID, 5.28 at 2,000 RPM, 3,626 PSI, CW Rotation
Image showing 2-Bolt Hydraulic Gear Pump, 5/8 in. Shaft, 0.61 CID, 5.28 at 2,000 RPM, 3,626 PSI, CW Rotation
$168.40
Neighbor's Club logo
Neighbor’s Club Members earn points with purchases.

Sign in or Join Now

  • Online Only

Chief 2-Bolt Hydraulic Gear Pump, 5/8 in. Shaft, 0.61 CID, 5.28 at 2,000 RPM, 3,626 PSI, CW Rotation

3.02 Reviews

Item # 1307389

Image showing 2-Bolt Hydraulic Gear Pump, 5/8 in. Shaft, 0.61 CID, 5.28 at 2,000 RPM, 3,626 PSI, CW Rotation
Image showing 2-Bolt Hydraulic Gear Pump, 5/8 in. Shaft, 0.61 CID, 5.28 at 2,000 RPM, 3,626 PSI, CW Rotation
Image showing 2-Bolt Hydraulic Gear Pump, 5/8 in. Shaft, 0.61 CID, 5.28 at 2,000 RPM, 3,626 PSI, CW Rotation
Image showing 2-Bolt Hydraulic Gear Pump, 5/8 in. Shaft, 0.61 CID, 5.28 at 2,000 RPM, 3,626 PSI, CW Rotation
Image showing 2-Bolt Hydraulic Gear Pump, 5/8 in. Shaft, 0.61 CID, 5.28 at 2,000 RPM, 3,626 PSI, CW Rotation
Image showing 2-Bolt Hydraulic Gear Pump, 5/8 in. Shaft, 0.61 CID, 5.28 at 2,000 RPM, 3,626 PSI, CW Rotation
Image showing 2-Bolt Hydraulic Gear Pump, 5/8 in. Shaft, 0.61 CID, 5.28 at 2,000 RPM, 3,626 PSI, CW Rotation
Image showing 2-Bolt Hydraulic Gear Pump, 5/8 in. Shaft, 0.61 CID, 5.28 at 2,000 RPM, 3,626 PSI, CW Rotation
Image showing 2-Bolt Hydraulic Gear Pump, 5/8 in. Shaft, 0.61 CID, 5.28 at 2,000 RPM, 3,626 PSI, CW Rotation
Image showing 2-Bolt Hydraulic Gear Pump, 5/8 in. Shaft, 0.61 CID, 5.28 at 2,000 RPM, 3,626 PSI, CW Rotation
Image showing 2-Bolt Hydraulic Gear Pump, 5/8 in. Shaft, 0.61 CID, 5.28 at 2,000 RPM, 3,626 PSI, CW Rotation
Image showing 2-Bolt Hydraulic Gear Pump, 5/8 in. Shaft, 0.61 CID, 5.28 at 2,000 RPM, 3,626 PSI, CW Rotation
$168.40
financeCard Logo
New Cardmembers earn a $50 Reward‡ with qualifying purchase of $50 or more plus earn 5% in Rewards+ on this purchase. Valid through 3/22/26.Apply now

This item is available online only

Delivering to

37027

Neighbor's Club logo
Neighbor’s Club Members earn points with purchases.

Sign in or Join Now

The Chief Hydraulic Gear Pump offers an aluminum body with cast-iron end plate construction and a high pressure hydraulic gear pump with 11 displacement sizes from 0.24 to 1.95 in3/rev (4 to 32 cm3/rev). The standard mounting flange is SAE A-2 bolt, and the standard drive shaft is a 5/8 in. diameter straight with 5/32 in. straight key. Create the perfect equipment setup with help from a Chief hydraulic gear pump.Note: This product may require up to 2 additional days for order processing prior to shipping

For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.

  • Standard drive shaft is a 5/8 in. diameter straight shaft with 5/32 in. straight key
  • Filtration: 25 micron or better
  • Oil Viscosity: 6 to 200 CST
  • Inlet Pressure: 12 to 32 PSI ABS
  • Oil Temperature: -25 to 80 degrees C (-12 to 175 degrees F)
  • Ambient: -22 to 55 degrees C (-8 to 130 degrees F)
  • Standard mounting flange on the Chief gear pump is SAE A-2 bolt
  • CW rotation style
  • Operating pressure of the hydraulic pump: 3,626 PSI
  • 5.28 at 2,000 RPM
  • 0.61 CID
  • Aluminum gear pump body with cast iron end plate construction
  • Hydraulic gear pump has 11 displacement sizes from 0.24 to 1.95 in3/rev (4 to 32 cm3/rev)
