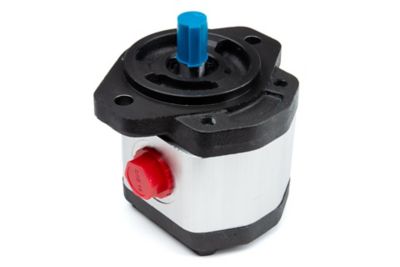

Chief 2-Bolt Hydraulic Gear Pump, 5/8 in. Shaft, 0.48 CID, 4.16 at 2,000 RPM, 3,626 PSI, CW Rotation
Item # 130738799
Add this item to unlock free delivery!
Get everything you need
Neighbor’s Club Members earn points with purchases.
Item # 130738799
Add this item to unlock free delivery!
This item is available online only
Delivery to
Free standard delivery on online footwear & Clothing purchases of $49 and over.
Get everything you need
Neighbor’s Club Members earn points with purchases.
The Chief Hydraulic Gear Pump offers an aluminum body with cast-iron end plate construction and a high pressure hydraulic gear pump with 11 displacement sizes from 0.24 to 1.95 in3/rev (4 to 32 cm3/rev). The standard mounting flange is SAE A-2 bolt, and the standard drive shaft is a 5/8 in. diameter straight with 5/32 in. straight key. Create the perfect equipment setup with help from a Chief hydraulic gear pump today.Note: This product may require up to 2 additional days for order processing prior to shipping
For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.
- Standard drive shaft is a 5/8 in. diameter straight shaft with 5/32 in. straight key
- Filtration: 25 micron or better
- Oil Viscosity: 6 to 200 CST
- Inlet Pressure: 12 to 32 PSI ABS
- Oil Temperature: -25 to 80 degrees C (-12 to 175 degrees F)
- Ambient: -22 to 55 degrees C (-8 to 130 degrees F)
- 5/8 in. shaft
- CW rotation style
- Operating pressure of the hydraulic gear pump: 3,626 PSI
- 4.16 at 2,000 RPM
- 0.48 CID
- Aluminum gear pump body with cast iron end plate construction
- Hydraulic gear pump has 11 displacement sizes from 0.24 to 1.95 in3/rev (4 to 32 cm3/rev)
- Standard mounting flange on the Chief gear pump is SAE A-2 bolt
| Brand | Chief |
|---|---|
| Country of Origin | Imported |
| Compatibility | Most application |
| Package Quantity | 1 |
| Primary Color | No Color |
| Primary Material | Other |
| Product Height | 0 N/A |
| Product Length | 0 N/A |
| Product Weight | 8.25 lb. |
| Product Width | 0 N/A |
| Warranty | 1 Year |
| Manufacturer Part Number | 252428 |
Q: Can this pump be belt driven?
9 months ago- A: Yes, the Chief 2-Bolt Hydraulic Gear Pump can be belt-driven, but it requires careful engineering and specific mounting considerations to manage the side load placed on the shaft by the belt and pulley system.9 months agoHelpful?
Q&As
Q: Can this pump be belt driven?
9 months ago- A: Yes, the Chief 2-Bolt Hydraulic Gear Pump can be belt-driven, but it requires careful engineering and specific mounting considerations to manage the side load placed on the shaft by the belt and pulley system.9 months agoHelpful?
