Chief 2 in. Bore x 12 in. Stroke WT Welded Hydraulic Cylinder

3.73 Reviews

Item # 130743099

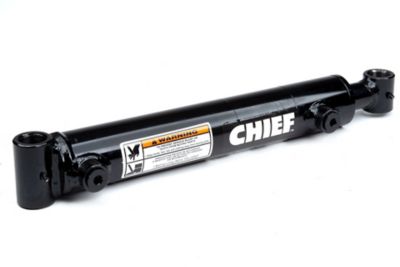

Image showing  2 in. Bore x 12 in. Stroke WT Welded Hydraulic Cylinder

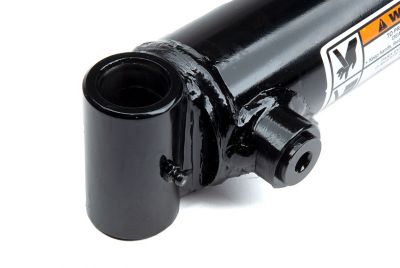

Image showing  2 in. Bore x 12 in. Stroke WT Welded Hydraulic Cylinder

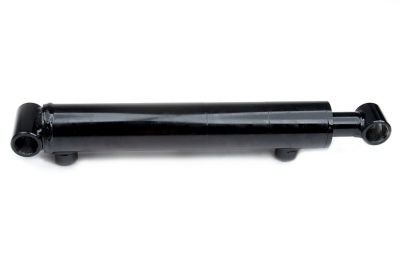

Image showing  2 in. Bore x 12 in. Stroke WT Welded Hydraulic Cylinder

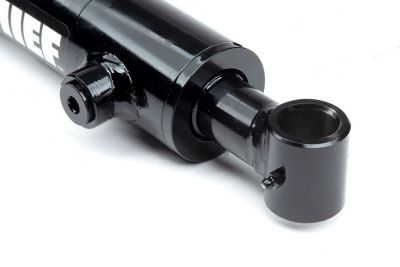

Image showing  2 in. Bore x 12 in. Stroke WT Welded Hydraulic Cylinder
Image showing  2 in. Bore x 12 in. Stroke WT Welded Hydraulic Cylinder
Image showing  2 in. Bore x 12 in. Stroke WT Welded Hydraulic Cylinder
$209.99

Neighbor's Club logo
Neighbor’s Club Members earn points with purchases.

Sign in or Join Now

Chief 2 in. Bore x 12 in. Stroke WT Welded Hydraulic Cylinder

3.73 Reviews

Item # 130743099

Image showing  2 in. Bore x 12 in. Stroke WT Welded Hydraulic Cylinder
Image showing  2 in. Bore x 12 in. Stroke WT Welded Hydraulic Cylinder
Image showing  2 in. Bore x 12 in. Stroke WT Welded Hydraulic Cylinder
Image showing  2 in. Bore x 12 in. Stroke WT Welded Hydraulic Cylinder
Image showing  2 in. Bore x 12 in. Stroke WT Welded Hydraulic Cylinder
Image showing  2 in. Bore x 12 in. Stroke WT Welded Hydraulic Cylinder
$209.99

This item is available online only

Delivering to

37027


Neighbor's Club logo
Neighbor’s Club Members earn points with purchases.

Sign in or Join Now

The Chief 2 in. Bore x 12 in. Stroke WT Welded Hydraulic Cylinder is a high-quality welded hydraulic cylinder designed for heavier loads. The rod and base ends of the hydraulic cylinder are welded cross-tubes with grease zerks. Designed for performance, it has a heavy-duty piston as well as a piston stem complete with wear rings to reduce friction, and the screw-in gland is removable from the rod end. You can rest easy knowing this cylinder is ideally suited for construction, metal fabricating, waste/recycling, OEM trailer manufacturing, and agricultural applications.Note: This product may require up to 2 additional days for order processing prior to shipping

For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.

  • Intended use: double-acting applications
  • Piston: ductile iron with wear ring(s)
  • Gland: ductile iron, screw-in design with wear ring
  • Tube: precision-honed steel
  • Rod: ground and polished chromed steel, minimum 75,000 PSI yield
  • Butt plate: steel
  • End mounts: steel cross-tubes with grease zerk
  • Spacer tube: steel on 48 in. stroke and above
  • Gland seal: polyurethane U-cup
  • Wiper: polyurethane
  • Piston seal: 755 Hallite with wear ring(s)
  • All other seals are selected and designed for maximum life
  • Functionally tested and pressurized to 1.5 times the normal working pressure for max reliability
  • 3,000 PSI operating range on the hydraulic cylinder
  • Pin diameter of 1 in. and rod diameter of 1.25 in.
  • Measures 19 in. retracted and 31 in. extended
  • Column load: 9,420 lb.
  • Includes SAE O-ring port hookups on small bores and NPT on the welded hydraulic cylinder's large bores
  • Made in the USA
