Chapin 25 gal. 1-Nozzle 12V Tow-Behind ATV Sprayer, Mixes On Exit (M.O.E.)
Online Only
Chapin 25 gal. 1-Nozzle 12V Tow-Behind ATV Sprayer, Mixes On Exit (M.O.E.)
Item # 1462415
$549.99
or
or
Neighbor’s Club Members earn points with purchases.
Online Only
Chapin 25 gal. 1-Nozzle 12V Tow-Behind ATV Sprayer, Mixes On Exit (M.O.E.)
Item # 1462415
$549.99
or
or
$46/mo.† suggested payments with 12 Months Financing or earn $27 in Rewards+ on this purchase.
This item is available online only
Out of stock delivering to
37027
Neighbor’s Club Members earn points with purchases.

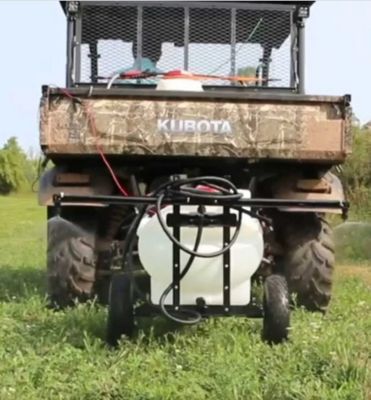

Stop wasting water, chemical concentrate and time with Mixes on Exit, the clean tank spraying system from Chapin. Chapin's 97761E 25-gallon tow behind ATV spot sprayer is part of our Mixes on Exit system. The water tank is completely separate from the concentrate tank, and it only mixes when you're applying your chemical. It's designed around two tanks - a 25-gallon water tank and a 2-gallon concentrate tank. Easily connect the pump to your ATV/UTV/lawn tractor battery. The included lockable poly shut-off and wand provide versatile, adjustable spraying on the go. A simple mix valve control allows you to adjust the concentrate from 1 to 15 ounces per-Gallon. Its quick connect feature is an added benefit that makes changing the concentrate tanks quick and efficient. Additional concentrate tanks are available and sold separately. You can swap your chemicals out on the fly when you're on the job. Made in the USA with global materials.
For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.
Looking for more information on sprayers? Check out our guide on agricultural and lawn sprayers in the product documents section.
- Dual tank design: keep your water and concentrate separate until youre ready to spray; no more messy and wasteful premixing; no more wasted chemical or clean water; adjustable mix valve allows 1-15 ounces of concentrate per-Gallon of water

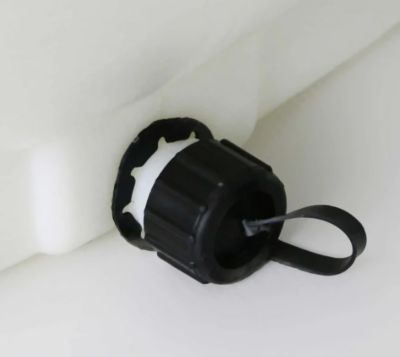

- 25-gallon water tank: chemical-resistant, weather-resistant translucent poly tank to hold only clean water; no need to pre-measure chemical in large tank; removable chemical concentrate tank (6-8061); drain cap on large tank to quickly empty water
- Quick connect: 2.5 GPM Chapin pump clips to your ATV/lawn tractor battery easily with alligator clips; no additional parts required to hook up the pump; quick connect chemical tank to water tank and quickly swap concentrate tanks (additional concentrate tanks sold separately)

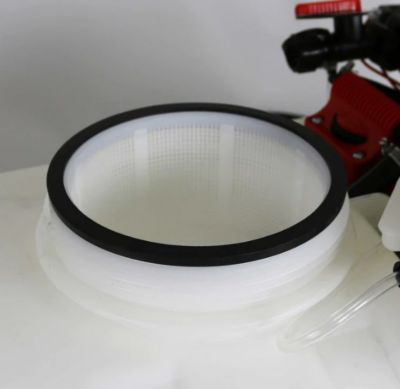

- Triple filtration and seals: Chapins standard filter cap basket, in-tank filter and filter at shut-off so youll have less downtime disassembling to unclog you hose and wand; chemical-resistant seals and gaskets handle stronger pesticides, fertilizers, weed killers
- Components: adjustable poly cone nozzle, boom and spot spray functions, 20-inch poly wand and 15-feet of reinforced hose
- Made in the USA with global materials: designed and produced in the USA with US-based customer service and technical support, located at Chapins home base in Batavia, NY; backed by Chapins 1-year limited warranty
| Brand | Chapin |
|---|---|
| Country of Origin | Made in USA |
| Boom Maximum Spray Width | No Boom |
| Boom Nozzle Count | 1 |
| Chemical Compatibility | Fertilizer |

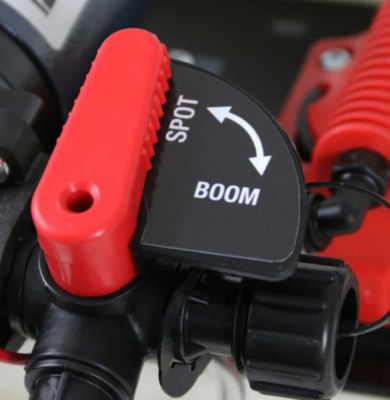

| Features | Water and chemical stay separate and only mix when spraying, adjustable mix valve allows 1 - 15 oz. of concentrate per gal. of water, quickly switch from boom to spot spray, hitches up to ATV/UTV or lawn tractor |
| Hose Diameter | 3/4 in. |
| Hose Length | 180 in. |
| Maximum Flow Rate | 2.5 GPM |
| Maximum Operating Pressure | 60 PSI |
| Power Type | 12 Volt |
| Product Height | 38 in. |
| Product Length | 19.2 in. |
| Product Weight | 59.6 lb. |
| Product Width | 16.8 in. |
| Pump Type | Diaphragm |
| Tank Capacity | 25 gal. |
| Tank Material | Polyethylene |
| Warranty | 1 year limited warranty |
| Manufacturer Part Number | 97761E |
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 4 of 4 Questions
Newest questions
Q: What boom kit is used with this sprayer?
10 months ago1 Answer
- A: Hi, for model 97761E 25 Gallon MOE Sprayer comes with 6428 2 nozzle boom spray. If you have any further questions reach out to Product Support at 1800-444-3140 option 1. Thank you.10 months agoHelpful?
Q: 1) What size is axle (length). I need sprayer wheels to clear 4' wide bed. 2) Can boom spray be adjusted to 4' 3) Is there a sock filter in both tank pick-up tubes?
4 years ago1 Answer
- A: Hi. For the Chapin 97761: “The First Ever Clean Tank Tow Behind with Boom” - the axle length is 27.1 inches long, the boom cannot be adjusted to 4’, and both pickup tubes do have filters. If you have any further questions, you can also reach our Product Support Team at 1-800-444-3140 option 1. Thank you for your question.4 years agoHelpful?
Q: 1. are the spray heads included? 2. what is the width (coverage) of the sprayed material in each path you make?
4 years ago1 Answer
- A: Hi. The Chapin 97761: “The First Ever Clean Tank Tow Behind with Boom” does include spray heads. The spray heads for the boom each spray around 3.5ft for a total of 7ft. If you have any further questions, you can also reach our Product Support team at 1-800-444-3140 option 1. Thank you for your question.4 years agoHelpful?
Q: Description shows "zero" spray heads. Does this come with a spray boom or is that an optional item. Also is there a list of optional items that can be added to this sprayer?
4 years ago1 Answer
- A: Hi. The Chapin: 97761: “The First Ever Clean Tank Tow Behind with Boom” does come with a boom. The manual for the sprayer will include a list common replacement parts. If you have any further questions, you can also reach our Product Support team at 1-800-444-3140 option 1. Thank you for your question.4 years agoHelpful?
Q&As
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 4 of 4 Questions
Newest questions
Q: What boom kit is used with this sprayer?
10 months ago1 Answer
- A: Hi, for model 97761E 25 Gallon MOE Sprayer comes with 6428 2 nozzle boom spray. If you have any further questions reach out to Product Support at 1800-444-3140 option 1. Thank you.10 months agoHelpful?
Q: 1) What size is axle (length). I need sprayer wheels to clear 4' wide bed. 2) Can boom spray be adjusted to 4' 3) Is there a sock filter in both tank pick-up tubes?
4 years ago1 Answer
- A: Hi. For the Chapin 97761: “The First Ever Clean Tank Tow Behind with Boom” - the axle length is 27.1 inches long, the boom cannot be adjusted to 4’, and both pickup tubes do have filters. If you have any further questions, you can also reach our Product Support Team at 1-800-444-3140 option 1. Thank you for your question.4 years agoHelpful?
Q: 1. are the spray heads included? 2. what is the width (coverage) of the sprayed material in each path you make?
4 years ago1 Answer
- A: Hi. The Chapin 97761: “The First Ever Clean Tank Tow Behind with Boom” does include spray heads. The spray heads for the boom each spray around 3.5ft for a total of 7ft. If you have any further questions, you can also reach our Product Support team at 1-800-444-3140 option 1. Thank you for your question.4 years agoHelpful?
Q: Description shows "zero" spray heads. Does this come with a spray boom or is that an optional item. Also is there a list of optional items that can be added to this sprayer?
4 years ago1 Answer
- A: Hi. The Chapin: 97761: “The First Ever Clean Tank Tow Behind with Boom” does come with a boom. The manual for the sprayer will include a list common replacement parts. If you have any further questions, you can also reach our Product Support team at 1-800-444-3140 option 1. Thank you for your question.4 years agoHelpful?
Similar Items
-
-
-
-
-
Top Rated
-
-
-
-
-
-
-
Items You May Like
-
-
-
Top Rated
-
-
-
-
-
-
-
-
Top Rated
-
Top Rated
Customers Also Bought
-
-
-
-
-
-
-
-
-
-
-
-
Top Rated
Reviews
- setup
- packaging
- price
- satisfaction
- instructions
- noise level
- pattern
- purchase
1 to 4 of 23 Reviews .
1 – 4 of 23 Reviews
Most Recent
Review 1
1 out of 5 stars.
Vendor is sending out used defective junk
11 months ago

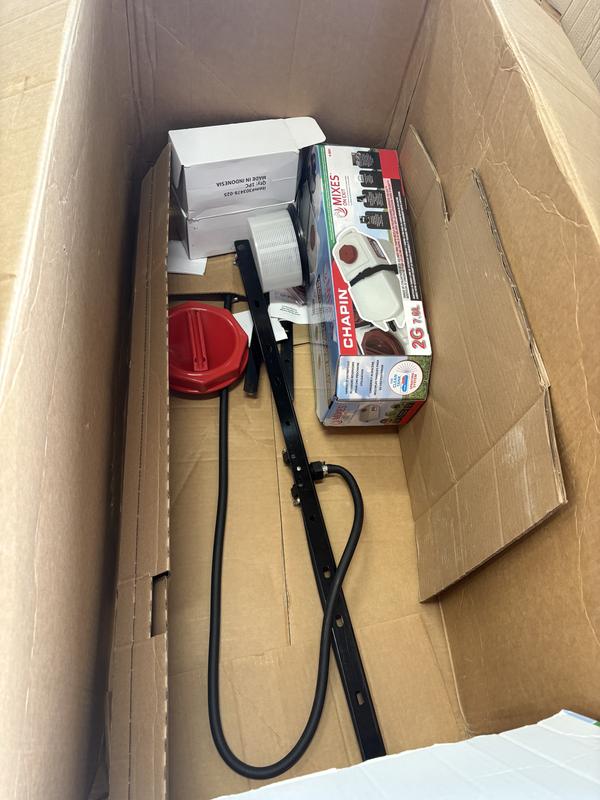

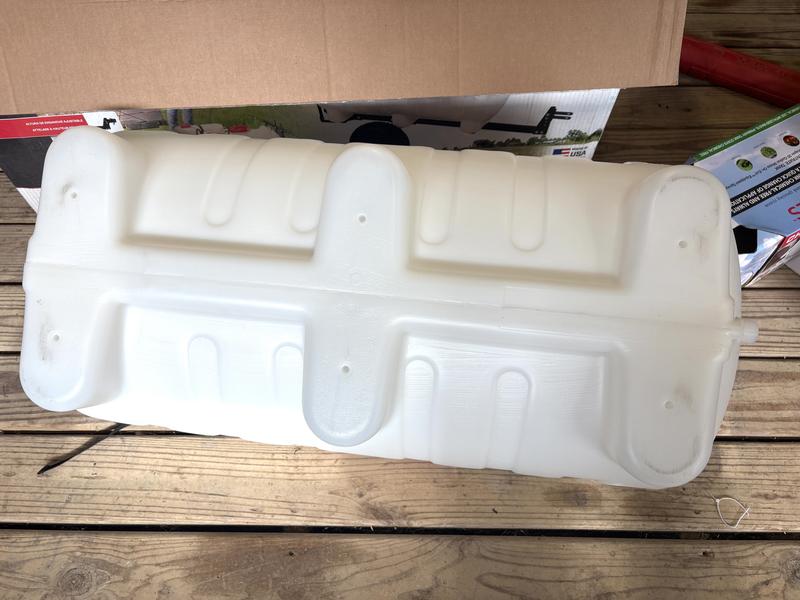

First unit I purchased was obviously a defective return. Box was re-taped and heavily damaged. Parts strewn around inside, spray wand and instructions missing. Contacted TSC a week ago and did not hear back yet. I ordered a second unit because its urgent. Second unit came with no metal nuts in the bottom of the tank to screw it onto the frame. Both units were defective but I managed to make 1 working unit out of the two boxes. I went on my account and the item says 'not returnable' I do not have time to figure out what is missing from the first unit (with no assembly directions) to deal with the company and replacement parts. When I buy a brand new item it should be brand new. Shame on the company and TSC for not allowing returns on such a shoddy item/vendor.
SweepstakesYes
No, I do not recommend this product.
Scottsdale, AZ
Review 1
2 out of 5 stars.
Good and Very Bad
2 years ago
Sprayer works, but assembly was awful. Nothing aligned and read that on other posts but thought maybe it was a one-off. Nope, probably why they are no longer selling this product and clearing out the inventory.
SweepstakesYes
No, I do not recommend this product.
Response from Chapin International:
2 years ago
Chapin International
Hi JShooz, we're sorry to hear about the assembly issue. Would you please contact us so we can get more information? Thank you! 1-800-444-3140 option 1 and reference this review.
Review 1
1 out of 5 stars.
Terrible
2 years ago
I was disappointed with the product from the word go. Box missed a significant amount of parts even though the box was sealed. Took over 2 weeks to get the parts from the manufacturer.
SweepstakesYes
No, I do not recommend this product.
Review 1
4 out of 5 stars.
Great sprayer
3 years ago
Sprayer works great, needs better instruction on mixing valve operation
Sweepstakes EntryYes
