Champion Power Equipment 12 V Electric Truck/SUV Winch Kit with Remote Control, 10,000 lb. Capacity
Item # 1213581
Neighbor’s Club Members earn points with purchases.
Item # 1213581
Out of stock at or near
Grassland (franklin) TN
Neighbor’s Club Members earn points with purchases.

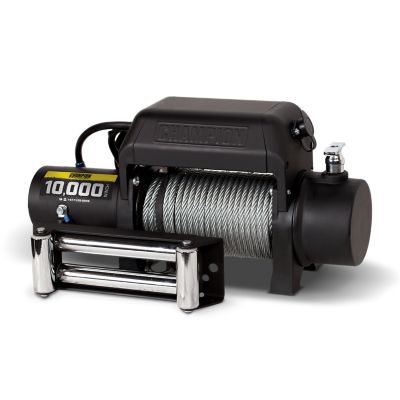

Get powerful, controlled pulling performance with the Champion Power Equipment 12V Electric Truck/SUV Winch Kit with Remote Control. This truck winch features a 3.6 HP, 12V DC series-wound motor and a 10,000-lb. rated line pull for demanding recovery jobs. A 216:1 gear reduction ratio delivers line speeds of 3.9 FPM under full load and 15.7 FPM with no load. The 85 ft. x 3/8 in. galvanized super-duty aircraft cable is designed to resist fraying in abrasive terrain such as rocks, mud and sand. A roller fairlead guides the cable onto the 2.5 in. x 8.8 in. drum for smooth operation and helps maximize cable life. The three-stage planetary gear system, dynamic braking system and free-spooling clutch provide controlled winching performance. A hand-held quick-connect remote control with a 12 ft. cable offers convenient control from a safe distance. Backed by Champion Support, a 2-year limited warranty and free lifetime technical support, this SUV winch kit is built to provide reliable performance when you need it.
For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.
Looking for more information on truck accessories? Check out our guide on truck accessories in the product documents section.
- 10,000 lb. rated line pull powered by a 3.6 hp 12V DC series wound motor
- Line speed of 3.9 FPM with a full load, and 15.7 FPM with no load

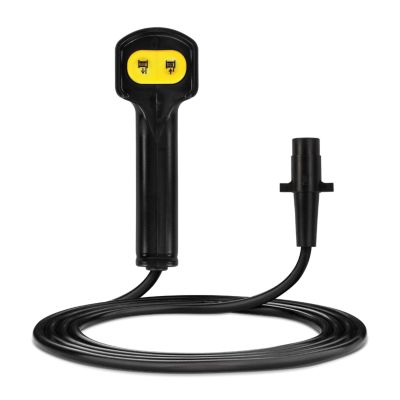

- Handheld quick-connect remote control and free-spooling clutch create an easier than ever winching experience

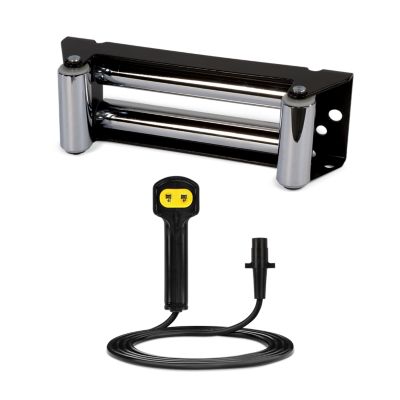

- Roller fairlead creates a safe and smooth pull with the 85 ft. galvanized, super-duty aircraft cable
- Lifetime technical support from dedicated experts
- 2 year limited warranty
- 2-stage planetary gear system
- Dynamic braking system
| Brand | Champion Power Equipment |
|---|---|
| Country of Origin | Imported |
| Braking Mechanism | Dynamic |
| Capacity | 10,000 lb. |
| Clutch Type | Free-spooling |
| Compatibility | Truck/SUV |
| Engine Brand | N/A |
| Engine Displacement | 0 cc |
| Engine Type | None |
| Fairlead Included | Yes |
| Fairlead Type | Roller |
| Features | Cable Included |
| Gear Ratios | 9 days, 0:01:00 |
| Handle Length | 12 ft. |
| Horsepower | 3.6 HP |
| Line Diameter | 3/8 in. |
| Line Length | 85 ft. |
| Line Pull Capacity | 10,000 lb. |
| Line Speed | 3.9 FPM |
| Maximum Operating Range | 12 ft. |
| Mounting Bolt Length | 10 in. |
| Mounting Bolt Width | 4.5 in. |
| Number of Speeds | 10 |
| Power Type | 12 Volt |
| Primary Material | Steel |
| Product Height | 5.6 in. |
| Product Length | 21.9 in. |
| Product Weight | 85 lb. |
| Product Width | 10.5 in. |
| Line Type | Galvanized |
| Voltage | 12V |
| Warranty | 2-year limited warranty with free lifetime technical support from dedicated experts |
| Motor Type | Electric |
| Manufacturer Part Number | 11008 |
Q: DOES THE GEAR BOX REQUIRE OIL
4 years ago- A: All moving parts within the Electric Winch having been lubricated using high temperature lithium grease at the factory. No internal lubrication is required. Lubricate the cable assembly periodically using a light penetrating oil. Thank you.4 years agoHelpful?
Q: Can I purchase the handheld remote remote separately for model # 11008? Where?
5 years ago- A: Absolutely. All replacement parts are acquired directly through us. To place an order for the remote, please give us a call at 1-877-338-0999 or visit our online store here: https://shop.championpowerequipment.com/en-us/category-parts/switch-assembly-black-p1011001--b?returnurl=%2fen-us%2fsearch%3fq%3d%2bp1011001-b5 years agoHelpful?
Q: Is the roller fairlead attached to the winch or does a mounting plate have to be purchased?
5 years ago- A: This incredibly strong cable is guided onto the 2.5 by 8.8-inch drum through the reliable roller fairlead to maximize the life of the cable.5 years agoHelpful?
Q: What kind of remote does it have wireless or wired ?
10 years ago- A: This winch includes a wired remote control.10 years agoHelpful?
Q&As
Q: DOES THE GEAR BOX REQUIRE OIL
4 years ago- A: All moving parts within the Electric Winch having been lubricated using high temperature lithium grease at the factory. No internal lubrication is required. Lubricate the cable assembly periodically using a light penetrating oil. Thank you.4 years agoHelpful?
Q: Can I purchase the handheld remote remote separately for model # 11008? Where?
5 years ago- A: Absolutely. All replacement parts are acquired directly through us. To place an order for the remote, please give us a call at 1-877-338-0999 or visit our online store here: https://shop.championpowerequipment.com/en-us/category-parts/switch-assembly-black-p1011001--b?returnurl=%2fen-us%2fsearch%3fq%3d%2bp1011001-b5 years agoHelpful?
Q: Is the roller fairlead attached to the winch or does a mounting plate have to be purchased?
5 years ago- A: This incredibly strong cable is guided onto the 2.5 by 8.8-inch drum through the reliable roller fairlead to maximize the life of the cable.5 years agoHelpful?
Q: What kind of remote does it have wireless or wired ?
10 years ago- A: This winch includes a wired remote control.10 years agoHelpful?
