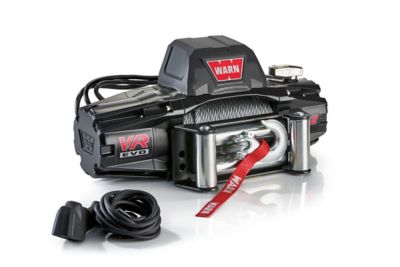

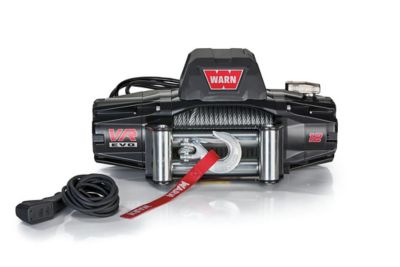

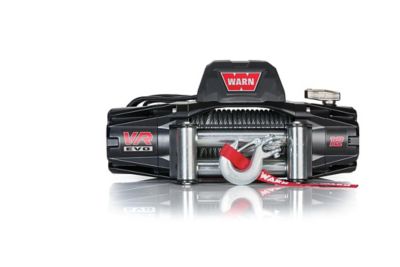

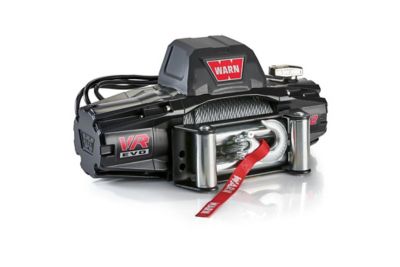

Warn 12V Electric VR12 Truck Winch, 12,000 lb. Capacity, Wire Rope
Item # 229314499
Neighbor’s Club Members earn points with purchases.
Valid 5/15/2026 - 7/5/2026
This item is available online only
Delivery to
Free standard delivery on online footwear & Clothing purchases of $49 and over.
Neighbor’s Club Members earn points with purchases.
Rely on the Warn 12V Electric VR12 Truck Winch. Ideal for 3/4 and 1-ton pickups and all types of large frame rigs that require longer and heavier pulls. The VR EVO 12 features IP68-rated waterproof construction, an ultra-reliable Albright ® contactor inside a relocatable control pack, and a state-of-the-art, two-in-one remote for added ease of use and versatility. With it's fast line-speed and lower amp draw, the VR EVO winches are the hardest-working standard-duty winches we've ever made, with tactical styling that looks great up front and at a price that won't pull you out of your budget.
Looking for more information on truck accessories? Check out our guide on truck accessories in the product documents section.
- High-Performance Albright Contactor Delivers Maximum Reliability
- IP68-Rated Waterproof Winch Construction Keeps The Elements Out
- Control Packs Can Be Relocated For Low-Profile Installations
- Two-In-One Remote With Wired AND Wireless Options For Ease Of Use And Versatility
- A Powerful Series-Wound Motor And Planetary Gear Train Deliver Faster Line Speed Under Load, With Lower Amp Draw
| Brand | Warn |
|---|---|
| Country of Origin | Imported |
| Braking Mechanism | Disc |
| Capacity | 12000 lb. |
| Clutch Type | Planetary Drive Gear |
| Compatibility | ATV/ UTV |
| Engine Brand | Warn |
| Engine Displacement | 12 V |
| Engine Type | Electric |
| Fairlead Included | Yes |
| Fairlead Type | Roller |
| Features | Durable, One-Piece Cast-Aluminum Tie-Plate For Added Strength And Durability |
| Gear Ratios | 234:1 |
| Horsepower | 5.5hp |
| Line Diameter | 3/8 in. |
| Line Length | 85 ft. |
| Line Pull Capacity | 12000 lb. |
| Line Speed | 4 FPM |
| Mounting Bolt Length | 10 in. |
| Mounting Bolt Width | 4.5 in. |
| Number of Speeds | 1 |
| Power Type | 12 Volt |
| Primary Material | Steel |
| Product Height | 11.4 in. |
| Product Length | 22.8 in. |
| Product Weight | 90.8 lb. |
| Product Width | 11.8 in. |
| Line Type | Rope |
| Voltage | 12 V |
| Warranty | Limited Lifetime Warranty On Mechanical Components And Limited 7 Year Warranty On Electrical Components |
| Motor Type | Electric |
| Manufacturer Part Number | W36103254 |
Q: What is the remote control operating range?
6 months ago- A: Hello, thank you for your question. The included wired remote works up to about 12 ft from the winch.6 months agoHelpful?
Q: what is the warranty for this product
9 months ago- A: Hello, thank you for your question. It includes a limited lifetime warranty on mechanical components and limited 7 year warranty on electrical components.9 months agoHelpful?
Q&As
Q: What is the remote control operating range?
6 months ago- A: Hello, thank you for your question. The included wired remote works up to about 12 ft from the winch.6 months agoHelpful?
Q: what is the warranty for this product
9 months ago- A: Hello, thank you for your question. It includes a limited lifetime warranty on mechanical components and limited 7 year warranty on electrical components.9 months agoHelpful?
