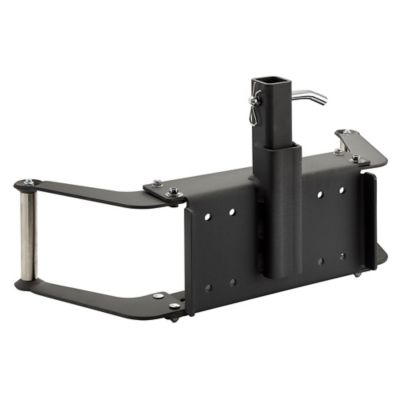

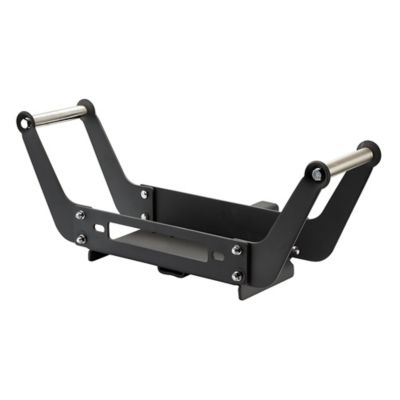

Traveller Quick Mounting Plate for Truck Winch

SKU: 107830699
Traveller Quick Mounting Plate for Truck Winch
Enter Zip Code for price More Info
Product price

Save Up To
See price at checkout More Info
Product Rating is 4.1
4.1
 (25)

Quantity

TSC of brevard #1686
1232 asheville hwy
brevard, NC 28712
(828) 877-5200
TSC of brevard #1686
1232 asheville hwy
brevard, NC 28712
(828) 877-5200
Check Availability at Other Stores
Standard Delivery Not Available to
Notice: This item will ship within 0 days.
This product may require up to 0 additional days for order processing prior to shipping.
Change Delivery Location

Item Information

The Traveller Quick Mounting Plate has up to 12,000 lb. capacity.

  • Designed to fit Traveller 8000 lb. or larger truck winch

Specification Description
Product Finish: Powder Coat
Warranty: 90 Day Limited Warranty
Application: Metal Drilling
Product Weight: 23.15 lb.
Product Length: 26-1/2 in.
Package Quantity: 1
Brand: Traveller
Product Thickness: 6mm
Material: Steel
Product Height: 10-1/2 in.
Product Width: 11-11/16 in.
Manufacturer Part Number QM10000
Traveller Quick Mounting Plate for Truck Winch is rated 4.1 out of 5 by 25.

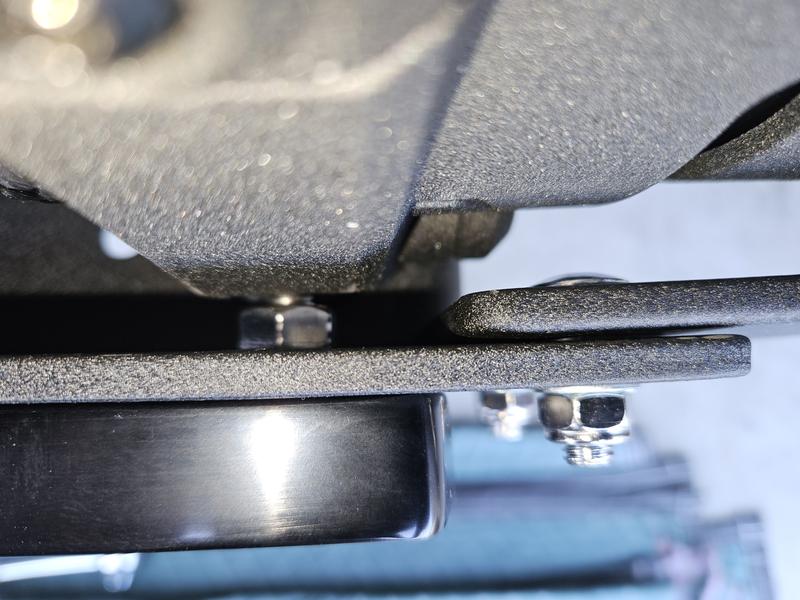

Rated 1 out of 5 by from Bought a new Traveller 10,000 pound winch. Got this at a Tracter supply, when home to install it , open a factory sealed box and did not have any bolts to connect the winch to the plate, and the plate is closed in around the winch, so u cannot get your fingers or wrench in to hold the nuts, took me about hour and a half to do a 20 min job terrible engineering, but is easy to carry my 10,000 winch.
Date published: 2019-11-04
Rated 5 out of 5 by from Allows for multiple uses Easy setup, allows for various setup like vehicle rear or on vehicle trailer nose for vehicle recovery .
Date published: 2019-09-26
Rated 5 out of 5 by from Winch Mount Very easy to set up and extremely convenient to move front bumper to rear bumper.
Date published: 2019-09-03
Rated 5 out of 5 by from Great product I would recommend to anyone. Thank Great product I would recommended to anyone. Thanks
Date published: 2019-08-28
  • y_2020, m_2, d_25, h_12
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.5
  • cp_1, bvpage1
  • co_hasreviews, tv_12, tr_13
  • loc_en_US, sid_107830699, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_tractorsupply
  • bvseo_sdk, java_sdk, bvseo-4.0.0
  • LOCAL, getContent, 6ms
  • REVIEWS, PRODUCT

What is the winch bolt mount pattern? Standard pattern is 4 1/2" x 10" but some store brands are different.

Asked by: f3user
The mounting bolt pattern is a standard 4 1/2" x 10".
Answered by: Valery
Date published: 2019-02-12

What is the distance between the handles? I have a Husky 10 winch and wanted to make sure I would be able to get it between the handles.

Asked by: ZPM22
The distance between the handles is 674mm
Answered by: Nancyb
Date published: 2019-02-12

What size is the receiver? Can I get one with a inch and a quarter receiver?

Asked by: Pumpkinking
The receiver is 2". A 1 1/4" is typically used with 2500/3500/4500 lb. winches. TSC only offers the quick mount in a 2".
Answered by: PHailey
Date published: 2019-02-12

will it work on a 10,000lb Warn winch?

Asked by: coach555146
Traveller quick mount is used for 8,000lbs-12,000lbs truck winch which the mounting dimension is 10in.X4.5in.(254mm X 114.3mm), the overall winch cover dimensions should not exceed 23.2in.(589mm)L X 6.9in.(175mm)W X 9.9in.(251mm)H. Please check to see if the 10,000lb Warn winch’s size is within that range, otherwise, it is not workable.
Answered by: Valery
Date published: 2019-02-12
