Hopkins Towing Solutions 5-5/8 in. 12V Double-Faced Round Stop/Tail/Turn/Park Light, Red/Amber
Item # 16565699

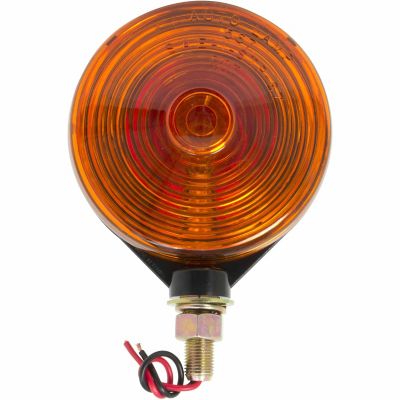

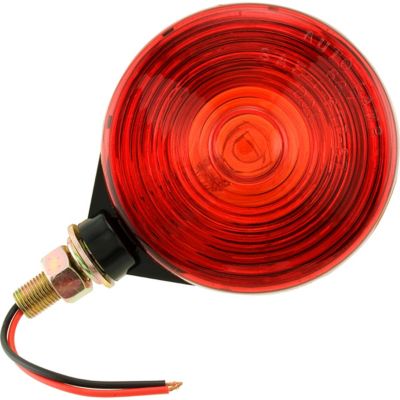

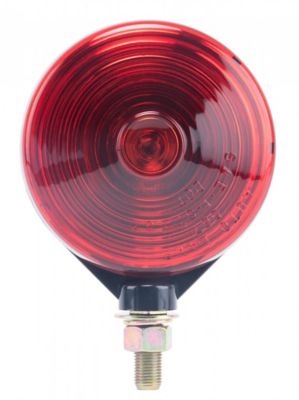

The double-faced stop/tail/turn light is designed to conform to applicable U.S. FMVSS108 and Canadian CMVSS safety standards. The red side provides stop/tail/turn function and the amber side provides park and turn functions. Quickly mount the light using the pedestal mount design. Easily replace the bulb and snap-on lens for convenient maintenance.
- Works with 12 V systems
- Durable polycarbonate lens and ABS plastic housing
- Replacement bulb #2057
- Pedestal mount - easy to install
- Current draw: 3.0 Amps
| Brand | Hopkins Towing Solutions |
|---|---|
| Country of Origin | Imported |
| Bulb Type | Incandescent |
| Compatibility | 12V |
| Features | Durable polycarbonate lens and ABS plastic housing |
| Light Color | Multi |
| Mounting Location | Other |
| Mounting Type | Bolt-On |
| Number of Connections | 1 |
| Package Quantity | 1 |
| Power Type | 12 Volt |
| Primary Material | Plastic |

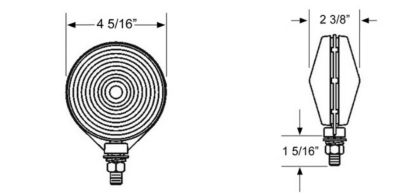

| Product Height | 5-5/8 in. |
| Product Length | 2-3/8 in. |
| Product Weight | 4.3 lb. |
| Product Width | 1/2 in. |
| Shape | Round |
| Voltage | 12V |
| Wattage | 36W |
| Wire Length | 4 in. |
| Manufacturer Part Number | T5672ARB |
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 7 of 7 Questions
Newest questions
Q: Where to get Replacement lense
a year ago1 Answer
- A: Hi, Replacement parts and accessories can be ordered directly from Hopkins Towing Solutions using the information below. ***Hopkins Towing Solutions*** https://www.hopkinstowingsolutions.com/support/ Phone: 1-800-835-0129a year agoHelpful?
Q: Will these lights replace the flashers on my newly inherited Ford 1700? There is only one wire going to each light. I don’t think it has turn signals.
3 years ago1 Answer
- A: Hi, With that being such an older vehicle, we would not have information on the lighting system. However, a quick Google search brought up this website, and it looks like this light could be a match! Copy and paste the link into a website browser to view. https://www.yesterdaystractors.com/3 years agoHelpful?
Q: I have 1 wire on my tractor which one is hit on the light
3 years ago1 Answer
- A: Hi, We're not really sure what your asking, can you reword and resubmit your question?3 years agoHelpful?
Q: I only need the Brake Light so which wire is the hot wire for the Brake light?
4 years ago1 Answer
- A: Please refer to the video linked below. https://youtu.be/_7A6vhJQP2k4 years agoHelpful?
Q: what size is the the threaded stud mount?
5 years ago1 Answer
- A: Hello, The threaded stud mount is 1 5/16". Thank you for your question!5 years agoHelpful?
Q: I installed this light on my trailer. I have break and running lights, but No blinker. Could this be a result of the wires being connected in the wrong configuration? Would switching the wires remedy this problem?
7 years ago1 Answer
- A: That could be a wiring issue or a signal issue from the vehicle. Please check this turn signal/brake wire to make sure that wire is carrying both signals. If they are separate on the vehicle, please install a converter. If both signals are on the same wire and you still do not get turn signals, you may need to call the manufacturer, Hopkins MFG - 800-835-0129, to do some troubleshooting. Also make sure the trailer is on the ball on the vehicle to ground it.7 years agoHelpful?
Q: Can this light be used as a replacement for the Blazer Magnetic lights?
7 years ago1 Answer
- A: No, these are not replacements for the Blazer magnetic towing lights.7 years agoHelpful?
Q&As
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 7 of 7 Questions
Newest questions
Q: Where to get Replacement lense
a year ago1 Answer
- A: Hi, Replacement parts and accessories can be ordered directly from Hopkins Towing Solutions using the information below. ***Hopkins Towing Solutions*** https://www.hopkinstowingsolutions.com/support/ Phone: 1-800-835-0129a year agoHelpful?
Q: Will these lights replace the flashers on my newly inherited Ford 1700? There is only one wire going to each light. I don’t think it has turn signals.
3 years ago1 Answer
- A: Hi, With that being such an older vehicle, we would not have information on the lighting system. However, a quick Google search brought up this website, and it looks like this light could be a match! Copy and paste the link into a website browser to view. https://www.yesterdaystractors.com/3 years agoHelpful?
Q: I have 1 wire on my tractor which one is hit on the light
3 years ago1 Answer
- A: Hi, We're not really sure what your asking, can you reword and resubmit your question?3 years agoHelpful?
Q: I only need the Brake Light so which wire is the hot wire for the Brake light?
4 years ago1 Answer
- A: Please refer to the video linked below. https://youtu.be/_7A6vhJQP2k4 years agoHelpful?
Q: what size is the the threaded stud mount?
5 years ago1 Answer
- A: Hello, The threaded stud mount is 1 5/16". Thank you for your question!5 years agoHelpful?
Q: I installed this light on my trailer. I have break and running lights, but No blinker. Could this be a result of the wires being connected in the wrong configuration? Would switching the wires remedy this problem?
7 years ago1 Answer
- A: That could be a wiring issue or a signal issue from the vehicle. Please check this turn signal/brake wire to make sure that wire is carrying both signals. If they are separate on the vehicle, please install a converter. If both signals are on the same wire and you still do not get turn signals, you may need to call the manufacturer, Hopkins MFG - 800-835-0129, to do some troubleshooting. Also make sure the trailer is on the ball on the vehicle to ground it.7 years agoHelpful?
Q: Can this light be used as a replacement for the Blazer Magnetic lights?
7 years ago1 Answer
- A: No, these are not replacements for the Blazer magnetic towing lights.7 years agoHelpful?
