Hopkins Towing Solutions 5-1/4 in. 12V 7-Function Square Stop/Tail/Turn Light, Fits Trailers Under 80 in. W
$14.99
Hopkins Towing Solutions 5-1/4 in. 12V 7-Function Square Stop/Tail/Turn Light, Fits Trailers Under 80 in. W
Hopkins Towing Solutions 5-1/4 in. 12V 7-Function Square Stop/Tail/Turn Light, Fits Trailers Under 80 in. W
Item # 16522499
$14.99
Get everything you need
Neighbor’s Club Members earn points with purchases.
Hopkins Towing Solutions 5-1/4 in. 12V 7-Function Square Stop/Tail/Turn Light, Fits Trailers Under 80 in. W
Item # 16522499
$14.99
Out of stock at
Grassland (franklin) TN
Delivery to
Pickup Nearby at OLD HICKORY TN(24.1) miles FREE
Free standard delivery on online footwear & Clothing purchases of $49 and over.
Get everything you need
Neighbor’s Club Members earn points with purchases.

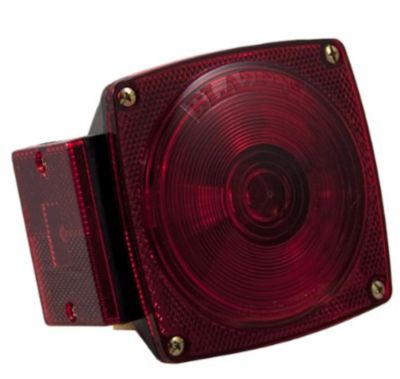

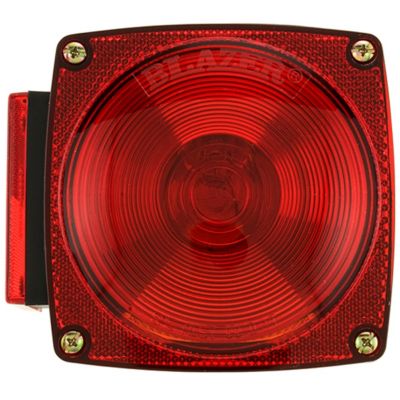

The 7-function left side combination stop/tail/turn light is designed to conform to applicable US FMVSS108 and Canadian CMVSS safety standards for all vehicles and trailers under 80" wide. This light provides 7 legal functions to include stop, tail, turn, rear and side reflex, side marker and license illumination. Easily replace lens and bulb for convenient maintenance. Stud mounts on industry standard 2" centers.
- Replacement left hand/driver side light
- Replacement bulb #168 and 1157
- Stud mount installation
- Works with 12 V systems
- ABS plastic housing and durable acrylic lens provide protection against corrosion Warranty
| Brand | Hopkins Towing Solutions |
|---|---|
| Country of Origin | Imported |
| Bulb Type | Incandescent |
| Compatibility | 12V systems |
| Features | ABS plastic housing and durable acrylic lens provide protection against corrosion |
| Light Color | Red |
| Mounting Location | Vehicle Mounted |
| Mounting Type | Other |
| Number of Connections | 3 wires |
| Package Quantity | 1 |
| Power Type | 12 Volt |
| Primary Material | Plastic |
| Product Height | 4-1/2 in. |
| Product Length | 2-7/8 in. |
| Product Weight | 0.6 lb. |
| Product Width | 5-1/4 in. |
| Shape | Square |
| Voltage | 12V |
| Wattage | 3 W |
| Wire Length | 4 in. |
| Manufacturer Part Number | T83B |
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 7 of 7 Questions
Newest questions
Q: Can the left light be rotated 180 degrees and used as right by changing wiring?
a year ago1 Answer
- A: Hello, thank you for your question. Please reach out to the manufacturer directly for assistance with this specific application. ***Hopkins Towing Solutions*** https://hopkinstowingsolutions.com/contacts/ 1-800-835-0129 | 8:00 am - 5:00 pm CST (M-F)a year agoHelpful?
Q: yellow wire designation? brown wire designation? blue wire designation?
3 years ago1 Answer
- A: Hi there, Per the vendor: The yellow wire is left stop/turn lights. The brown wire is tail lights. There is no blue wire on the T83B trailer light. the color code is on the bottom of the light where the wires are going into the housing.3 years agoHelpful?
Q: I'm looking for a light that has the license plate light it's square it will be the left one
4 years ago1 Answer
- A: For additional products, please contact techsupport@hopkinsmfg.com.4 years agoHelpful?
Q: What is the wire size? Someone mentioned hooking up the wires according to the diagram -- what diagram? Thanks in advance.
4 years ago1 Answer
- A: For further assistance please call tech support at 8474786295 or email at blazertechsupport@matholdingsinc.com.4 years agoHelpful?
Q: Is this light sealed? I want to use it on a boat trailer and will be submerged from time to time.
5 years ago2 Answers
- A: No they aren’t sealed.5 years agoHelpful?
Q: I purchased a right and left replacement, I wired the right and it works fine, I can't get the left side to work. The left side has an extra wire(white) not sure where it goes, I have the ground (white) attached
7 years ago1 Answer
- A: The white wire is ground and is usually grounded to the frame of the trailer. Make sure the ground point is clean and the connection is good. If the right side is working and the left side is not you can run a jumper wire from the left side ground to the right side, since you know that side is good, and ground it there.7 years agoHelpful?
Q: are bulbs include?
9 years ago1 Answer
- A: Yes, the bulbs are included on the back.9 years agoHelpful?
Q&As
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 7 of 7 Questions
Newest questions
Q: Can the left light be rotated 180 degrees and used as right by changing wiring?
a year ago1 Answer
- A: Hello, thank you for your question. Please reach out to the manufacturer directly for assistance with this specific application. ***Hopkins Towing Solutions*** https://hopkinstowingsolutions.com/contacts/ 1-800-835-0129 | 8:00 am - 5:00 pm CST (M-F)a year agoHelpful?
Q: yellow wire designation? brown wire designation? blue wire designation?
3 years ago1 Answer
- A: Hi there, Per the vendor: The yellow wire is left stop/turn lights. The brown wire is tail lights. There is no blue wire on the T83B trailer light. the color code is on the bottom of the light where the wires are going into the housing.3 years agoHelpful?
Q: I'm looking for a light that has the license plate light it's square it will be the left one
4 years ago1 Answer
- A: For additional products, please contact techsupport@hopkinsmfg.com.4 years agoHelpful?
Q: What is the wire size? Someone mentioned hooking up the wires according to the diagram -- what diagram? Thanks in advance.
4 years ago1 Answer
- A: For further assistance please call tech support at 8474786295 or email at blazertechsupport@matholdingsinc.com.4 years agoHelpful?
Q: Is this light sealed? I want to use it on a boat trailer and will be submerged from time to time.
5 years ago2 Answers
- A: No they aren’t sealed.5 years agoHelpful?
Q: I purchased a right and left replacement, I wired the right and it works fine, I can't get the left side to work. The left side has an extra wire(white) not sure where it goes, I have the ground (white) attached
7 years ago1 Answer
- A: The white wire is ground and is usually grounded to the frame of the trailer. Make sure the ground point is clean and the connection is good. If the right side is working and the left side is not you can run a jumper wire from the left side ground to the right side, since you know that side is good, and ground it there.7 years agoHelpful?
Q: are bulbs include?
9 years ago1 Answer
- A: Yes, the bulbs are included on the back.9 years agoHelpful?
