The drill guides are like having a drill press for precision alignment, while the tap guides start every hole straight and helps prevent tap breakage! All the guides have a "V-Groove" on the bottom to allow you to work on corners or round surfaces. Each guide is heat treated for durability, allowing a tight tolerance.The guides work great on corners, round and flat surfaces.100% American made quality and a Lifetime Warranty on every guide.

For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.

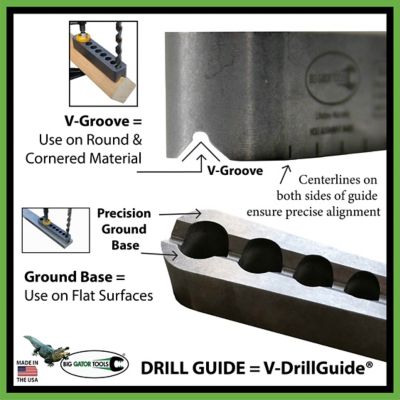

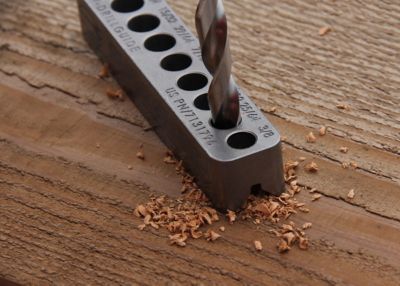

The guides feature a precision ground base to assure stability and accurate perpendicular alignment of taps/drills on flat surfaces

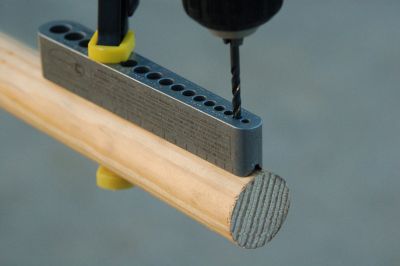

90-degree "V-groove" design allows perpendicular alignment on round and cornered material
100% American-made quality
Steel is heat treated for durability and accuracy
Natural, steel finish
Lifetime Warranty
FREE plastic hanger storage tube
Portable, pocket-sized
Can be used on flat surfaces, round parts and corners

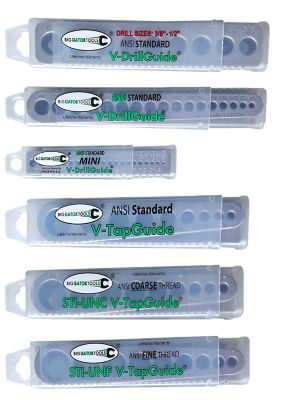

Order includes 7 guides (4 drill guides, 3 tap guides) + 7 plastic hanger storage tubes
Set includes one Standard V-DrillGuide- (33/64"-5/8"), one Standard V-DrillGuide -(3/8-1/2"), one Standard V-DrillGuide -(1/8-3/8"), one MINI V-DrillGuide, one Standard V-TapGuide, one STI-UNC V-TapGuide (coarse threads) and one STI-UNF V-TapGuide (fine threads).
Standard V-DrillGuide - STD3000DGNP: Drill guide is sized for drill bit sizes: 33/64" to 5/8". 8 drill sizes - 1/64" increments. 8 drill sizes include: 33/64, 17/32, 35/64, 9/16, 37/64, 19/32, 39/64, 5/8
Standard V-DrillGuide - STD2000DGNP: Drill guide is sized for drill bit sizes: 3/8 to 1/2". 9 drill sizes - 1/64" increments. 9 drill sizes include: 3/8, 25/64, 13/32, 27/64, 7/16, 29/64, 15/32, 31/64, 1/2".
Standard V-DrillGuide - STD1000DGNP: Drill guide is sized for drill bit sizes: 1/8 to 3/8". 17 drill sizes - 1/64" increments. 17 drill sizes include: 1/8, 9/64, 5/32, 11/64, 3/16, 13/64, 7/32, 15/64 1/4, 17/64, 9/32, 19/64, 5/16, 21/64, 11/32, 23/64, 3/8".
MINI V-DrillGuide - SDGMINI: Drill guide has 21 holes: #10, 21, 25, 29, 30, 1/8", 33, 7/64", 36, 37, 38, 40, 3/32", 43, 45, 47, 5/64, 50, 1/16", 53, 3/64".
Standard V-TapGuide - STD500NP: Standard V-TapGuide has 32 Standard Ground Tap Sizes: 0-80, 1/64, 1-72, 2-56, 2-64, 3-48, 3-56, 4-36, 4-40, 4-48, 5-40, 5-44, 6-32, 6-36, 6-40, 8-32, 8-36, 8-40, 10-24, 10-32, 1/4-20, 1/4-28, 5/16-18, 5/16-24, 3/8-16, 3/8-24, 7/16-14, 7/16-20, 1/2-13, 1/2-20, 5/8-11, 5/8-18". (Tap guide does cover tap sizes 0-80 to 5/8, except #12 and 9/16. 0-80 to #6 have the same size shank, so only one hole size is needed.)
STI-UNC V-TapGuide - STI-UNC100SNP: 10 Unified Coarse Thread sizes: 9/16-12, 1/2-13, 7/16-14, 3/8-16, 5/6-18, 1/4-20, 12/24, 10-24, 8-32, 6-32". This guide is for Screw Thread Insert (STI) type ground taps. This guide is for Heli-coil type ground coarse thread taps.
STI-UNF V-TapGuide - STI-UNF200SNP: 9 Unified Fine Thread sizes: 5/8-18, 9/16-18, 1/2-20, 7/16-20, 3/8-24, 5/6-24, 1/4-28, 10-32, 8-36". The V-TapGuide is for Heli-coil type ground fine thread taps.
Order includes 7 guides (4 drill guides, 3 tap guides)
Drill & Tap Straight, Every Time!
