Arrow Steel Carport 10 x 20 ft. Black/Eggshell, CPH102007

SKU: 131296799
Arrow Steel Carport 10 x 20 ft. Black/Eggshell, CPH102007
Enter Zip Code for price More Info
Product price

Save Up To
See price at checkout More Info
No ratings found

Color: Cream/White

Cream/White

Quantity

TSC of chester #716
78 brookside ave ste 152
chester, NY 10918
(845) 469-1732
TSC of chester #716
78 brookside ave ste 152
chester, NY 10918
(845) 469-1732
Check Availability at Other Stores
Standard Delivery Not Available to
Notice: This item will ship within 0 days.
This product may require up to 0 additional days for order processing prior to shipping.
Change Delivery Location

Item Information

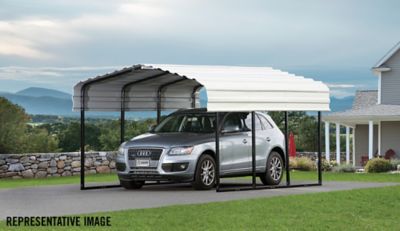

Meet the 10 x 20 ft. Carport from Arrow Sheds: the perfect, more compact all-steel carport fit for smaller vehicles, sedans, outdoor equipment and more. Get reliable shade and shelter with the Arrow Carport - featuring a heavy-duty galvanized steel roof and a all-steel, premium powder coated tube frame. Snow and wind rated, the Arrow Carport is the ultimate shade, shelter and -use carport that's perfect for vehicles, boats, tractors, outdoor picnic areas and much more.

  • Featuring a 2 in. square tube frame, the Arrow Carport provides stability and strength to the unit, increasing it's wind and snow load capability.
  • An all-weather carport that will protect your vehicle or outdoor space all-year long: the Arrow Carport is built to take on even tough weather - winds up to 100 mph, and a snow load of 35 PSF.
  • Built for easier, faster assembly: its unique design features a slip-fit frame connection with pilot holes and self-drilling screws for assembly that's faster, more convenient right out of the box
  • A heavy-duty, galvanized steel roof that's built to last - the 10 x 20 ft. Carport features a 29-gauge painted galvanized steel for corrosion resistance.
  • Roof in an attractive eggshell finish, with a black powder coated steel frame
  • Rounded roof eaves off additional protection from the elements.
  • 10 in. overhang at the roof gables offers additional protection.
  • Comes with a 10-year warranty

Specification Description
Cover Material: N/A
Coverage Area: 191 sq. ft.
Exterior Peak Height: 98.4 in.
Number of Posts: 8
Number of Entrances: 2
Warranty: 10 year limited
CountryofOrigin: Imported
Lowest Clearance: 96.4 in.
Highest Clearance: 98.4 in.
Brand: Arrow
Special Feature(s): N/A
Frame Diameter: 50 mm
Frame Material: Steel
Style: Carport
Opening Height: 98.4 in.
Application/Use: Carport
Care: None
Product Length: 237 in.
Primary Entrance Opening Width: 120 in.
Product Height: 98.4 in.
Product Width: 120 in.
Product Weight: 568 lb.
Part Number: CPH102007
Interior Peak Height: 96.4 in.
Type: Carport
Door Type: N/A
Maximum Wind Resistance: 100 mph
Manufacturer Part Number CPH102007

Can 1 person put this together by himself .

Asked by: Rick 59 plus 10
Hi Rick, We do recommend having at least two people assembling this Carport. If you would like to discuss in more detail feel free to call us at 1-800-932-9344. Thank you
Answered by: ShelterLogicSupport
Date published: 2019-11-13
