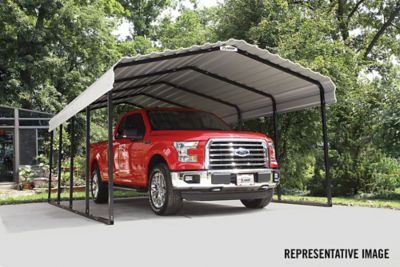

Arrow 12 ft. x 24 ft. Steel Carport, Black/Eggshell
Arrow 12 ft. x 24 ft. Steel Carport, Black/Eggshell
Item # 131328399
$1,439.99
Sale
Was1599.99
Save $160 (10%)
or
or
Get everything you need
Neighbor’s Club Members earn points with purchases.
$1,439.99
Sale
Was1599.99
Save $160 (10%)
or
or
$48/mo.† for 36 months totaling $1728 at 3.99% APR or earn $79 in Rewards+ on this purchase.
This item is available online only
Delivery to
For delivery, this item requires a Big & Bulky handling fee.
Get everything you need
Neighbor’s Club Members earn points with purchases.
Meet the 12 x 24 ft. Carport from Arrow Sheds: The perfect, more compact all-steel carport fit for smaller vehicles, sedans, outdoor equipment and more. Get reliable shade and shelter with the Arrow Carport, featuring a heavy-duty galvanized steel roof and an all-steel, premium powder coated tube frame. Snow- and wind-rated, the Arrow Carport is the ultimate shade, shelter and -use carport that's perfect for vehicles, boats, tractors, outdoor picnic areas and much more. Easily set it up with the slip-fit frame connection, complete with self-drilling screws and pilot holes for faster assembly. The rounded roof eaves and 12 in. overhang help to protect you from the elements.
For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.
- Featuring a 2 in. square tube powder-coated steel frame, which provides stability and strength to the unit
- Built for easier, faster assembly: its unique design features a slip-fit frame connection with pilot holes and self-drilling screws for assembly that's faster, more convenient right out of the box
- Rounded roof eaves and 12 in. overhang at the roof gables offer additional protection from the elements
- A heavy-duty 29-gauge galvanized steel sidewall matches the roof and can be attached to the Carport to provide extra protection from the elements
- The roof and sidewall panels come in an attractive Eggshell finish
- Manufactured in the United States using globally-sourced materials
- Comes with a 10-year warranty
- Snow load is given as reference only and assume a securely anchored frame according to local building codes and ordinances. These have been calculated using combined snow load provisions in accordance with ASCE 7-05.
- This Unit Contains 5 Packages - You will receive 3 Frame Cartons 2 Roof Panel Cartons
| Brand | Arrow |
|---|---|
| Country of Origin | Made in USA |
| Door Opening Height | 82 in. |
| Door Opening Width | 142.0 in. |
| Exterior Material | Steel |
| Features | Galvanized steel for corrosion resistance, Powder-coated to diminish those signs of wear and tear |
| Frame Material | Steel |
| Highest Clearance | 7 ft. |
| Maximum Roof Load | 10045 lb. |
| Maximum Wind Resistance | 100 mph |
| Number Of Cars Supported | 1 |
| Number Of Entrances | 2 |
| Number Of Windows | 0 |
| Product Height | 102.0 in. |
| Product Length | 290.75 in. |
| Product Weight | 678.0 lb. |
| Product Width | 82.0 in. |
| Roof Color | White |
| Roof Material | Metal |
| Storage Capacity | 2198.0 sq. ft. |
| Door Type | Other |
| Warranty | 10 Year Limited |
| Manufacturer Part Number | CPH122407 |
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 10 of 18 Questions
Newest questions
Q: product height and clearance are 2 different heights?? I need 8.5" side clearance
10 months ago1 Answer
- A: Hello, thank you for your question. There is a image included in the product gallery that shows a detailed breakdown of this carports measurements. It measures 8'6" at it's peak and the eave measures 7'.10 months agoHelpful?
Q: Will a full size pick up have enough head room height
a year ago1 Answer
- A: Hello, thank you for your question. There is diagram in the product images showing a detailed breakdown of the product dimensions. We would recommend measuring your truck and comparing it to the carport's measurements to determine compatibility with your vehicle.a year agoHelpful?
Q: Snow load and guage of roof panels?
a year ago1 Answer
- A: Hello, thank you for your question. The roof panels are 29-gauge painted galvanized steel and when properly installed and anchored these Carports can withstand 35 pounds per square foot of snow.a year agoHelpful?
Q: does the 12x24 come with ground anchor kit. What length are the roof panels for the 24 foot?
a year ago1 Answer
- A: This Carport includes all of the necessary earth anchors needed to secure it (our Easy Hook anchors) The roof panels measure 27-1/2" W x 66-1/4" L and 27-1/2"W x 56-3/4"L.a year agoHelpful?
Q: I am looking for a camper cover for a 22 feet long and 12 feet wide
2 years ago1 Answer
- A: Hi Judy. I believe this carport will be a perfect choice. If you visit the photo gallery there is a picture with the dimensions.2 years agoHelpful?
Q: Do you sell a 12x24 Enclosure?
3 years ago1 Answer
- A: Hi there, We do not offer a 12x24 enclosure at this time.3 years agoHelpful?
Q: Do you offer one for wind load of 115 mph, which is required for as permit in our city limits?
3 years ago1 Answer
- A: Hi, We do not, but you may find one on the Arrow/ShelterLogic website.3 years agoHelpful?
Q: can you get sides for this unit
4 years ago1 Answer
- A: For available enclosure kits for this product you would need to contact our customer care line directly.4 years agoHelpful?
Q: Can I get taller side posts to make the inside peak 12 feet tall?
5 years ago1 Answer
- A: For specialty products, please contact the manufacture.5 years agoHelpful?
Q: How heavy is the roof section with roof frame? Can it be detached from side frame?
5 years ago1 Answer
- A: The total weight of the product is 792lbs. Yes, the individual metal roof panels can be detached.5 years agoHelpful?
1 - 10 of 18 Questions
Q&As
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 10 of 18 Questions
Newest questions
Q: product height and clearance are 2 different heights?? I need 8.5" side clearance
10 months ago1 Answer
- A: Hello, thank you for your question. There is a image included in the product gallery that shows a detailed breakdown of this carports measurements. It measures 8'6" at it's peak and the eave measures 7'.10 months agoHelpful?
Q: Will a full size pick up have enough head room height
a year ago1 Answer
- A: Hello, thank you for your question. There is diagram in the product images showing a detailed breakdown of the product dimensions. We would recommend measuring your truck and comparing it to the carport's measurements to determine compatibility with your vehicle.a year agoHelpful?
Q: Snow load and guage of roof panels?
a year ago1 Answer
- A: Hello, thank you for your question. The roof panels are 29-gauge painted galvanized steel and when properly installed and anchored these Carports can withstand 35 pounds per square foot of snow.a year agoHelpful?
Q: does the 12x24 come with ground anchor kit. What length are the roof panels for the 24 foot?
a year ago1 Answer
- A: This Carport includes all of the necessary earth anchors needed to secure it (our Easy Hook anchors) The roof panels measure 27-1/2" W x 66-1/4" L and 27-1/2"W x 56-3/4"L.a year agoHelpful?
Q: I am looking for a camper cover for a 22 feet long and 12 feet wide
2 years ago1 Answer
- A: Hi Judy. I believe this carport will be a perfect choice. If you visit the photo gallery there is a picture with the dimensions.2 years agoHelpful?
Q: Do you sell a 12x24 Enclosure?
3 years ago1 Answer
- A: Hi there, We do not offer a 12x24 enclosure at this time.3 years agoHelpful?
Q: Do you offer one for wind load of 115 mph, which is required for as permit in our city limits?
3 years ago1 Answer
- A: Hi, We do not, but you may find one on the Arrow/ShelterLogic website.3 years agoHelpful?
Q: can you get sides for this unit
4 years ago1 Answer
- A: For available enclosure kits for this product you would need to contact our customer care line directly.4 years agoHelpful?
Q: Can I get taller side posts to make the inside peak 12 feet tall?
5 years ago1 Answer
- A: For specialty products, please contact the manufacture.5 years agoHelpful?
Q: How heavy is the roof section with roof frame? Can it be detached from side frame?
5 years ago1 Answer
- A: The total weight of the product is 792lbs. Yes, the individual metal roof panels can be detached.5 years agoHelpful?
1 - 10 of 18 Questions
Similar Items
Reviews
Most Helpful Favorable Review
5 out of 5 stars.
Great product
5 years ago
Arrived early...Was easy to set up. And has been doing its job since set up.
3 people found this helpful
Show Reviews:
Most Helpful Critical Review
3 out of 5 stars.
open your boxes!
6 years ago
Good Product, went together well, got damaged in shipping, boxes didn't look bad, bent corners on a lot of roof panels.
5 people found this helpful
Show Reviews:
- purchase
- setup
- quality
- instructions
- for rainy weather
- roof
- satisfaction
- installation
1 to 4 of 46 Reviews .
1 – 4 of 46 Reviews
Most Recent
JACOBR
Review 1
5 out of 5 stars.
Quality Product
3 months ago
I purchased my carport and assembled it just before snow fall in upper Michigan 2025. What a pleasure to not have to clear snow and ice off the vehicle every morning. Assembly was straight forward and except for a couple steps in construction, I did it without help. Now I want another one for my boat and tractor.
Originally posted on shelterlogic.com
Josh
Review 1
5 out of 5 stars.
More Realistic Models
8 months ago
Eventually it would be cool to see the actual object constructed. I think at this point with the help of AI, the model could be more realistic.
Originally posted on BILT
Gjxjyx
Review 1
1 out of 5 stars.
No info for anchors
11 months ago
I need help with installing the anchors that were provided and this doesn't show that
Originally posted on BILT
Atlanta GA
Review 1
1 out of 5 stars.
Missing paint, dull self-tappers, issue w delivery
a year ago
Would not buy again
