Arrow 12 ft. x 20 ft. Steel Carport, Glazed
Limited Time Deal
Arrow 12 ft. x 20 ft. Steel Carport, Glazed
Item # 136055099
$1199.99
Sale
Was$1234.99
Save $35.00
or
or
Neighbor’s Club Members earn points with purchases.
$1199.99
Sale
Was$1234.99
Save $35.00
or
or
$100/mo.† suggested payments with 12 Months Financing or earn $59 in Rewards+ on this purchase.
This item is available online only
Delivery to
For delivery, this item requires a Big & Bulky handling fee.Learn more
Neighbor’s Club Members earn points with purchases.

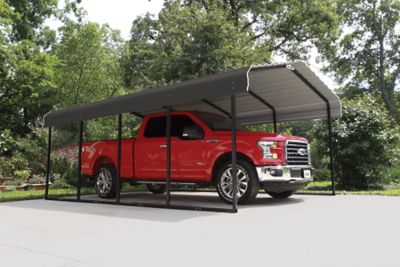

The 12 x 20 ft. Carport from Arrow is a newly re-designed Carport and -use shelter that is wind and snow rated for maximum protection against the elements! Our carport features a galvanized steel roof with horizontal panels, and an industrial steel frame that has been powder coated to resist corrosion and rust. This 12 x 20 ft. Carport has a wind speed rating of 100 MPH and a snow/ground load rating of up to 35 PSF. Rain or shine - it doesn't matter. The Arrow 12 x 20 ft. Carport is a high-quality, steel structure that is perfect for protecting boats, vehicles, tractors and even outdoor picnic areas.
For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.
- Featuring a 2 in. square tube powder-coated steel frame, which provides stability and strength to the unit
- Built for easier, faster assembly: its unique design features a slip-fit frame connection with pilot holes and self-drilling screws for assembly that's faster, more convenient right out of the box
- Rounded roof eaves and 12 in. overhang at the roof gables offer additional protection from the elements
- A heavy-duty 29-gauge galvanized steel sidewall matches the roof and can be attached to the Carport to provide extra protection from the elements
- The roof and sidewall panels come in an attractive Charcoal finish
- Manufactured in the United States using globally-sourced materials
- Comes with a 10-year warranty
- Snow load is given as reference only and assume a securely anchored frame according to local building codes and ordinances. These have been calculated using combined snow load provisions in accordance with ASCE 7-05.
- This Unit Contains 3 Packages - You will receive 2 Frame Cartons 1 Roof Panel Cartons
| Brand | Arrow |
|---|---|
| Country of Origin | Made in USA |
| Door Opening Height | 82 in. |
| Door Opening Width | 142.0 in. |
| Exterior Material | Steel |
| Features | Galvanized steel for corrosion resistance, Powder-coated to diminish those signs of wear and tear |
| Frame Material | Steel |
| Highest Clearance | 7 ft. |
| Maximum Roof Load | 8190 lb. |
| Maximum Wind Resistance | 100 mph |
| Number Of Cars Supported | 1 |
| Number Of Entrances | 2 |
| Number Of Windows | 0 |
| Product Height | 102.0 in. |
| Product Length | 237.0 in. |
| Product Weight | 550.0 lb. |
| Product Width | 82.0 in. |
| Roof Color | Gray |
| Roof Material | Metal |
| Storage Capacity | 1792.0 sq. ft. |
| Door Type | None |
| Warranty | 10 Year Limited |
| Manufacturer Part Number | CPHC122007 |
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 10 of 22 Questions
Newest questions
Q: What about anchors into asphalt?
2 years ago1 Answer
- A: Hi, This carport does not come with anchors,this allows the customer to choose the type of base/anchoring system that works best for their location. However you can purchase anchoring kits directly from Arrow/ShelterLogics at ***SHELTERLOGIC*** Monday – Friday: 8:00 AM – 5:00 PM EST at 1-800-560-8383 or email them on their website at https://www.shelterlogic.com/contact/2 years agoHelpful?
Q: How long is roof sheeting and how many pieces?
2 years ago1 Answer
- A: Hi there, Per the vendor: There are 14 pieces that are 56.75” long x 27.59” wide and 14 pieces that are 66.25” long x 27.59” wide.2 years agoHelpful?
Q: What is the gauge of the legs?
2 years ago1 Answer
- A: Hi Sue C, Per the vendor: The legs are 15 gauge.2 years agoHelpful?
Q: I'm looking for a 10 x 24 with 8 or 9 ft sides
2 years ago1 Answer
- A: Hi, We do not carry a carport with those dimensions. However you may be able to find one directly on Arrow/ShelterLogics website. ***SHELTERLOGIC*** Monday – Friday: 8:00 AM – 5:00 PM EST at 1-800-560-8383 or email them on their website at https://www.shelterlogic.com/contact/2 years agoHelpful?
Q: do you sell anchors for your carports ?
2 years ago1 Answer
- A: Hi, We do not, however you can purchase directly from Arrow/ShelterLogics at ***SHELTERLOGIC*** Monday – Friday: 8:00 AM – 5:00 PM EST at 1-800-560-8383 or email them on their website at https://www.shelterlogic.com/contact/2 years agoHelpful?
Q: Do you sell replacement roof panels for the 12x20x7. I need charcoal grey panels
2 years ago1 Answer
- A: Hi, We do not stock replacement panels, however you may be able to order them directly from ShelterLogic/Arrow at ***SHELTERLOGIC*** Monday – Friday: 8:00 AM – 5:00 PM EST at 1-800-560-8383 or email them on their website at https://www.shelterlogic.com/contact/2 years agoHelpful?
Q: Are additional frame pieces available to purchase?
3 years ago1 Answer
- A: Hi there, We would not carry them, but you can order from ShelterLogics, the manufacturer. I've listed their information below. Monday – Friday: 8:00 AM – 5:00 PM EST at 1-800-560-8383 or email them on their website at https://www.shelterlogic.com/contact/3 years agoHelpful?
Q: Do you have side kits available
3 years ago1 Answer
- A: Hi Skilly, When I searched the Tractor Supply website, I found the following for side kits: Arrow 12 x 20 ft. Carport Enclosure Kit, 7.5 oz. Triple Layer Woven Polyethylene, 10181 and Arrow Enclosure Kit 10 X 15 Ft Carport, 101823 years agoHelpful?
Q: Do the earth anchors work on an asphalt driveway? If so, how?
4 years ago1 Answer
- A: The anchors provided can be used on asphalt but you will have to drill into the asphalt. To discuss in more detail please feel free to call 1-800-932-9344.4 years agoHelpful?
Q: What is the actual Dimensions of the frame on a 12’x20’
4 years ago1 Answer
- A: ARROW CPH122007 29-Gauge Carport with Galvanized Steel Roof Panels, 12' x 20' x 7',4 years agoHelpful?
1 - 10 of 22 Questions
