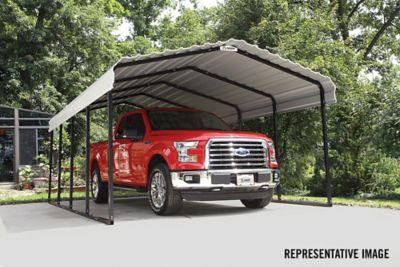

Meet the 12 x 29 ft. Carport from Arrow Sheds: The perfect, more compact all-steel carport fit for smaller vehicles, sedans, outdoor equipment and more. Get reliable shade and shelter with the Arrow Carport, featuring a heavy-duty galvanized steel roof and an all-steel, premium powder coated tube frame. Snow- and wind-rated, the Arrow Carport is the ultimate shade, shelter and -use carport that's perfect for vehicles, boats, tractors, outdoor picnic areas and much more. Easily set it up with the slip-fit frame connection, complete with self-drilling screws and pilot holes for faster assembly. The rounded roof eaves and 12 in. overhang help to protect you from the elements.
For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.
- Featuring a 2 in. square tube powder-coated steel frame, which provides stability and strength to the unit
- Built for easier, faster assembly: its unique design features a slip-fit frame connection with pilot holes and self-drilling screws for assembly that's faster, more convenient right out of the box
- Rounded roof eaves and 12 in. overhang at the roof gables offer additional protection from the elements
- A heavy-duty 29-gauge galvanized steel sidewall matches the roof and can be attached to the Carport to provide extra protection from the elements
- The roof and sidewall panels come in an attractive Eggshell finish
- Manufactured in the United States using globally-sourced materials
- Comes with a 10-year warranty
- Snow load is given as reference only and assume a securely anchored frame according to local building codes and ordinances. These have been calculated using combined snow load provisions in accordance with ASCE 7-05.
- This Unit Contains 7 Packages - You will receive 4 Frame Cartons 3 Roof Panel Cartons
- Built to take on winds up to 100 mph and snow load of 35 PSF
| Brand | Arrow |
|---|---|
| Country of Origin | Made in USA |
| Door Opening Height | 82 in. |
| Door Opening Width | 142.0 in. |
| Exterior Material | Steel |
| Features | Galvanized steel for corrosion resistance, Powder-coated to diminish those signs of wear and tear |
| Frame Material | Steel |
| Highest Clearance | 7 ft. |
| Maximum Roof Load | 11900 lb. |
| Maximum Wind Resistance | 100 mph |
| Number Of Cars Supported | 1 |
| Number Of Entrances | 2 |
| Number Of Windows | 0 |
| Product Height | 102.0 in. |
| Product Length | 344.5 in. |
| Product Weight | 805.0 lb. |
| Product Width | 82.0 in. |
| Roof Color | White |
| Roof Material | Metal |
| Storage Capacity | 2604.0 sq. ft. |
| Door Type | None |
| Warranty | 10 Year Limited |
| Manufacturer Part Number | CPH122907 |
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 10 of 11 Questions
Newest questions
Q: Is it possible to purchase just the tubing frame of this carport without the metal roofing?
3 years ago1 Answer
- A: Hi, Thanks for reaching out. We dont carry just the framing, however you may be able to order from the manufacturer, ShelterLogic. There information is below. ***SHELTERLOGIC*** Monday – Friday: 8:00 AM – 5:00 PM EST at 1-800-560-8383 or email them on their website at https://www.shelterlogic.com/contact/3 years agoHelpful?
Q: Hi, what are the dimensions of the package this item comes in?
4 years ago1 Answer
- A: This is 7 boxes strapped to one pallet. The dimensions are below: 71.1 x 30.3 x 24.9 Weight: 867.94 years agoHelpful?
Q: Are sides available?
6 years ago1 Answer
- A: Hello, Unfortunately, at this time we do not offer an enclosure Kit in this size. To discuss your options please call us at 1-800-932-9344. Thank you6 years agoHelpful?
Q: What is the snow load that this will withstand?
6 years ago1 Answer
- A: Hello, The Arrow Carport 12x29 once anchored to concrete has a Wind Speed of 100 MPH and Snow of 35 PSF. If you have any additional questions please give us a call at 1-800-851-1085 (Press 1) Thank you6 years agoHelpful?
Q: Ground anchors are included with this kit?
7 years ago1 Answer
- A: Hello, This carport comes with our Easy Hook anchors. They can be used in grass, rocky soil, gravel or asphalt. Thank you7 years agoHelpful?
Q: What is the roof clearance at the lowest point? The description says 100" but I am not sure if that is referring to the peak at the center or at the sides.
7 years ago1 Answer
- A: Hello, The roof clearance at the lowest point measures 5 ft. 11 inches. The side wall measures 7 ft. high and the roof peak height measures 8 ft. 6 inches. Thank you7 years agoHelpful?
Q: Is there a way to extend the length of it?
7 years ago1 Answer
- A: Hello, Yes, we do offer extension kits which will extend the length of the carport. For more details please give us a call at 1-800-851-1085 (press 1). Thank you7 years agoHelpful?
Q: What are the options to secure the carport to the ground?
7 years ago1 Answer
- A: Hello, This unit includes a 30" duck bill anchor for each leg. If you are looking for another alternative please give us a call so we can discuss your options further. We are available 7 days a week at 1-800-851-1085 (press 1). Thank you7 years agoHelpful?
Q: Can we get more side coverage?
7 years ago1 Answer
- A: Hello, Yes we do have a enclosure kit for the Arrow Carport. Please give us a call at 1-800-560-8383 8-8 PM EST or weekends 8-4:30 PM EST and our sales representative can assist you further with an enclosure kit. Thank you7 years agoHelpful?
Q: can I get extensions to make it taller , I.E. 12' tall ?
7 years ago1 Answer
- A: Hello, At this time we do not have extensions to increase the height on the Arrow Carport. Thank you7 years agoHelpful?
1 - 10 of 11 Questions
Q&As
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 10 of 11 Questions
Newest questions
Q: Is it possible to purchase just the tubing frame of this carport without the metal roofing?
3 years ago1 Answer
- A: Hi, Thanks for reaching out. We dont carry just the framing, however you may be able to order from the manufacturer, ShelterLogic. There information is below. ***SHELTERLOGIC*** Monday – Friday: 8:00 AM – 5:00 PM EST at 1-800-560-8383 or email them on their website at https://www.shelterlogic.com/contact/3 years agoHelpful?
Q: Hi, what are the dimensions of the package this item comes in?
4 years ago1 Answer
- A: This is 7 boxes strapped to one pallet. The dimensions are below: 71.1 x 30.3 x 24.9 Weight: 867.94 years agoHelpful?
Q: Are sides available?
6 years ago1 Answer
- A: Hello, Unfortunately, at this time we do not offer an enclosure Kit in this size. To discuss your options please call us at 1-800-932-9344. Thank you6 years agoHelpful?
Q: What is the snow load that this will withstand?
6 years ago1 Answer
- A: Hello, The Arrow Carport 12x29 once anchored to concrete has a Wind Speed of 100 MPH and Snow of 35 PSF. If you have any additional questions please give us a call at 1-800-851-1085 (Press 1) Thank you6 years agoHelpful?
Q: Ground anchors are included with this kit?
7 years ago1 Answer
- A: Hello, This carport comes with our Easy Hook anchors. They can be used in grass, rocky soil, gravel or asphalt. Thank you7 years agoHelpful?
Q: What is the roof clearance at the lowest point? The description says 100" but I am not sure if that is referring to the peak at the center or at the sides.
7 years ago1 Answer
- A: Hello, The roof clearance at the lowest point measures 5 ft. 11 inches. The side wall measures 7 ft. high and the roof peak height measures 8 ft. 6 inches. Thank you7 years agoHelpful?
Q: Is there a way to extend the length of it?
7 years ago1 Answer
- A: Hello, Yes, we do offer extension kits which will extend the length of the carport. For more details please give us a call at 1-800-851-1085 (press 1). Thank you7 years agoHelpful?
Q: What are the options to secure the carport to the ground?
7 years ago1 Answer
- A: Hello, This unit includes a 30" duck bill anchor for each leg. If you are looking for another alternative please give us a call so we can discuss your options further. We are available 7 days a week at 1-800-851-1085 (press 1). Thank you7 years agoHelpful?
Q: Can we get more side coverage?
7 years ago1 Answer
- A: Hello, Yes we do have a enclosure kit for the Arrow Carport. Please give us a call at 1-800-560-8383 8-8 PM EST or weekends 8-4:30 PM EST and our sales representative can assist you further with an enclosure kit. Thank you7 years agoHelpful?
Q: can I get extensions to make it taller , I.E. 12' tall ?
7 years ago1 Answer
- A: Hello, At this time we do not have extensions to increase the height on the Arrow Carport. Thank you7 years agoHelpful?
