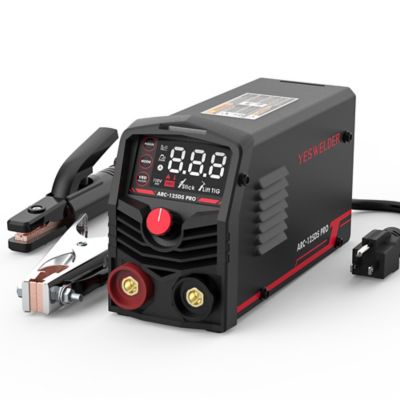

YesWelder 110/125 Amps Hot Start, Arc Force, Digital Display, Lift TIG/Stick 2 in 1 Portable Stick Welder
Online Only
Item # 2092056
Buy a Welder and Get 15% off Welder accessories.
Neighbor’s Club Members earn points with purchases.
Online Only
Item # 2092056
Buy a Welder and Get 15% off Welder accessories.
This item is available online only
Delivery to
37027
Free standard delivery on online footwear & Clothing purchases of $49 and over.
Neighbor’s Club Members earn points with purchases.
ARC-125DS PRO is suitable for beginners, with ideal performance for most 6010, 6011, 6013, and 7018 welding rods. The output current is 20-125A, with easy art starting, and excellent arc stability, very suitable for thin workpieces. This welder is programmed with over-current, overload protection, and temperature control to guarantee safety. The automatic voltage fluctuation compensation enables the welding stable and excellent for stainless steel, mild steel, and other metal materials.WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. ADVERTENCIA: Este producto puede exponerlo a sustancias qumicas que el Estado de California reconoce como causantes de cncer y defectos de nacimiento u otros daos reproductivos. For more information: www.P65Warnings.ca.gov
For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.
Looking for more information on welders? Check out our guide on welding in the product documents section.

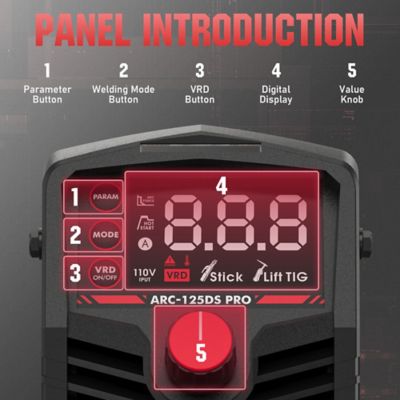

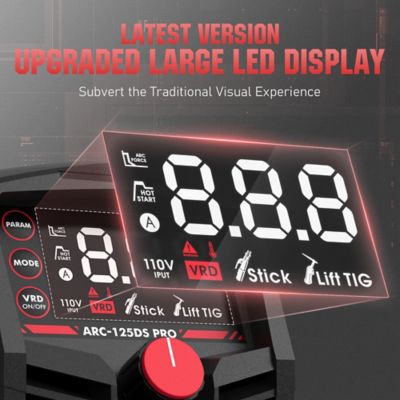

- LED display for easy operation and reading the welding data
- Ideal with most 6010, 6011, 6013, and 7018 welding rods
- Over-current, overload and temperature control protection
- Built in Hot start & Arc force
- Automatic voltage fluctuation compensation function
- Portable and compact design
- Input Voltage: 110V 50/60Hz
- Input Current: 40A
- Output Current: 20-125A
- Rated Duty Cycle: 60%@125A,100%@97A
- Insulation Grade: F
- Protection Degree:IP21S
- Dimension: 19.3*3.7*5.1 inch
- Net Weight: 4.4lbs.
| Brand | YesWelder |
|---|---|
| Country of Origin | Imported |
| AC/DC Stick | AC stick |
| Amperage Adjustments | 20-125A |
| Compatible Metal | Stainless Steel, Other |
| Electrode Cable Length | 9.18 ft. |
| Features | LED display for easy operation and reading the welding data, Ideal with most 6010, 6011, 6013, and 7018 rods, Over-current, overload and temperature control protection |
| Maximum Electrode Size | 3.2 mm |
| Maximum Open Circuit Voltage | 72 V |
| Maximum Welding Amperage | 125A |
| Maximum Material Thickness | 4mm |
| Minimum Amperage Output | 20A |
| Minimum Electrode Size | 1.6 mm |
| Power Cord Length | 9.8 ft. |
| Product Height | 7.48 in. |
| Product Length | 12.2 in. |
| Product Weight | 7.16 lb. |
| Product Width | 4.72 in. |
| Welding Applications | Stick Welding (SMAW) |
| Warranty | 1 year |
| Welder Input Voltage | 110V |
| Welding Applications | Stick Welding (SMAW) |
| Work Cable Length | 9.84 ft. |
| Manufacturer Part Number | ARC-125DS |
Q: I have never welded before using this to weld small things for my garden tractors. Does this use like wire or welding rods or both? And does it come with the ground and everything? Also can I just plug this into my outlet
a month ago- A: Hi Reilly, This welder can only weld with welding electrode. It comes with a ground clamp and an electrode holder for welding jobs. You can use in a 110V outlet.a month agoHelpful?
Q: Does it have a gas line for tig welding.
4 months ago- A: No, the YesWelder ARC-125DS welding machine itself does not have a gas line connection or an internal gas solenoid for TIG welding.4 months agoHelpful?
Q: how many amps does it use
7 months ago- A: The YesWelder ARC-125DS PRO uses an input current of 40 amps when connected to a 110V power source. This is the maximum amperage the machine will draw to produce its maximum output of 125 amps.7 months agoHelpful?
Q: What does lift tig mean ?
10 months ago- A: Hi Sparks, Lift-arc TIG welding is a method for initiating the arc in TIG (GTAW) welding by momentarily touching the tungsten electrode to the workpiece and then lifting it to create the arc. You can purchase a Lift TIG torch and then used on this ARC-125DS PRO.10 months agoHelpful?
Q: What amp breaker do I need to operate welder?
a year ago- A: Hi Bull, Thanks for reaching out, we recommend to use an amp breaker more than 32A, absolutely 40A, 50A or even higher standard would be much safer.a year agoHelpful?
Q: Do all tractor supplies varry the welding rods this welder uses?
a year ago- A: Hi Tim, Thanks for reaching out, we do not supply arc welding rods on Tractor Supply platform. But this 125A arc welder is ideal with most 6010, 6011, 6013, and 7018 welding rods. Thanksa year agoHelpful?
Q: does it come with everything needed for TIG welding?
a year ago- A: Hi Logan, Thanks for reaching out. Have to buy an extra TIG torch for the Lfit TIG function on ARC-125DS PRO. Thanksa year agoHelpful?
Q: How thick of metal can you weld ?
2 years ago- A: Hi Timothy, Thanks for reaching out, ARC-125DS PRO can weld metal part with a thickness under 4mm. Thanks2 years agoHelpful?
Q: Will it work on a 220 20 Amp service
2 years ago- A: Hi Steve, Thanks for reaching out, ARC-125DS can work on a 220V 20Amp service. Thanks.2 years agoHelpful?
