Traveller Winch Control Set for ATV/UTV Winches
Exclusive
Traveller Winch Control Set for ATV/UTV Winches
Item # 129415099
Stocked & Ready
$69.99
Add this item to unlock free delivery!
Get everything you need
Neighbor’s Club Members earn points with purchases.
Exclusive
Traveller Winch Control Set for ATV/UTV Winches
Item # 129415099
Stocked & Ready
$69.99
New Cardmembers earn a $20 Reward‡ with qualifying purchase of $20 or more plus earn 5% in Rewards+ on this purchase. Valid through 11/8/26.
Add this item to unlock free delivery!
Shopping at
Grassland (franklin) TN
Delivery to
Free standard delivery on online footwear & Clothing purchases of $49 and over.
Get everything you need
Neighbor’s Club Members earn points with purchases.

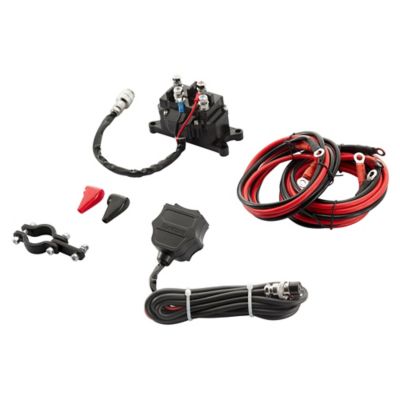

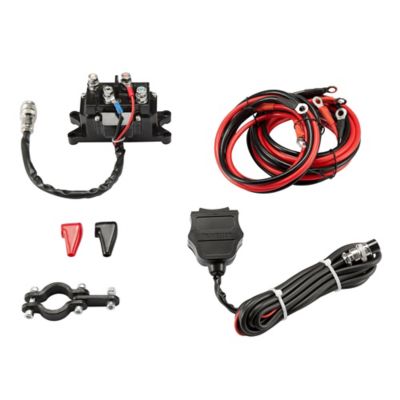

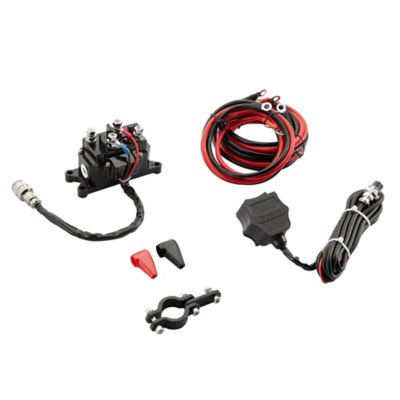

The Traveller Winch Control Set for ATV/UTV Winches features everything you need to control your UTV/ATV winch. This winch includes all wiring, hardware, and controls necessary to operate UTV/ATV, while the design allows for easy and efficient mounting in either a dash mounted location or the handle bars of ATVs and UTVs. Take advantage of the automotive style rocker switch for in-dash applications.
- Designed for use with most UTV/ATV winches up to 4,500 lb. capacity
- Fits Traveller ATV and UTV winches
- Automotive style rocker switch for In-Dash applications
- Mounting bracket included for handle bar mount
- Includes: Rocker Switch with 8.5ft. (2.6m) long wire 1pc, 12V 250A Relay 1pc, Wire to power 9AWG, 6ft.(1.8m) 1set, wire to motor 9AWG, 4.3ft.(1.3m) 1set, Hot dip wire protective sleeve 2pcs
- Operating range of 8.5 ft.
| Brand | Traveller |
|---|---|
| Country of Origin | Imported |
| Compatibility | Traveller ATV/UTV winch |
| Cord Length | Rocker Switch Wire: 8.5 ft.; 9AWG Wire to Power: 6 ft.; 9AWG Wire to Motor: 4.3 ft. |
| Maximum Operating Range | 10 ft. |
| Primary Material | Copper |
| Product Height | 3.15 in. |
| Product Length | 8.66 in. |
| Product Weight | 3.7 lb. |
| Product Width | 8.66 in. |
| Warranty | 1 Year |
| Wired or Wireless | Wired |
| Manufacturer Part Number | CS250A |
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 10 of 34 Questions
Newest questions
Q: Is this compatible with 4600 lb winch
22 days ago1 Answer
- A: No, officially it is not recommended. The Traveller Winch Control Set is explicitly designed and rated for ATV/UTV winches up to a 4,500 lb. capacity. Using it with a 4,600 lb. winch exceeds the manufacturer's specified safety margins20 days agoHelpful?
Q: can you provide the signal description for each wire color?
2 months ago1 Answer
- A: The signal description for a standard Traveller Winch wireless control or replacement contactor/rocker switch setup typically follows a 3-wire or 5-wire configuration. The core control wire color functions are: red for power, black for ground, and yellow/white (or green/blue) for winch direction Control Wire Signal Descriptions Red Wire: Constant or switched 12V Positive Power input (connects to battery positive or ignition-switched source). Black Wire: System Ground (-) / Negative connection. Yellow Wire: Control signal output/input for Winch Out / Extend (energizes the relay to spool line out). White Wire (or Green depending on harness): Control signal output/input for Winch In / Retract (energizes the relay to spool line in) .Blue Wire: Dedicated Antenna wire on wireless receiver boxes, or alternate secondary power/output feed depending on specific plug adapter configurations.2 months agoHelpful?
Q: Is it the switch and wiring or just wiring?
a year ago1 Answer
- A: Includes: Rocker Switch with 8.5ft. (2.6m) long wire 1pc, 12V 250A Relay 1pc, Wire to power 9AWG, 6ft.(1.8m) 1set, wire to motor 9AWG, 4.3ft.(1.3m) 1set, Hot dip wire protective sleeve 2pcs11 months agoHelpful?
Q: Is it compatible with badland 2000 lb winch?
a year ago1 Answer
- A: Fits Traveller ATV and UTV winchesa year agoHelpful?
Q: While this work for a 12,000 pound traveler winçh
a year ago1 Answer
- A: Designed for use with most UTV/ATV winches up to 4,500 lb. capacitya year agoHelpful?
Q: Yes I have power to the controller but nothing coming out to the winch new controller so I hooked it the same way as the old one
a year ago1 Answer
- A: Please contact Customer Service at (888) 376-9601 available Monday-Friday 8am-8pm (EST), Saturday 8am-5pm (EST), so we can better assist you.a year agoHelpful?
Q: Do you have a wireless remote for this Traveller winch control set?
2 years ago1 Answer
- A: Wireless remote SKU#1172307 is compatible with this Traveller winch control set, but need to order separately2 years agoHelpful?
Q: Can I get it delivered to my home
2 years ago1 Answer
- A: Please contact Customer Solutions at (877) 718-6750. Hours of Operation Monday - Saturday 7am-9pm CST Sunday 8am-7pm CST.2 years agoHelpful?
Q: What do you do with the control line of electric lock?
3 years ago1 Answer
- A: Please connect the wire from switch to the control line of electric lock (Positive+) of ATV/UTV, then the switch can control the winch.3 years agoHelpful?
Q: Where does the little red "control line of electric lock" (positive) go?
3 years ago1 Answer
- A: Please check your email for the requested information.3 years agoHelpful?
1 - 10 of 34 Questions
Q&As
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 10 of 34 Questions
Newest questions
Q: Is this compatible with 4600 lb winch
22 days ago1 Answer
- A: No, officially it is not recommended. The Traveller Winch Control Set is explicitly designed and rated for ATV/UTV winches up to a 4,500 lb. capacity. Using it with a 4,600 lb. winch exceeds the manufacturer's specified safety margins20 days agoHelpful?
Q: can you provide the signal description for each wire color?
2 months ago1 Answer
- A: The signal description for a standard Traveller Winch wireless control or replacement contactor/rocker switch setup typically follows a 3-wire or 5-wire configuration. The core control wire color functions are: red for power, black for ground, and yellow/white (or green/blue) for winch direction Control Wire Signal Descriptions Red Wire: Constant or switched 12V Positive Power input (connects to battery positive or ignition-switched source). Black Wire: System Ground (-) / Negative connection. Yellow Wire: Control signal output/input for Winch Out / Extend (energizes the relay to spool line out). White Wire (or Green depending on harness): Control signal output/input for Winch In / Retract (energizes the relay to spool line in) .Blue Wire: Dedicated Antenna wire on wireless receiver boxes, or alternate secondary power/output feed depending on specific plug adapter configurations.2 months agoHelpful?
Q: Is it the switch and wiring or just wiring?
a year ago1 Answer
- A: Includes: Rocker Switch with 8.5ft. (2.6m) long wire 1pc, 12V 250A Relay 1pc, Wire to power 9AWG, 6ft.(1.8m) 1set, wire to motor 9AWG, 4.3ft.(1.3m) 1set, Hot dip wire protective sleeve 2pcs11 months agoHelpful?
Q: Is it compatible with badland 2000 lb winch?
a year ago1 Answer
- A: Fits Traveller ATV and UTV winchesa year agoHelpful?
Q: While this work for a 12,000 pound traveler winçh
a year ago1 Answer
- A: Designed for use with most UTV/ATV winches up to 4,500 lb. capacitya year agoHelpful?
Q: Yes I have power to the controller but nothing coming out to the winch new controller so I hooked it the same way as the old one
a year ago1 Answer
- A: Please contact Customer Service at (888) 376-9601 available Monday-Friday 8am-8pm (EST), Saturday 8am-5pm (EST), so we can better assist you.a year agoHelpful?
Q: Do you have a wireless remote for this Traveller winch control set?
2 years ago1 Answer
- A: Wireless remote SKU#1172307 is compatible with this Traveller winch control set, but need to order separately2 years agoHelpful?
Q: Can I get it delivered to my home
2 years ago1 Answer
- A: Please contact Customer Solutions at (877) 718-6750. Hours of Operation Monday - Saturday 7am-9pm CST Sunday 8am-7pm CST.2 years agoHelpful?
Q: What do you do with the control line of electric lock?
3 years ago1 Answer
- A: Please connect the wire from switch to the control line of electric lock (Positive+) of ATV/UTV, then the switch can control the winch.3 years agoHelpful?
Q: Where does the little red "control line of electric lock" (positive) go?
3 years ago1 Answer
- A: Please check your email for the requested information.3 years agoHelpful?
1 - 10 of 34 Questions
Similar Items
-
-
-
-
Top Rated
-
-
-
-
-
-
-
-
Top Rated
-
-
-
Top Rated
-
Frequently Bought Together
-
-
-
-
-
-
-
Top Rated
-
-
-
-
-
-
-
-
-
Reviews
Customer Images and Videos
- wires
- replacement
- purchase
- returns
- connections
- battery
- quality
- length
1 to 4 of 43 Reviews .
1 – 4 of 43 Reviews
Most Recent
Elgin Texas
Review 1
5 out of 5 stars.
See above
a month ago
This part was not compatible with my winch. I returned it to the store
SweepstakesYes
Georgia
Review 1
4 out of 5 stars.
Good solution to get your switch mounted
a month ago
This solved my issue of needing a dash-mounted rocker switch when the switch included with my Champion winch could only be handlebar-mounted. Kit includes the necessary relay and switch. I did not use the power cables that came with the kit as I was inserting this into an existing installation.
Couple of notes that may be helpful based on reviews (lots of what's-the-red-wire-for's):
The system is designed so that the rocker switch gets low-amp power from the ignition wiring (you may have an accessory harness on your machine to plug this into). That's the little red wire. The switch isn't rated for the full amperage required by the winch. That's the relay's job.
Pressing the switch activates the relay, which allows direct battery power to the winch.
I did find that what the switch thought was in/out was backwards on my setup. Not that it especially mattered, but I swapped the +/- leads from the winch to the relay just to make it right.
Yes, I recommend this product.
BURLINGGTON IOWA
Review 1
5 out of 5 stars.
EXELLENT QUALITY
5 months ago
WIRING HARNESS AN JUCNTION BLOCK MOUNTING WAS SPOT ON HANDLE BAR MOUNT FIT PERFECT AS DID THE SWITCH FOR THE WINCH ALL AN ALL THIS IS A PERFECT SET UP TO RUN ON A QUAD DURABILITY STANDS UP TO THE ELEMENTS WITH OUT WAN ISSUE PERFECT FIT
Yes, I recommend this product.
Northwest Pa
Review 1
5 out of 5 stars.
Great winch Controller
5 months ago
I got the Traveller Winch Control Set for ATV. Ours had stopped working and we use it alot in winter for snow plow on ATV. Was easy to mount where old one was and wiring was easy to hook up to get it working. It works great with my winch and ATV. We needed it right away and son found it.
Yes, I recommend this product.
