Traveller 12V Electric UTV Winch, 4,500 lb. Capacity
$199.99
Traveller 12V Electric UTV Winch, 4,500 lb. Capacity
Exclusive
Traveller 12V Electric UTV Winch, 4,500 lb. Capacity
Item # 1292504
$199.99
or
or
Add a protection plan
Powersport plans are not available in CA.
Neighbor’s Club Members earn points with purchases.
$199.99
or
or
$34/mo.† suggested payments with 6 Months Financing or earn $9 in Rewards+ on this purchase.
Out of stock at or near
Grassland (franklin) TN
Out of stock delivering to
37027
This item is not available
Search Stores
Temporarily unavailable
Add a protection plan
Powersport plans are not available in CA.
Neighbor’s Club Members earn points with purchases.

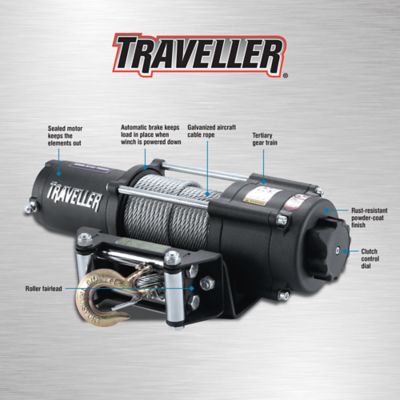

No UTV or ATV is complete without a good winch. The Traveller 12V UTV Electric Winch holds up to 4,500 lb. and has a wired remote and automatic braking action for safety. Comes with 47.6 ft. x 15/64 in. of galvanized aircraft cable. Compatible with UTVs, ATVs, boats and snowplows.
For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.

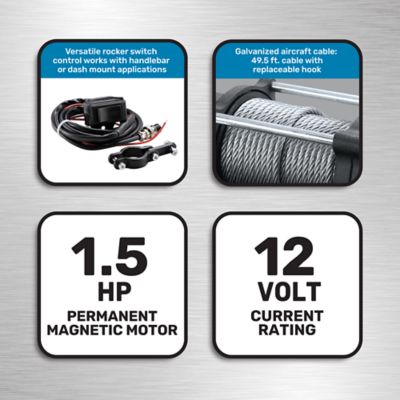

- Permanent magnet DC 12V motor with 1.3 HP output
- Maximum Load Capacity: 4500 lb.
- Automatic braking action
- Free Spooling clutch
- Remote switch with handlebar mount
- Roller fairlead minimizes damage to wire when pulling from different angles
- Universal flat bed winch mounting plate
- Comes with 47.6 ft. x 15/64 in. of galvanized aircraft cable
- Electric Winch is design to work with UTV/ATV's, boats, and snowplows.
- 1/4 in. hook
- Copper, steel, aluminum construction
| Brand | Traveller |
|---|---|
| Country of Origin | Imported |
| Braking Mechanism | Automatic |
| Brand Compatibility | TSC |
| Clutch Type | Free-spooling |
| Engine Brand | N/A |
| Engine Displacement | 1.5 HP |
| Engine Type | Electric |
| Features | Cable Included, Fairlead Included |
| Gear Ratios | 166:1 ratio |
| Handle Length | Switch with 8.5 ft. (2.6 m) lead |
| Horsepower | 1.3 HP |
| Line Capacity | 15/64 in. x 47.6 ft. |
| Line Diameter | 15/64 in. |
| Line Length | 47.6 ft. |
| Line Pull Capacity | 4,500 lb. |
| Line Speed | 4.6 FPM |
| Maximum Operating Range | 44 ft. |
| Maximum Strap Width | 1.1 in. |
| Model Compatibility | UTVs/ATVs |
| Mounting Bolt Length | 6.6 in. |
| Mounting Bolt Width | 3 in. |
| Number of Speeds | 1 |
| Power Type | Electric |
| Primary Material | Steel |
| Product Height | 7.6875 in. |
| Product Length | 18.875 in. |
| Product Weight | 34.85 lb. |
| Product Width | 10.4375 in. |
| Line Type | Cable |
| Voltage | 12V DC |
| Warranty | 1 Year Limited |
| Motor Type | Electric |
| Manufacturer Part Number | EWP4500A |
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 10 of 144 Questions
Newest questions
Q: When will be available
a year ago1 Answer
- A: For inventory inquires please contact Customer Solutions at (877) 718-6750. Hours of Operation Monday - Saturday 7am-9pm CST Sunday 8am-7pm CST.a year agoHelpful?
Q: Why advertise this winch when it's says no longer available???
a year ago1 Answer
- A: For inventory inquires please contact Customer Solutions at (877) 718-6750. Hours of Operation Monday - Saturday 7am-9pm CST Sunday 8am-7pm CST.a year agoHelpful?
Q: What is the amp draw on this unit
2 years ago1 Answer
- A: 1000 lbs. 85 amps 3000 lbs. 150 amps 5000 lbs. 200 amps 6000 lbs. 240 amps 9000 lbs. 310 amps 12000 lbs. 380 amps2 years agoHelpful?
Q: My Traveller 4500 lb winch did not come with roller guide. Can I get one sent to me? It came with mounting plate and all the bolt hardware
2 years ago1 Answer
- A: For assistance, please contact TSC Customer Solutions Center at: 877-718-67502 years agoHelpful?
Q: My switch is no longer working, can I purchase just a new switch?
2 years ago1 Answer
- A: Please contact Customer Service at (888) 376-9601 available Monday-Friday 8am-8pm (EST), Saturday 8am-5pm (EST), so we can better assist you.2 years agoHelpful?
Q: Is there a universal bracket that I can get to mount this to a Kubota tractor? I can't type all that I need in here. The current mount fairlead points down. Is that OK? If not, I need to rotate 90 degrees to have it point forward.
2 years ago1 Answer
- A: 1292504 comes with a mounting plate for mounting winch and fairlead.2 years agoHelpful?
Q: what is the mounting bolt pattern for this winch?
2 years ago1 Answer
- A: Please check your email for the requested information.2 years agoHelpful?
Q: What exactly do I need to do to use a wireless remote with the traveler 4500# utv winch?
2 years ago1 Answer
- A: Kit WSE3R5 or sku: 1172307 *Under 8000 Lbs the pin plugs will need to be cut off and wired in. Please check your email for the instruction of wiring SKU 1172307.2 years agoHelpful?
Q: Can the power be provided through trailer plug
2 years ago1 Answer
- A: Yes, the power can be provided through trailer plug, but need to make sure the power is 12V.2 years agoHelpful?
Q: If I do not have a relay on the 4500 winch, can I use the wireless remote part number SKU#1172307? Is there a wiring diagram for this?
3 years ago1 Answer
- A: Kit WSE3R5 or sku: 1172307 *Under 8000 Lbs the pin plugs will need to be cut off and wired in. Please check your email for the wiring diagram.3 years agoHelpful?
