ToolTuff Direct 19 GPM Log Splitter Pump
Online Only
Item # 2509464
Neighbor’s Club Members earn points with purchases.
Neighbor’s Club Members earn points with purchases.
Take care of logs with help from the ToolTuff Direct 19 GPM Log Splitter Pump. This 2-stage log splitter pump is a high-flow, OEM-grade hydraulic replacement pump, delivering 19 GPM (gallons per minute) flow rate, making it ideal for various log-splitting and hydraulic applications. Designed to fit a wide range of log splitters. Its 2-stage mechanism allows for faster cycle times and higher pressure capabilities even with a smaller engine, providing 85% efficiency for applications such as log splitters, presses, clamping units, and compactors. With a 6-month warranty and excellent customer service support, this pump is a reliable choice for enhancing equipment performance.
Looking for more information on log splitters? Check out our guide on log splitter types in the product documents section.
- Shaft: 1/2 in
- Inlet port: 1 in
- Outlet port: 1/2 in NPT (Do NOT use an orb type o-ring fitting)
- Shaft Length: 1.5 in
- Minimum 9 HP or larger gas engine, direct drive only, horizontal shaft (can be mounted vertical or horizontal)
- For use with open center hydraulic systems only
- First Stage: 16.5 GPM @ 650 PSI
- Second Stage: 3.6 GPM @ 2500 PSI
- Maximum pressure: 4000 PSI
- Bolt circle: 2.83in.
- 4 holes spaced 2 on center
- Mounting hole diameter: .344in.
- Rotation is clockwise (looking from the motor to the pump /shaft face)
| Brand | ToolTuff Direct |
|---|---|
| Country of Origin | Imported |
| Amperage | 0 Amp |
| Cycle Time | 0 sec |
| Engine Displacement | 0cc |
| Fuel Tank Capacity | 0 gal. |
| Horsepower | 0 hp |
| Hydraulic Capacity | 19 GPM |
| Log Splitter Features | Hydraulic |
| Log Splitter Maximum Log Length | N/A |
| Log Splitting Force | N/A |
| Maximum Log Diameter | 0 in. |
| Maximum PSI | 4,000 PSI |
| Engine Brand | N/A |
| Operational Orientation | Horizontal and Vertical |
| Power Type | Hydraulic |
| Primary Material | Aluminum |
| Product Height | 3 in. |
| Product Length | 7 in. |
| Product Weight | 6.9 lb. |
| Product Width | 7 in. |
| Recommended Oil Type | Aw32 |
| Splitter Type | Hydraulic |
| Start Type | None |
| Tire Size | 0 in. |
| Torque | 0 ftlb |
| Warranty | 6 months |
| Manufacturer Part Number | 31-254 |
Q&As
Similar Items
-
-
Top Rated
-
-
-
-
-
-
Top Rated
-
-
-
-
Items You May Like
-
-
Top Rated
-
-
-
-
-
-
Top Rated
-
Top Rated
-
-
-
Top Rated
Customers Also Bought
-
-
Top Rated
-
-
Top Rated
-
-
Top Rated
-
-
Top Rated
-
Top Rated
-
Top Rated
-
-
Reviews

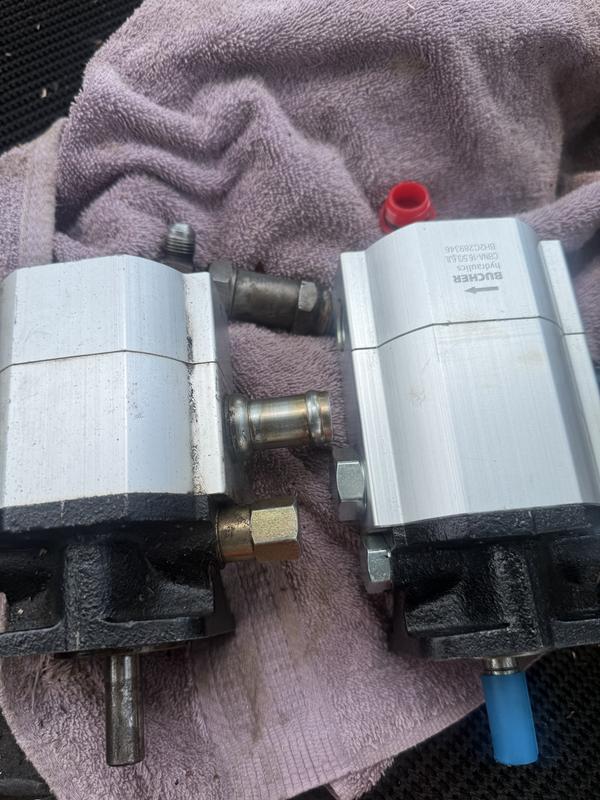

Horrible management
